Elegoo Neptune 3 Max is a 3D Printer designed for professionals and enthusiasts looking for high-quality and reliable printing performance. This FDM (Fused Deposition Modeling) printer boasts a large build volume of 420x420x500mm³, which allows users to print large objects with ease. It features a high-precision auto bed leveling system that ensures consistent printing quality, while the dual-gear direct extruder and dual lead screw drive provide accurate and stable filament feeding. One of the standout features of the Elegoo Neptune 3 Max is its removable capacitive touchscreen, which allows for easy operation and control of the printer. The screen also provides real-time information on the printing process, including printing status and filament usage. In addition, the printer supports various filament materials such as PLA, ABS, TPU, and PETG, giving users the freedom to experiment with different materials and create unique and intricate designs.
The dual-gear direct drive extruder with SUS303 stainless steel gears has adjustable extrusion force and a 3:1 reduction ratio, ensuring smoother filament feeding and steady & accurate printing while drastically decreasing nozzle clogging and gear jumping issues. Print PLA, PETG, ABS, and flexible filaments like TPU with ease.
Elegoo Neptune 3 Max has the largest ever build volume of 420x420x500 mm³, giving you plenty D printing room to let your creativity run wild, whether for printing larger models or in batches.
The non-contact high precision sensor scans 63 spots on the hotbed automatically to correct for unevenness and faults in the printing platform. To obtain a nice first layer, you can also use the hand-twist knobs under the build platform for supplementary levelling.

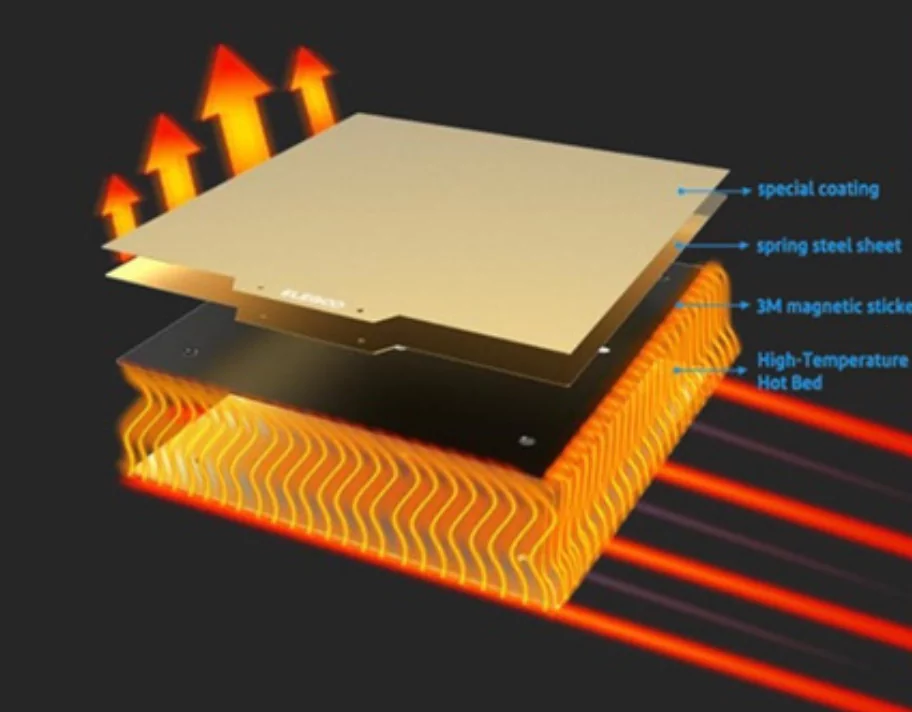

The magnetic PEI printing plate is composed of spring steel sheet and has a particular coating that allows the printed models to stick very firmly to the build plate while also allowing them to be readily removed by slightly bending the spring steel sheet.
The Neptune 3 Max includes a 420-watt high-performance heat bed that can swiftly heat up to 100 °C.
The 4.3-inch removable magnetic capacitive touch screen can be operated by hand or mounted to the base, and it includes a print model preview function that allows you to preview the model picture while printing and monitor the printing progress, as well as support for multi-language freely switching. There is also a drawer tool box on the machine base to store printer tools such as Allen wrenches and nozzle attachments.
The Neptune 3 Max's X/Y/Z/E axes are powered by high-precision stepper motors thanks to the STM 32-bit quiet motherboard. This significantly reduces the volume during printing to less than 50dB. The Z-axis gantry is constructed with two lead screws and dual-motor drive for more stable and precise print head movement, and the double tie rod structure increases the stability of the Z-axis gantry.
Product Model
Neptune 3 Max
Printing Volume
420x420x500 mm³
Modeling Technology
FDM(Fused Deposition Modeling)
Extruder Type
Dual-gear Direct Drive
Z-axis
Double Lead screws and motors
Bed Leveling
63-point Auto Mesh Leveling
Platform Material
PEI Magnetic Platform
Throat Tube
Titanium Alloy Throat Tube
Touch Screen
4.3-inch Capacitive Screen
Cooling Fans
Dual-sided Cooling Fans
LED
LED Light Bar
Power
500W (PFC)
Bed Temperature
100oC
Material
PLA/PETG/TPU/ABS (up to 260 degrees)
Resume Printing
Yes
Filament Detection
Yes
Printing Speed
30-80mm/s
Nozzle Temperature
260oC
Connectivity
microSD card, USB Type A
Interface
Color touch screen, removable
Machine Weight
17.7 KG
