Voltera Nova PCB Printer

The All-in-One Desktop Printer for PCB Prototyping and More

Discover the power of the Voltera Nova Printer - a compact, user-friendly PCB printer designed for electronics enthusiasts and professionals alike. With its easy-to-use software, intuitive interface, and precise printing capabilities, the Voltera Nova is the perfect tool for creating custom circuit boards and prototypes in-house. Explore the possibilities and take your electronics projects to the next level with the Voltera Nova Printer.

Voltera Nova PCB Printer details

Features Of Voltera Nova

Direct-ink-write dispensing simplifies research and development

  • No tooling:
    Change designs on the fly and iterate without the use of screens or stencils, minimising delays and costs.
  • No waste:
    Print only what is required, preserving important resources.
  • No cleanup:
    The material is kept contained throughout the printing process, making cleaning and handling easier.
  • Iteration time is reduced by 90%.
  • Material prices were decreased by 96%.
Voltera Nova PCB Printer has Direct-ink-write dispensing simplifies research and development

Investigate new avenues using high-resolution, closed-loop dispensing

  • Expanded material possibilities:
    A wide variety of suitable viscosities enables improved performance and material properties.
  • Risk reduction:
    Validate designs and materials in the lab before moving into production using scalable printing methods.
  • Repeatable results:
    With integrated closed-loop pressure feedback and temperature-controlled dispensing, you can achieve consistency.
  • Line width of 100 µm.
  • Viscosity range: 1,000 - 1,000,000 cps.
Voltera Nova comes with Resume Print Function
Voltera Nova PCB Printer comes with Large Build Volume

With a big, customizable print area, you can adapt to any application.

  • Substrates that are rigid:
    To accommodate rigid surfaces with any outline, the provided hardware screws into the mounting grid.
  • Substrates that are compliant:
    The porous titanium vacuum table provides consistent suction to hold flexible and soft materials in place.
  • Solutions that can be customized:
    The mounting grid characteristics can be used to create application-specific fixturing.
  • Print area: 220 mm x 300 mm
  • Mounting grid: 40 mm x 40 mm, M5

Integrated computer vision ensures print accuracy

  • Errors in registration should be avoided:
    A wide variety of With augmented reality overlay, precisely place and align patterns.
  • enhance print quality:
    Validate designs and materials in the Print quality is improved by using an AI-enabled flow calibration technique.
  • Reporting should be simplified:
    Capture still images for examination, measurement, and recordkeeping.
  • Resolution: 17 µm/pixel
  • Image size: 1920 x 1080
Voltera Nova comes with 2.8 Inch Touchscreen

User-friendly interface

  • Easy to use:
    The browser-based app that comes with it has guided processes, in-app walk-through videos, and user profiles.
  • Central library of materials:
    Explore, generate, and manage material profiles for the best print settings.
  • Access to support:
    Connect with Voltera support immediately via live, in-app chat.
  • There is no need for any downloads.
  • Software updates are performed automatically.
Voltera Nova Matrix Automatic Levelling

Nova Anatomy

Module ports

Kinematic couplings and locking levers are used by the modular interface to locate and hold modules in place.

Voltera Nova PCB Printer Module ports
Voltera Nova PCB Printer Module ports

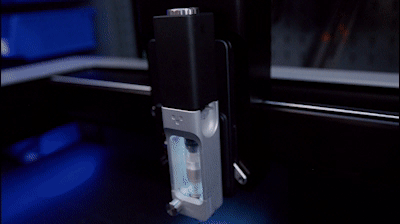

Smart Dispenser

Pressure sensing is used by the Smart Dispenser to control material flow.

Voltera Nova PCB Printer Smart Dispenser
Voltera Nova PCB Printer Smart Dispenser

Smart Probe

Creates a full height map of the substrate. Maintaining a consistent print height requires an accurate height map.

Voltera Nova PCB Printer Smart Probe
Voltera Nova PCB Printer Smart Probe

What's in the box?

  • 1x Voltera Nova
  • 1x Smart Dispenser
  • 1x Smart Probe
  • 1x Nozzle Wrench
  • 4x 225 μm Nozzle
  • 8x 150 μm Nozzle
  • 4x 100 μm Nozzle
  • 4x UV Blocking Cartridges
  • 4x Clear Cartridges
  • 1x Conductive Ink
  • 1x WiFi-Dongle
  • 1x Power Cable
  • 1x Power Adapter
  • 4x Anchor Mount
  • 4x Swivel Mount
  • 4x Thumbscrews
  • 3x pressure sensor
  • 1x Ethernet Dongle
  • 4x Luer Coupler
  • 3x Tip Cap
  • 16x Pistons
  • 1x Ethernet Cable
Voltera Nova PCB Printer box contain

Applications Of Voltera Nova

Voltera Nova PCB Printer comes with RFID Tag

RFID Tag

Substrate

Paper

Printed material

Copprint LF301 Nano Copper Ink

Nozzle size

Nordson EFD 0.004" Optimum chamfered tip

Print time

~48 min

Ceramic PCB

Substrate

Alumina

Printed material

NovaCentrix HPS-FG57B Silver Flake Ink
NovaCentrix HPR-059 Carbon Ink

Nozzle size

Subrex 150 µm Micro Precision Nozzle

Print time

~35 min

Voltera Nova PCB Printer Ceramic PCB
Voltera Nova PCB Printer comes with Strain Gauge

Strain Gauge

Substrate

FR4

Printed material

NovaCentrix HPR-059 Carbon Ink

Nozzle size

Subrex 150 µm Micro Precision Nozzle

Print time

~15 sec

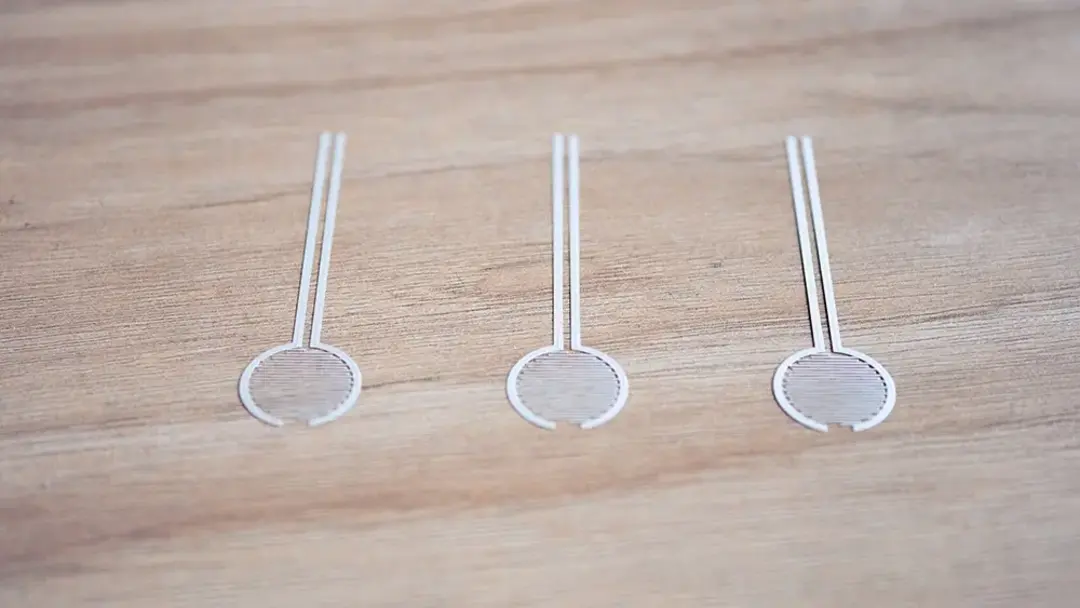

Electrodes on Glass

Substrate

Glass microscope slide

Printed material

Creative Materials EXP2656-186 Ink

Nozzle size

Nordson EFD 0.004" Optimum chamfered tip

Print time

~5 min

Voltera Nova PCB Printer Electrodes on Glass
Voltera Nova PCB Printer comes with Force Sensitive Resistor Sensor

Force Sensitive Resistor Sensor

Substrate

PET

Printed material

ACI RD0142A Conductive Ink

Nozzle size

Subrex 100 µm Micro Precision Nozzle

Print time

~20 min

Flexible hybrid electronics Circuis

Substrate

Kapton

Printed material

ACI RD0142A Conductive Ink

Nozzle size

Nordson EFD 0.004" Optimum chamfered tip

Print time

~48 min

Voltera Nova PCB Printer Flexible hybrid electronics Circuis

Technical Specifications

Voltera Nova PCB Printer technical specifications

Size

675 mm x 605 mm x 345 mm

Weight

35 kg (77 lbs)

Print area

220 mm x 300 mm

Communication/connectivity

1-USB-A 2.0, 1-USB-A 3.0, Ethernet, WiFi

Step resolution

2.5μm (X) x 7μm (Y) x 1.25μm (Z)

XY tool positioning accuracy

+/- 15μm

Connectivity

1x USB-A 2.0, 1x USB-A 3.0, Ethernet, WiFi⁴.

File formats

Gerber, SVG

Interface

Browser-based web app

Camera resolution

17μm/pixel

Tool slots

2

Substrate thickness

Up to 30 mm²

Syringe capacity

Up to 2.5 mL

Alignment and registration

8 MP Camera

Power requirements

350 W at 120 VAC/240 VAC (120 V/60 Hz, 230 V/50 Hz)
