Portable 3D Scanner
The Creality CR-SCAN 01 3D Modelling Scanner uses an innovative large-scale alignment algorithm to assure automated matching without the need for manual grid alignment, calibration, or the usage of markers.

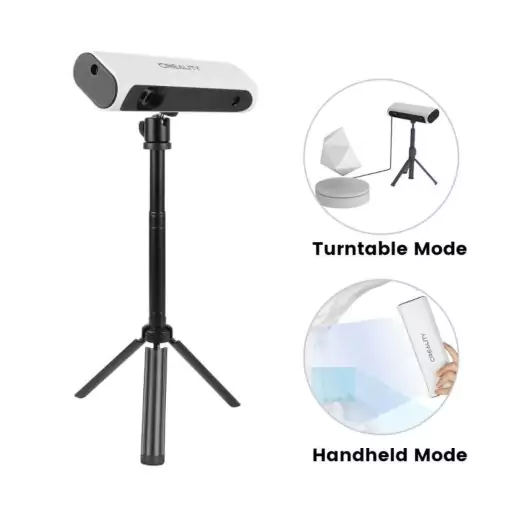

The CR-Scan 01 3D Scanner is a tool for 3D Scanning of real-world objects. A single scan might be as large as 378 x 536 mm. The turntable enables effortless scanning of the object from any side, while the tripod ensures stability and the proper working angle. 3D models that can be generated on 3D printers can be produced with the Scanner.
Mobile scanning is more adaptable and allows for scanning of objects of various sizes without the need to identify specific points. To create a more full model, turntable and tripod are used. One-click automatic scanning is also supported.
Recognition of structural and colour features forms the foundation of an advanced, high-precision alignment algorithm. It offers very high object scanning accuracy. Marker points are not necessary for the matching process.
Automatic matching without the need of marker points is ensured by an intelligent broad range alignment algorithm.
Even scanning large objects with high precision scanning, accuracy of up to 0.1 mm, can ensure high-precision details. The scanning is quicker and more fluid, with a breadth that is 1.5 times that of a conventional Scanner. High-precision matching algorithm based on color and structure features, realizing multiple scan automatic synthesis function.
Excellent printing results with 24bit high-fidelity color restoration.
The manual scanning mode enables scanning of objects of various sizes (without marker points). For work outdoors and with larger objects, this is extremely helpful.
For 360° scans, use the tripod and turntable modes. Pushing a button will activate the intelligent omnidirectional scanning function, which is very simple to use.
Even in low light, CR-Scan 01 3D Scanner enables object scanning. This makes it possible to represent things that are placed in dimly lit spaces.
With only one click, 3D object scan files created with the CR-Scan 01 may be loaded into the Creality Cloud. The scanned object can then be transmitted to Creality 3D printers for printing.
Material
ABS
Input
100-240V
Frame Rate
10fps
Scanning Area
536 * 378mm
Accuracy
0.1mm
Resolution
0.5mm
Output Format
obj, stl
Scanning Distance
400-900mm (Distance from the scanned object to the scanning lens)
Scanning Range(Handheld)
0.3m-2m (Distance from the scanned object to the scanning lens)
Scanning Range(Turntable)
0.3m-0.5m (Distance from the scanned object to the scanning lens)
Date Interface
USB 3.0
Operating Temperature
aviation-grade aluminum
Scanner Size
280x120x550mm
Scanner Weight
800g/ 28.2oz
Package Size
350x305x125
Package Weight
2520g
