Anycubic Photon Mono M5s 3D Printer | 3Ding India | 3D Printers & 3D Printing Services in India
Anycubic Photon Mono M5s 3D Printer
anycubic logo

Anycubic Photon Mono M5s 3D Printer

High-Speed Resin 3D Printer | Print Up to 3X Faster

Experience the cutting-edge evolution of 3D Printing with the Anycubic Photon Mono M5s 3D Printer. Featuring a groundbreaking 10.1-inch monochrome LCD screen with an astonishing resolution of up to 11520*5120, this printer sets a new standard for precision and detail. Its innovative auto-leveling solution revolutionizes LCD 3D Printing, ensuring unparalleled accuracy and convenience, making it a game-changer in the world of consumer-grade resin printing.

Anycubic Photon Mono M5s 3D Printer details

Features Of Anycubic Photon Mono M5s 3D Printer


Anycubic Photon Mono M5s 3D Printer 12K Elegant Details

12K Elegant Details

The Photon Mono M5s's 10.1-inch screen has a 12K resolution and a 19-micron X accuracy, with printing details as precise as a hair thickness.

Leveling-Free, A big step towards printing success

The fit between the printing platform and the floating levelling module is detected by a mechanical sensor on the cantilever arm, and it is automatically adjusted as a result of the detection results. The likelihood of levelling failure is eliminated, and printing success rate is increased.

Anycubic Photon Mono M5s 3D Printer comes with Leveling-Free,
                            A big step towards printing success

3 Times Faster

The Photon Mono M5s can print at an average speed of 105mm/h*. It employs a high-speed release film that can reduce the release force and increase lifting speed while lowering the release height, resulting in a high printing success rate.

Anycubic Photon Mono M5s 3D Printer comes with 3 Times Faster

Self-Checking Device

It quickly identifies and resolves hardware issues by performing numerous tests on the connectivity of the exposure screen, mechanical detection module, and motor operation status. This helps to achieve printing success by ensuring smooth and non-destructive connections.

Anycubic Photon Mono M5s 3D Printer comes with Self-Checking Device

Resin Detection

The resin detection mode is set to intelligently determine whether the amount of resin in the vat satisfies the printing requirements before printing in order to decrease printing failures brought on by insufficient resin. Reduces print errors caused by resin shortages.

Anycubic Photon Mono M5s 3D Printer comes with Resin Detection

Monitoring the Printing process

Reminders for common failures like bottoming-out printing will be provided by the prints status detection function, significantly reducing resin and time waste. It can also deftly identify the root causes of errors and make useful recommendations to guarantee effective printing.

Anycubic Photon Mono M5s 3D Printer comes with Monitoring the Printing process

Anycubic App

You can instantly experience 3D Printing with one touch using well-known sliced models/STL's. The control of your printing process is ensured by task viewing.

Anycubic Photon Mono M5s 3D Printer works with Anycubic App

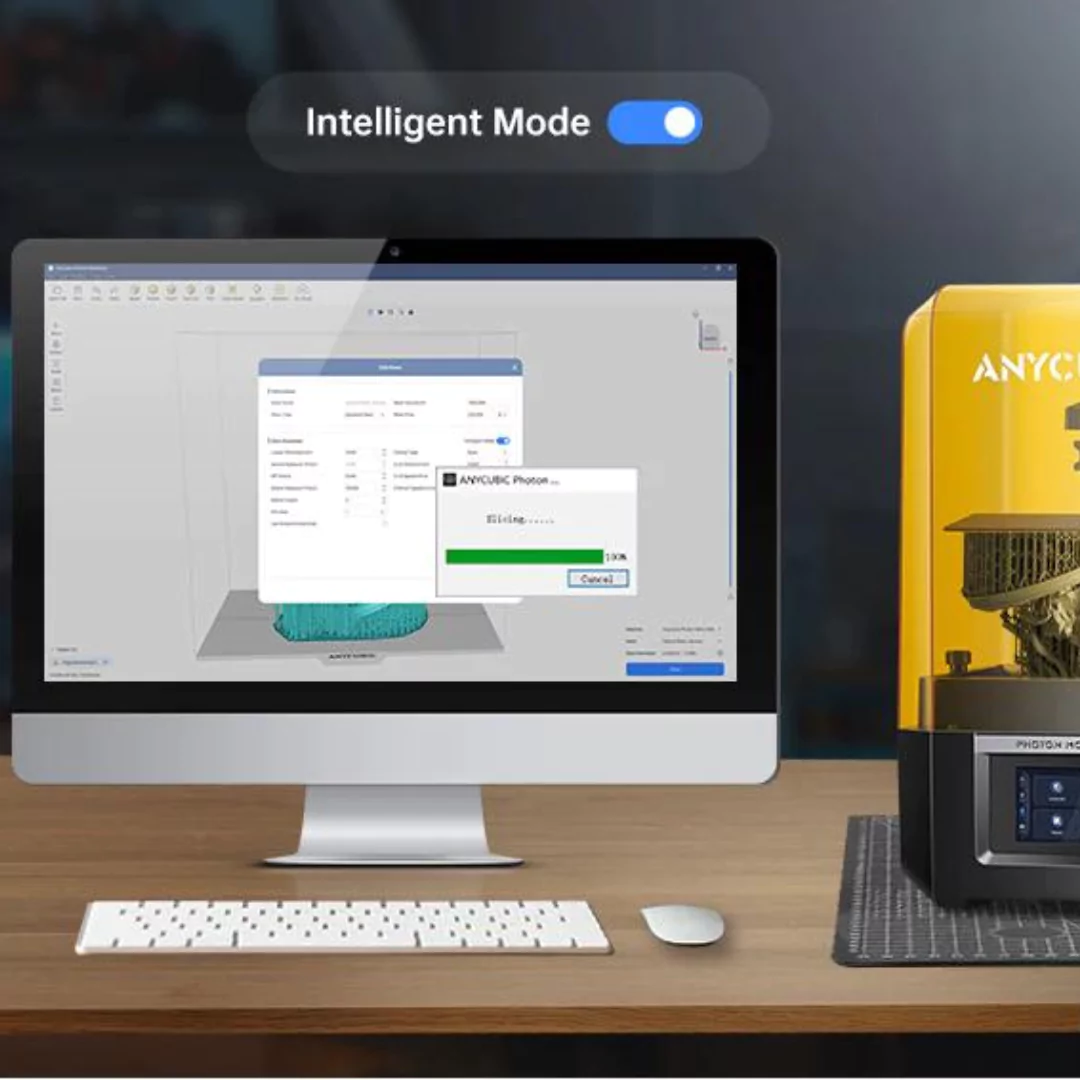

Advanced Mode

The "Intelligent Mode" option in the brand-new Anycubic Photon Workshop 3.1 slicing programme can intelligently match exposure parameters to model details and size, lowering the risk of printing failure brought on by incorrect parameter settings.

Anycubic Photon Mono M5s 3D Printer comes with Advanced Mode

Innovative Support Algorithm

The stability and success rate of printing are further enhanced by the new support algorithm, which also lessens model surface damage and facilitates the removal of supports and bottom valves. Completely increase the punching and slicing speeds, making slicing simpler to use.

Anycubic Photon Mono M5s 3D Printer works with Innovative Support Algorithm

What's in the box?


Anycubic Photon Mono M5s 3D Printer Box Contain
Anycubic Photon Mono M5s 3D Printer Box Contain
  • Photon Mono M5s 3D Printer
  • Resin Vat
  • Print Platform
  • Scraper
  • Gloves
  • Mask
  • USB Flash Drive
  • Tool Kit
  • Instuction Manual
  • Funnel
  • Anti-Scratch Film Kit
  • Power Adapter
  • Leveling Paper

Samples


Anycubic Photon Mono M5s review-1
Anycubic Photon Mono M5s review-2
Anycubic Photon Mono M5s review-3
Anycubic Photon Mono M5s review-1
Anycubic Photon Mono M5s review-2
Anycubic Photon Mono M5s review-3

Technical Specifications


Anycubic Photon Mono M5s 3D Printer technical specifications

Machine Weight

8.9kg

Printing volume

5.4L

Average Printing Speed

With high speed resin - 105mm/hr. or 4.13 in./hr.
With general resin - 70mm/hr. or 2.76 in./hr.

Machine Dimensions

460*270*290mm(HWD)

Printing Dimensions

200x218x123mm(HWD)

Machine Leveling

Leveling-free

Light Source

LED matrix UV light source

Z Axis

Double liners with 10 μm

Resin Vat

Unibody design with scale lines

Exposure Screen

10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance
2,000 hours typical lifespan

Build Platform

Laser engraving aluminum alloy

Control Panel

4.3" TFT touch-control

Removable Cover

Effectively blocks UV radiation

Oversized Protection Film

Replaceable anti-scratch film

Power Supply

100W rated power

Data Input

USB Type-A 2.0 WIFI
