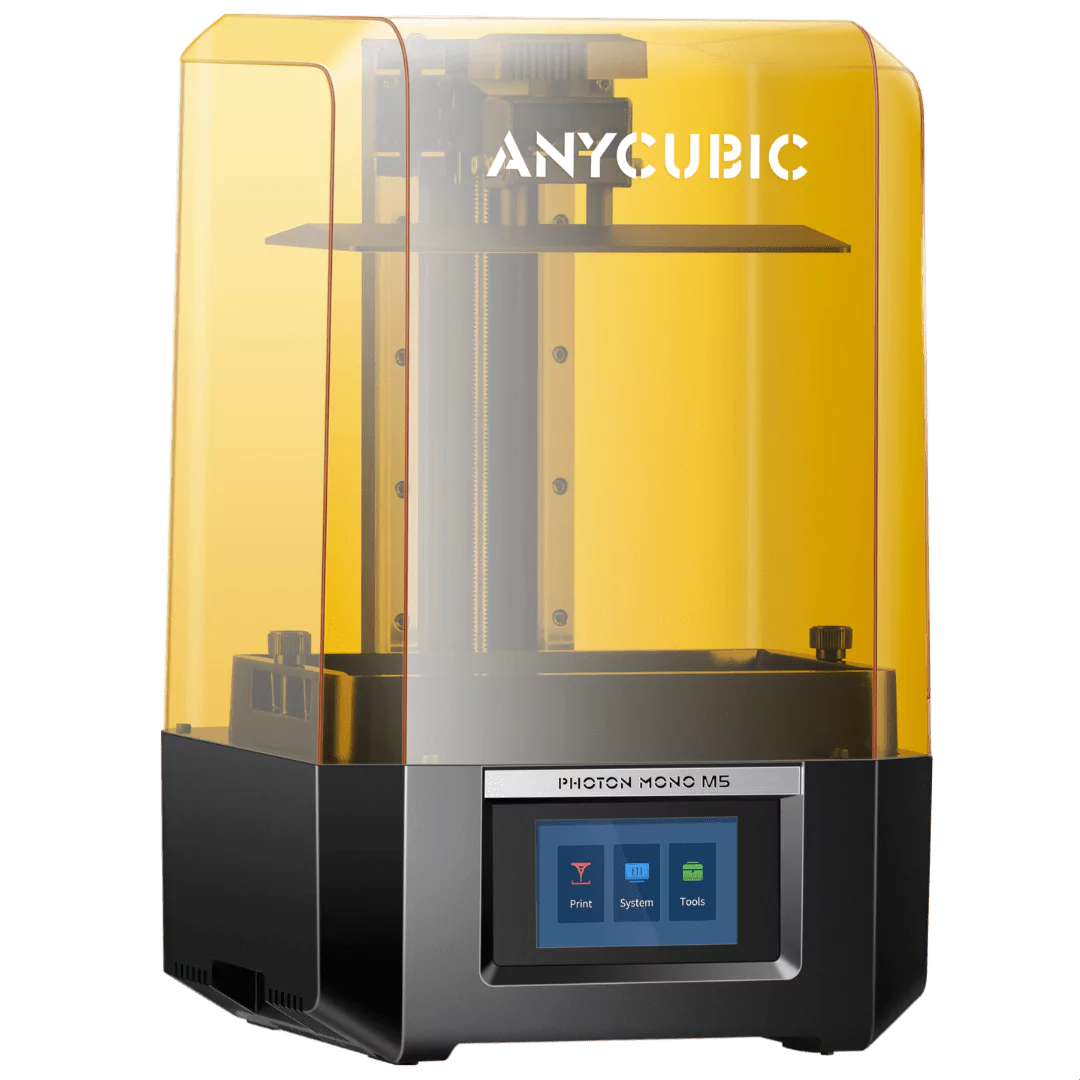

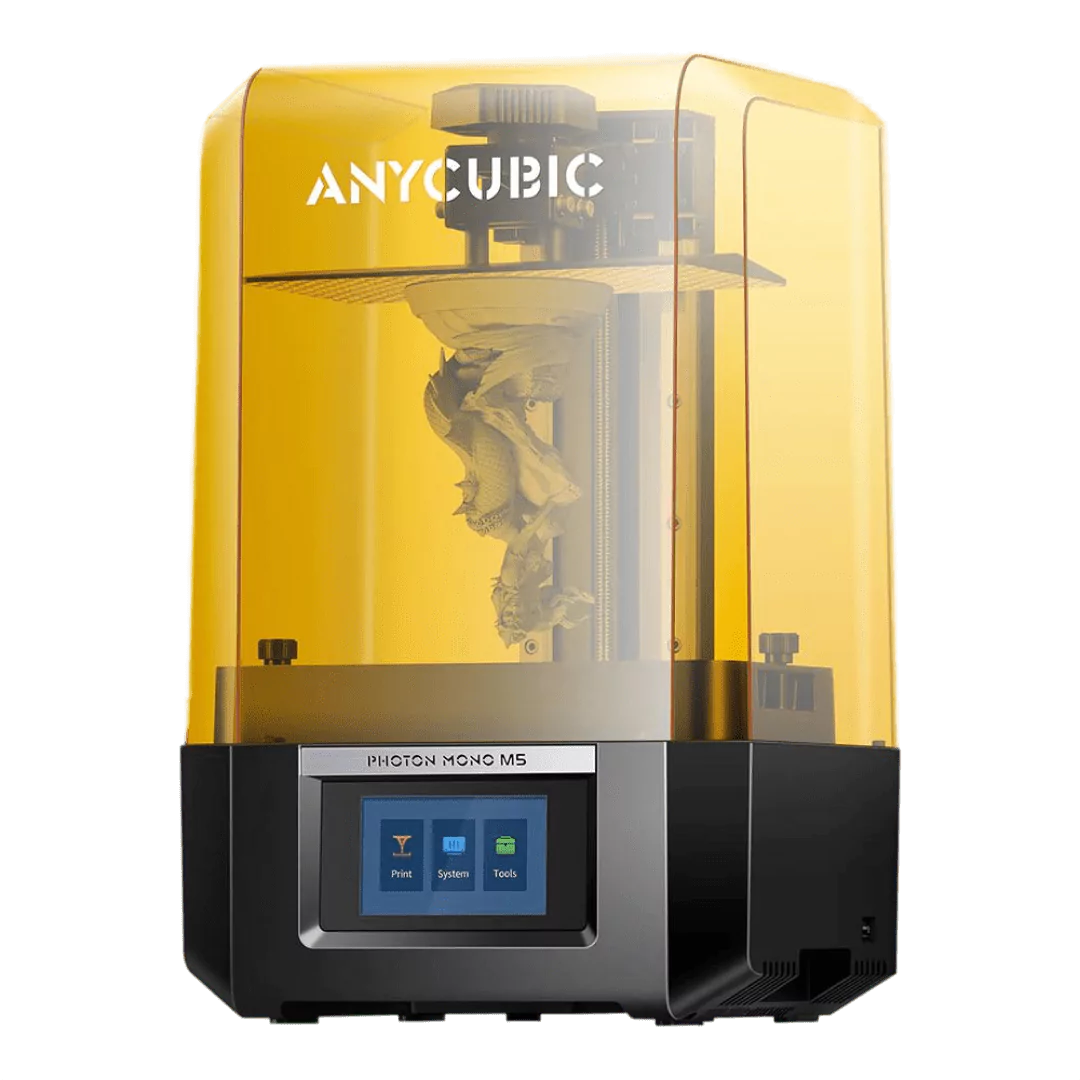

Anycubic Photon Mono M5 3D Printer
12K Resin Printer for Greater Precision and Detail
12K Resin Printer for Greater Precision and Detail
The Anycubic Photon Mono M5 3D Printer boasts a range of impressive features that contribute to its exceptional printing capabilities. With its 10.1-inch monochrome LCD screen featuring a high resolution of 11520 x 5120, and a horizontal pixel size as fine as 19 μm, this printer ensures the utmost precision in reproducing even the most intricate details, down to the thickness of a single strand of hair. Moreover, the printer's upgraded Workshop 3.1 software enhances the slicing experience, enabling you to achieve optimal results. The Anycubic Photon Mono M5 also offers a generous printing area, with dimensions of 200 x 218 x 123mm (height, width, depth), allowing you to bring your creative visions to life on a larger scale.
The first monochrome LCD screen with a 10.1-inch size, 11520*5120 resolution, and a horizontal pixel size of 19 m to offer printing details as precise as a hair thickness is found in the Photon Mono M5. The model's edges are distinct and well-defined thanks to the contrast ratio of 480:1.
Using well-known sliced models/STL's, you can instantly experience 3D Printing with a single touch. Task viewing ensures control over your printing procedure.
The new support algorithm improves printing stability and success rate, reduces model surface damage, and makes the support and bottom valve easier to remove. Realise one-click repair of damaged models, vastly improve punching and slicing speeds, and make slicing easier to use.
Using the laser-engraving process for the printing platform results in a flatter build plate than sandblasting platforms, which can effectively improve model adhesion, reduce the situation of the printing model falling off and warping, and greatly improve printing success rate.
Adopt a high-stability and precision dual linear rails lead screw Z axis in conjunction with a high-wear-resistant POM clearance nut to ensure precise Z-axis micron-level operation without shaking, effectively eliminating layer grain and displaying the beauty of details.
Anycubic Photon Mono M5 can give each layer with 90% light homogeneity and 27,320 lux power density thanks to the matrix-like arrangement of 15 strong LED lights. This allows for quick Printing.
Machine Weight
8.6kg
Printing volume
5.4L
Printing Speed
20-50mm/hr. or 0.78-1.97in./hr.
Machine Dimensions
460*270*290mm(HWD)
Printing Dimensions
200x218x123mm(HWD)
Machine Leveling
4-point manual leveling
Light Source
LED matrix UV light source
Z Axis
Double liners with 10 μm
Resin Vat
Unibody design with scale lines
Exposure Screen
10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance
2,000 hours typical lifespan
Build Platform
Laser engraving aluminum alloy
Control Panel
4.3" TFT touch-control
Removable Cover
Effectively blocks UV radiation
Oversized Protection Film
Replaceable anti-scratch film
Power Supply
100W rated power
Data Input
USB Type-A 2.0 WIFI
