Elegoo Mars 4 DLP 3D Printer
Desktop Resin 3D Printer
Desktop Resin 3D Printer
The Elegoo Mars 4 DLP 3D Printers is a desktop resin 3D Printer designed for high-quality and precise printing. It offers ultra-quiet printing operation, ensuring a peaceful working environment. With a service life of 20000+ hours, this printer is built to last and provide long-term reliable performance. One of the standout features of the Elegoo Mars 4 is its ultra-low power consumption, making it an energy-efficient choice. This not only helps in reducing electricity costs but also promotes sustainability. In terms of printing capabilities, the Elegoo Mars 4 offers a printing size of 132.8x74.7x150mm (5.22x2.94x5.9 inches), providing a decent build volume for various projects. It utilizes Digital Light Processing (DLP) technology along with UV resin (405nm wavelength) to achieve high-resolution prints with fine details and smooth surfaces. The printer is equipped with a 5.5-inch touchscreen display for easy navigation and control. It supports various file formats including STL, OBJ, and AMF, and can be connected to a computer or network via USB, Ethernet, or Wi-Fi for seamless file transfer and printing.
The Elegoo Mars 4 DLP 3D Printer uses TI (Texas Instruments) DLP technology to direct and concentrate the 405nm beam onto the bottom of the resin tank with up to 95% light uniformity. Tempered glass effectively reduces light diffusion and stray light interference by replacing traditional LCD screens with up to 95% light transmittance. Meanwhile, the full-gray anti-aliasing algorithm greatly reduces jagged edges, resulting in a smoother and more delicate model surface.
The DLP projector has a service life of 20,000+ hours, which is ten times longer than the 2,000 hours lifespan of an LCD screen, which means you will save a lot of money on maintenance costs for replacing your LCD printer's screen.
With approximately 1/7 the energy consumption of LCD printers, the 12W ultra-low operating power is energy-saving and environmentally friendly. Because lower power consumption generates less heat, there is no need for a cooling fan to dissipate heat, lowering print noise below 48 dB.
The Z-axis linear rail has been thickened from 15mm to 20mm, effectively reducing the vibration amplitude during Z-axis movement and the layer pattern of printed models for improved final print results. Build plate with sandblasted surface and strong adhesion to improve printing success rate.

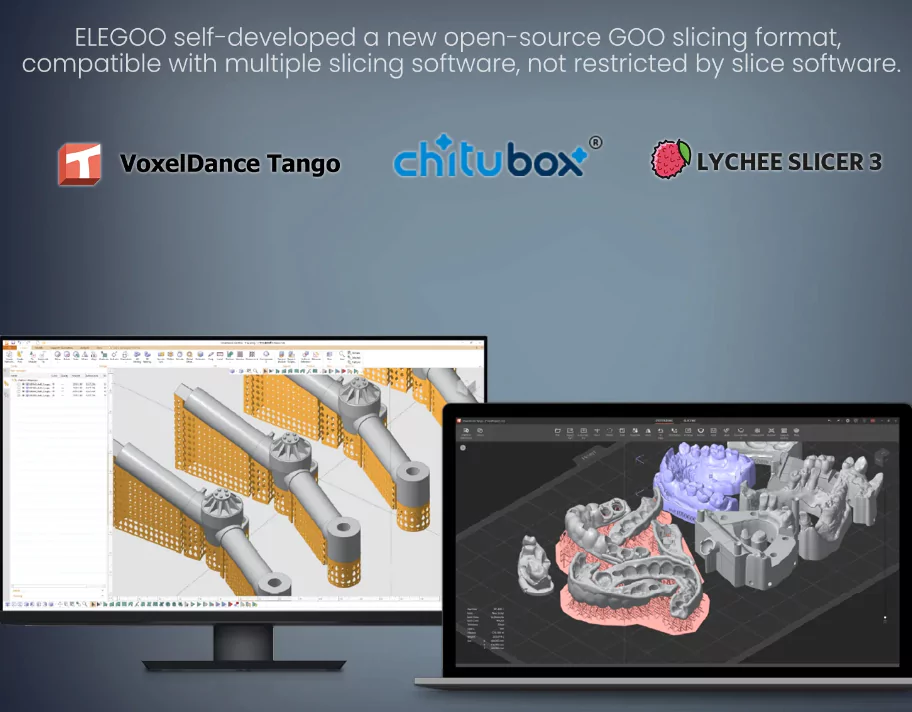

There are three printing modes available: static mode, dynamic mode (including smooth and high-speed mode), and high-speed mode. In dynamic mode, the slicing software adjusts the printing speed based on the cross-sectional size of the printed model to reduce the impact of the release force and thus improve printing efficiency. Furthermore, Elegoo self-developed a new open-source GOO slicing format that is fully compatible with multiple slicing software.
To create a refreshing printing environment, the USB-powered air purifier with built-in activated carbon can absorb and filter resin odour. Alternatively, you can opt for Elegoo's upcoming first large air purifier (210*247*410mm) designed specifically for the photocuring field, which can remove up to 95% of VOCs. (This item must be purchased separately.)
Build Volume
132.8x74.7x150mm
Printing Technology
Digital Light Processing (DLP)
File Format
STL, OBJ, AMF
Light Intensity
Up to 4mw/cm2
Light Uniformity
Up to 95%
2K Projector
With 2560 x 1440 voxels
XY Resolution
52 Microns
Printing Speed
70mm/H
Dimensional Accuracy
±0.05mm
Minimum Aperture
0.2mm
Minimum Cylinder
0.25mm
Service Life
20,000+ hours
Compatible Software
Third-party Slice Software, Such as CHITUBOX and Lychee Slicer.
Material
Resin
