Creality CR-10 S5 3D Printer
creality logo

CR-10 S5

Large Scale And Affordable 3D Printer

Creality CR-10 S5 3D Printer details

Creality CR-10 S5 is the Large Scale and Affordable 3D Printers. It Has a huge build volume and a solid mechanical design. It can produce Printing outputs and handle complicated Printing operations. Your 3D Printing experience will be improved by the Printer's intuitive UI and advanced components.

Features Of CR-10 S5


Creality CR-10 S5 comes with large build volume

Large Build Volume

The CR 10-S5 features a 500mm X 500mm X 500 mm large build space. Despite looking simple, it may be used to build complex and large prototypes.

Smooth and Stable Printing

CR-10 S5 3D Printer is designed for dependability and excellent output. It runs smoothly thanks to XYZ aluminium V-slot bearings. Additionally, it has an overlong extrusion clamp, a high-quality synchronous belt, and aviation connectors.

Creality CR-10 S5 results Smooth and Stable Printing

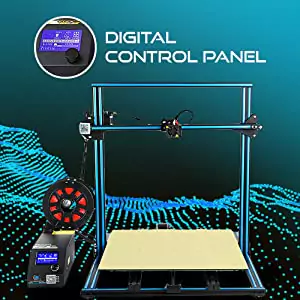

Digital Control Panel

CR-10 S5 3D Printer comes with a digital control panel that makes using it simple. In order to accommodate the demands of modifying the Printing size and specifications, it is isolated from the frame rather than being combined with it.

Creality CR-10 S5 comes with Digital Control Panel

MK 10 Extruder

A MK 10 filament extruder built into the Printer is intended to Print more material without jamming. Since this extruder is composed of brass, it is more durable and capable of retaining heat.

Creality CR-10 S5 comes with MK 10 Extruder

Filament Sensor

The built-in filament sensor in this Printer can identify when the filament is running low. It has a mechanical sensor that detects the data that pauses Printing so that it can be resumed later.

Creality CR-10 S5 comes with Filament Sensor feature

Easier to Remove

This 3D Printer's bed can be easily removed, making it easier to remove the created model off the bed. For increased stability while printing, it also features a filament spool that can be mounted over the console.

Creality CR-10 S5 3D Printer bed can be easily removed

Advantages Of CR-10 S5


CR-10 S5 comes with Rigid Couplings

Rigid Couplings

CR-10 S5 comes with Brass Nozzle

Brass Nozzle

CR-10 S5 comes with Aviation Connector

Aviation Connector

CR-10 S5 comes with Long Extrusion Clamp

Long Extrusion Clamp

CR-10 S5 comes with High Quality Power Supply

High Quality Power Supply

CR-10 S5 comes with High Quality Timing Belt

High Quality Timing Belt

CR-10 S5 Compatible Materials


ABS
PLA
WOOD
TPU

What's in the box?


Creality CR-10 S5 box contain
  • Bottom Frame
  • Vertical Frame
  • Power supply Box
  • Build Plate Tape
  • Power Line
  • Tie
  • Cutting Nipper
  • Wrench
  • Screw
  • Revoming Tool
  • Filament Spool holder
  • Power Line
  • USB Cable
  • Teflon Tube
  • SD Card
  • Limit Switch
  • Z axis Stator
  • 0.4mm Nozzle
  • Nozzle Clearer
  • 200g Filament

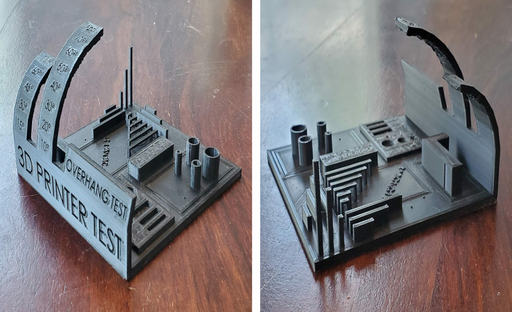

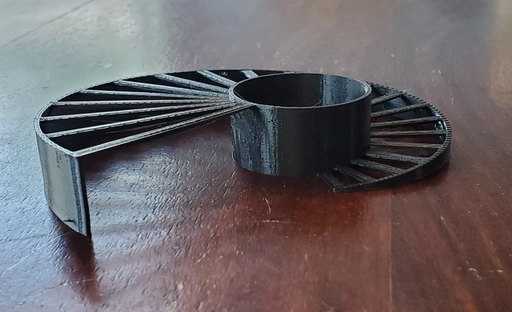

Samples


Creality CR-10 S5 review1
Creality CR-10 S5 review2
Creality CR-10 S5 review3
Creality CR-10 S5 review4
Creality CR-10 S5 review5
Creality CR-10 S5 review5

Technical Specifications


Creality CR-10 S5 technical specifications

Molding Technology

FDM(Fused Deposition Molding)

Build Size

500×500×500mm

Print Resolution

100-400microns

Nozzle Diameters

0.4mm

Nozzle Count

ONE

Max. Nozzle Temp

255℃

Max. Print Bed Temp

60℃

Printing Materials

PLA/ABS/TPU/wood/carbon fiber/Copper

Filament Dia

1.75mm

XY-axis Precision

0.012 mm

Z-axis Precision

0.004 mm

Max Print Speed

100mm/s

Supported files

Stl, obj, g-code

Connectivity

USB and SD Card

Machine size

690 x 800 x 715 mm

Machine weight

14.6kg

Power requirement

Input:110V-220V,
Output: 12V
Power:270W

Recommended slicer

Cura, Simplify3D, Repetier-Host
