Elegoo Mercury XS Bundle Washing And Curing Machine
anycubic logo

Mercury XS Bundle Washing And Curing Machine

The Elegoo Mercury XS Bundle Washing and Curing Machine combines the benefits of washing and curing functions to streamline the entire post-processing process. Both the double row high-power 405nm lamp beads and the bottom light source beads, as well as the simultaneous working mode, larger washing basket, intelligent time control, 360° rotating curing platform, and automatic Anti-UV System, can help you solidify the model you want, achieving your exact requirements.

Elegoo Mercury XS Bundle Washing And Curing Machine details

Features Of Elegoo  Mercury XS Bundle Washing and Curing Machine

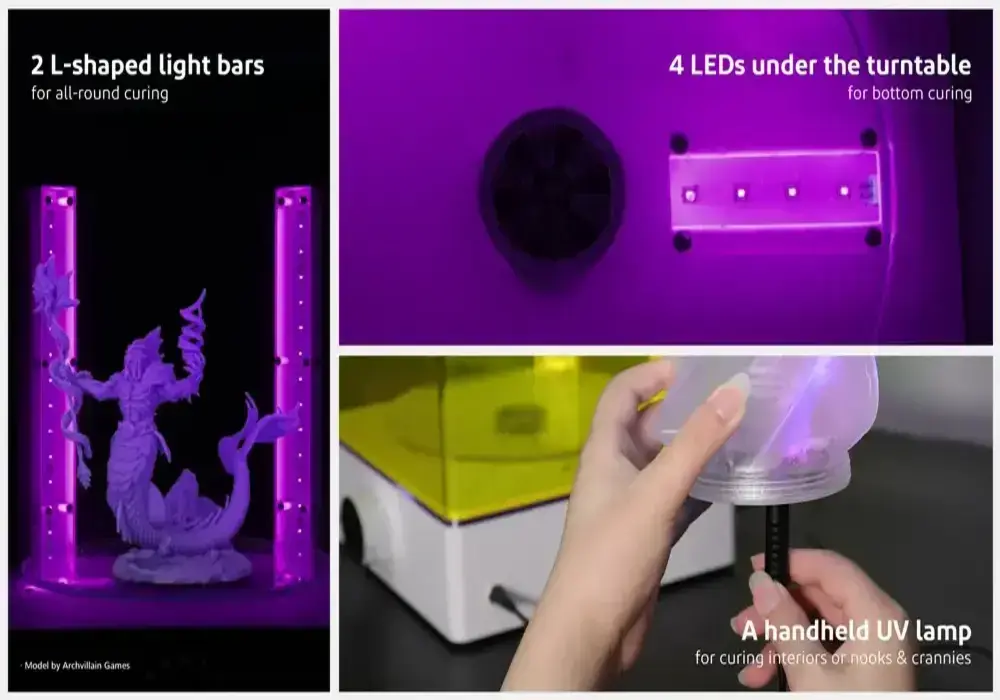

A Real Thorough Curing

2 adjustable L-shaped light bars and 4 additional LED lights under the 360° moving turntable along with Fresnel lens emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all directions. A handheld UV light is also available to cure the interior or nooks and crannies of 3D printed parts for a smoother surface and excellent print quality; it is also ideal for curing assembled models.

Elegoo Mercury XS Bundle Washing And Curing Machine features

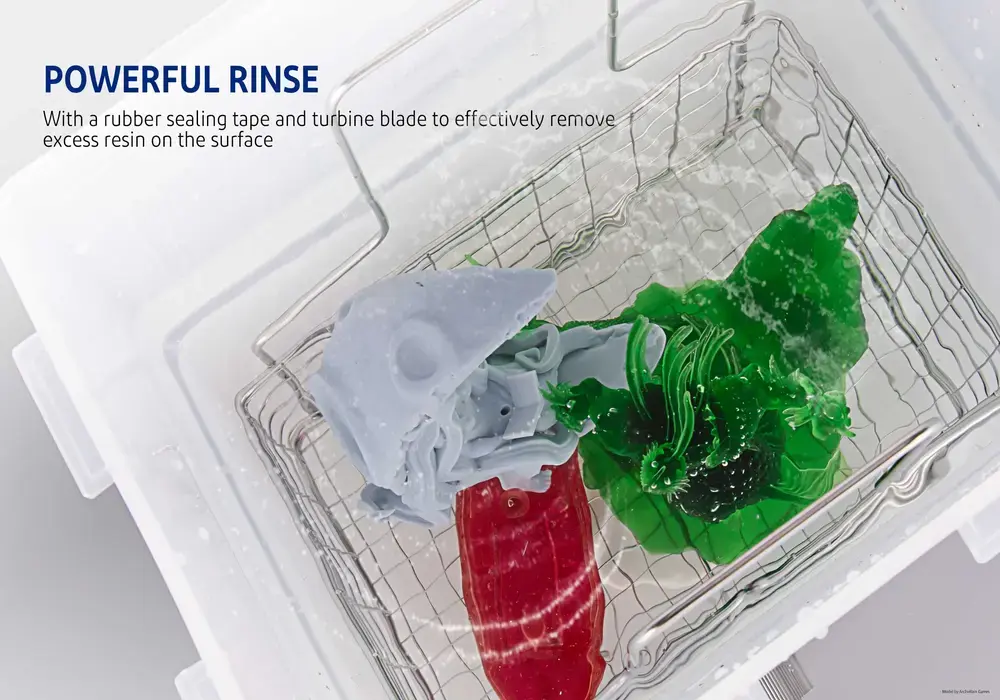

Powerful Rinse

The 7.5-liter water container is equipped with a rubber sealing film and a strong turbine blade to effectively remove excess resin from the surface of models while preventing liquid splashing and volatilization. There are two cleaning methods: basket washing (removing the model and placing it in the basket for cleaning) and suspension washing (hanging the printing platform directly on the cleaning rack for cleaning).

Elegoo Mercury XS Bundle Washing And Curing Machine features
Elegoo Mercury XS Bundle Washing And Curing Machine features

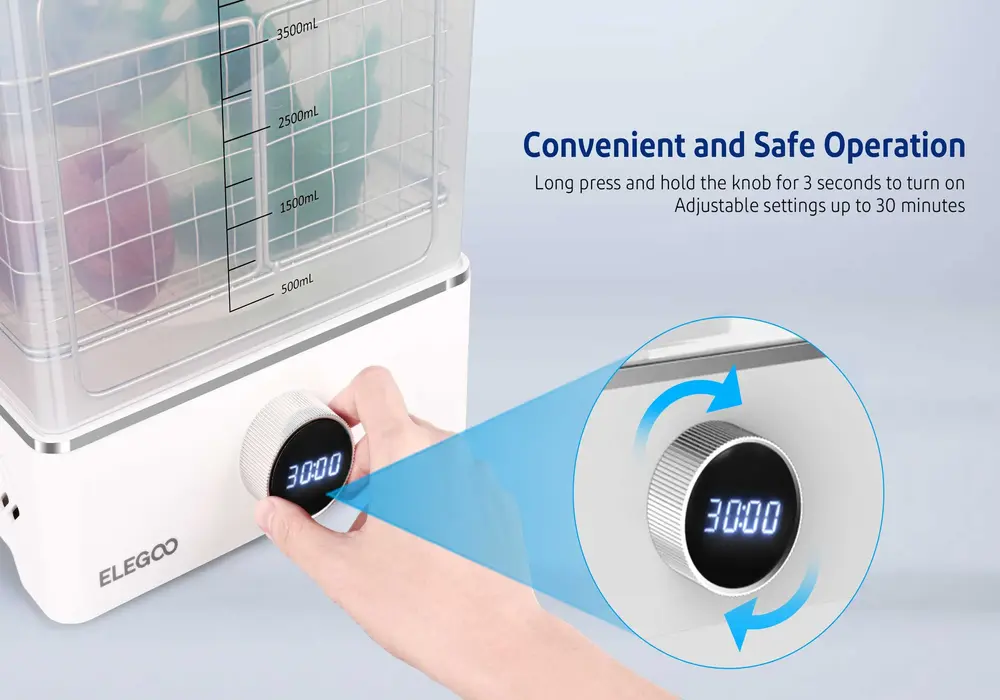

Convenient Operation Settings

To turn on, turn the knob, press and hold for 3 seconds; the action is simple, as is the interface. The maximum adjustment duration is 30 minutes, and the cleaning and curing times can be changed to meet your specific demands.

UV Protection Cover

The curing machine's translucent cover can block up to 99.9% of UV rays, improving resin solidification and protecting your eyesight during the curing process. When you remove the cover, a safety feature turns off the UV lamps.

Elegoo Mercury XS Bundle Washing And Curing Machine features
Elegoo Mercury XS Bundle Washing And Curing Machine features

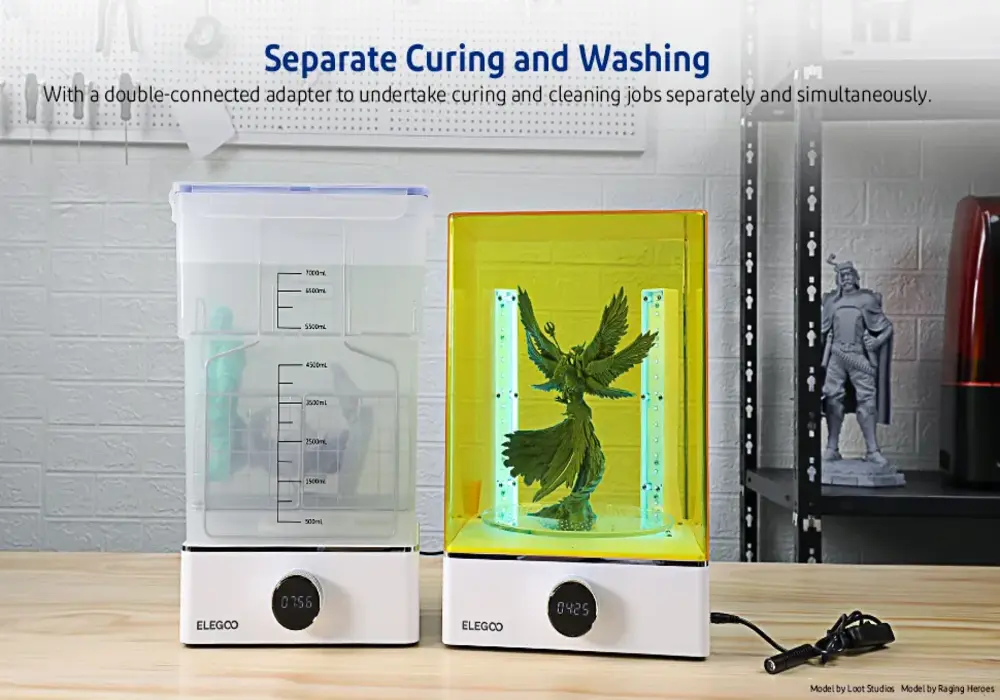

Separate Curing And Washing

A double-connected adapter saves time by allowing you to do curing and cleaning tasks simultaneously, one for cleaning and one for curing. When the washing and curing processes are finished, you will have smooth and clean portions where you are.

Large washing volume

With a 7000ml sealed water tank, you may directly wash huge models printed by Elegoo Saturn and Mars 3, or clean parts in batches, which saves time and increases production.

Elegoo Mercury XS Bundle Washing And Curing Machine features

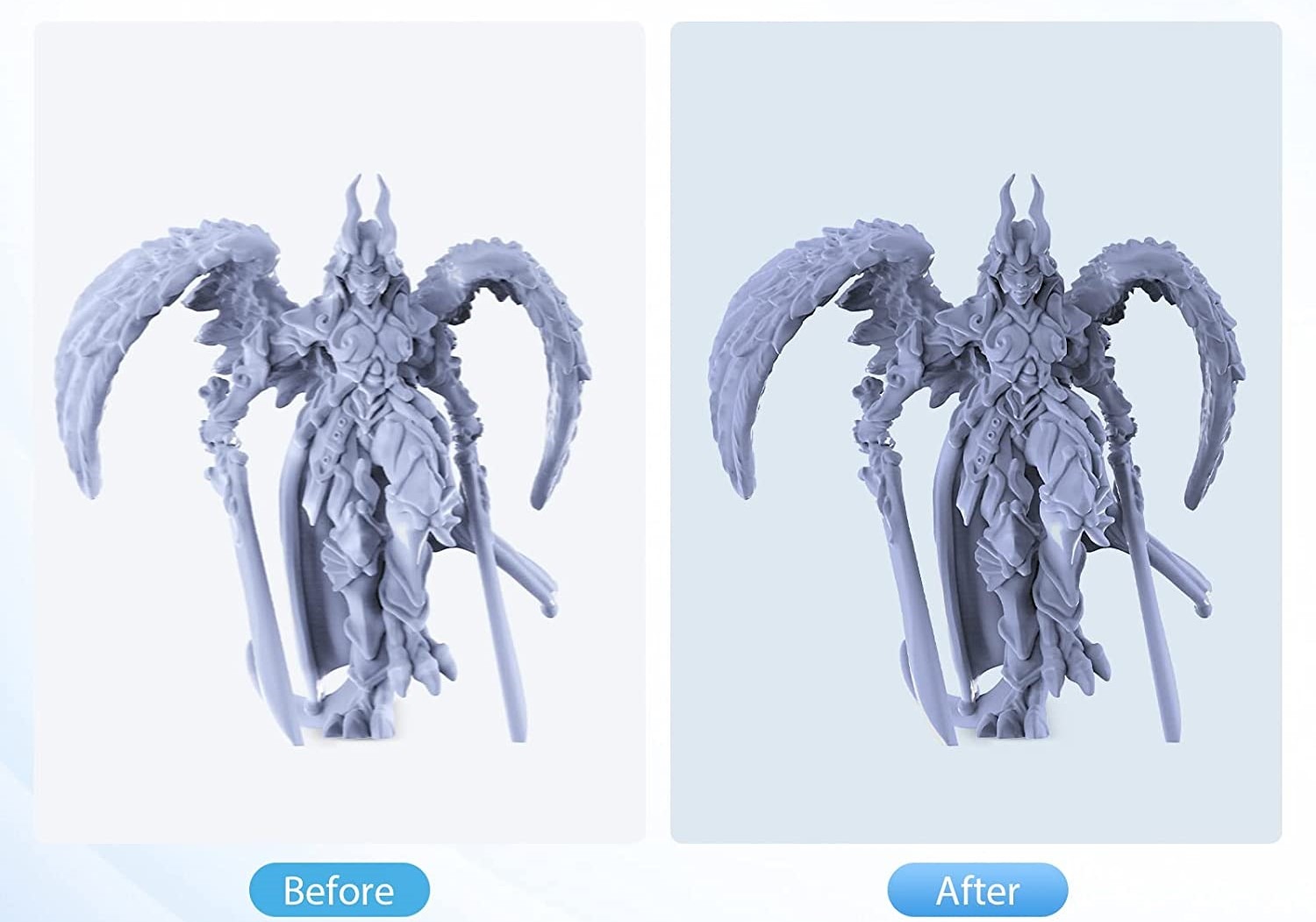

Sample


Elegoo Mercury XS Bundle Washing And Curing Machine review

Operation Instructions


  • Please clean and blow-dry the model once it has been printed before inserting it into the machine.
  • Reduce the curing time if the model turns yellow after curing. A yellowish model will result from overcuring..
  • The recommended ambient temperature is 0-40 degrees, and the recommended humidity level is 20%-50%.
  • To avoid overheating, please do not use it for longer than 40 minutes at a time.
  • Cure Time: If the model diameter is smaller than 30 mm, the curing time should be 2 minutes. If the model's surface structure is complex, it is recommended that the curing time be increased appropriately.
  • Special Notes: The cleaning capability is insufficient for 3D models printed with water washable resin, which should be washed instead.

Technical Specifications


Elegoo Mercury Plus 2 in 1 Washing and Curing Station V2.O technical specifications
Elegoo Mercury XS WASH Machine :

Control Method

Knob + Button

Rated Power

12W

Input Voltage

110V/220V 50/60Hz

Time Setting

0-30mins

Machine Size

255mm*155mm*385.5mm

Maximum Wash Volume

180mm*121mm*153mm (with platform)
201mm*124mm*255mm (without platform)

Machine Net Weight

2.27kg

Elegoo Mercury XS CURE Machine :

Control Method

Knob + Button

Rated Power

36W

Input Voltage

110V/220V 50/60Hz

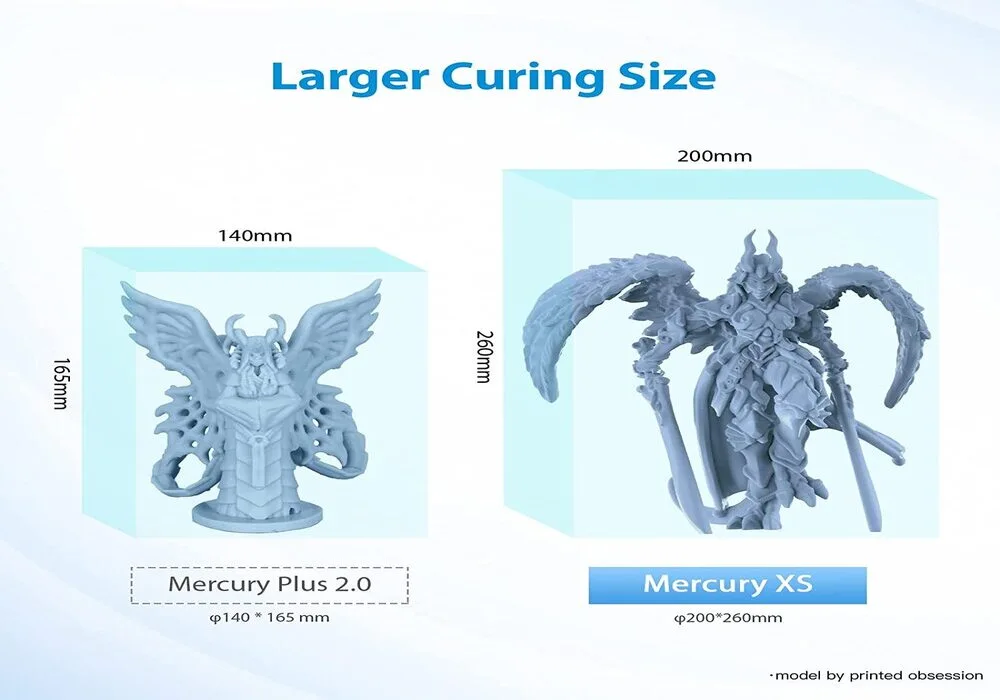

Maximum Curing Size

200mm*260mm

Time Setting

0-30mins

Machine Size

246mm*230mm*363.5mm

Machine Net Weight

2.4kg
