Setting Up FabX XL

Step 1 : Unboxing

  1. Remove the foam board and unbox the machine from the packaged box.

  2. Remove the zip tags near the extruder (Print head) and the foam over the Display screen.

  3. Take out the Tools Kit kept inside the machine (under the Print bed).

Step 2 : List of Items/Tools

Step 3 : Setting Up

  1. Fix the Filament Holder in the square hole on the side of the printer and place the filament in it such that its loose end is on your left side.

  2. Take the loose end of the filament and insert it into the filament guide at the side of the printer and take it through the other end.

  3. Place the MagFlex on the print bed such that it fits in with the build platform (print bed).

  4. Take the Display navigation knob from the tool kit and fix it near the display in its place.

  5. Navigating with the Knob:
    • Pressing the knob → to go into the main menu or to select an option
    • Clockwise Rotation → to move down
    • Anti-Clockwise Rotation → to move up

  6. Copy the files from the SD Card into your laptop/PC for backup.

  7. Connect the power cable to the printer. Go ahead and turn ON your printer.

Step 4 : Bed-Levelling

  1. By default, all the FabX Printers are been factory-calibrated for Bed-leveling. But there are chances that the leveling may get changed during transport. So, it’s better to make sure that the bed-levelling is correct before starting the first print. This will be a one-time process only.

  2. To check your bed levelling, press the display knob once and then scroll down to select Assisted levelling. (You can see that the printer will move to its home position and then to a nearby corner - 1st corner position)

  3. Take a piece of A4 sheet and slide it in between the nozzle and the print bed.

  4. To level the bed correctly, the clearance between the nozzle and print bed should be equal to the thickness of the A4 sheet.

    1. If clearance is more, the extruded material will not stick to the print bed - leading to a failed / warped print.

    2. If clearance is less, then extruded material will not have enough space to come out of the extruder - leading to nozzle clogging or damaging the print bed.

  5. To check the clearance, try moving a piece of A4 sheet between the clearance,

    1. If the paper moves freely between the clearance, turn the screw clockwise to reduce the gap such that there is slight friction while moving the paper.

    2. If the paper gets stuck in between, turn the screw anti-clockwise to increase the gap in such a way that there is a slight friction applied to the paper.

    3. NOTE: Make sure that the paper neither moves freely nor gets stuck between the nozzle and the print bed.
  6. Follow the same process for all the other three corners in the print bed. This can be done by selecting the next corner option from the display.

  7. Once you have completed this process on all the four corners, the bed levelling is done.

Step 5 : 3D Slicing

  1. To 3D Print your model, you have to convert your 3D model file (.stl/.obj/.amf, etc) into a 3D Printable format (.gcode). This process is known as Slicing.

  2. Install and open Cura from the SD card. we need to configure Cura for our FABX Pro 3D Printer.

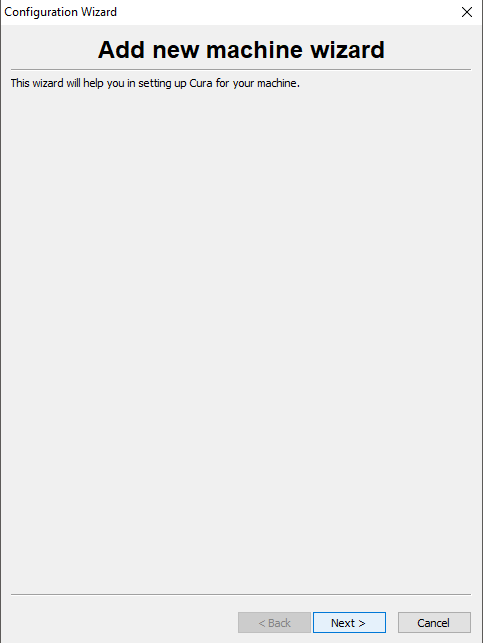

  3. The first time when you start Cura, a “Add New Machine” wizard will appear. Click on “Next” option. If you are seeing a “First time run wizard”, please select the language as English and then click on “Next” to proceed further.

  4. add-new-machine.png

  5. In the “Select Your Machine” wizard, select the “Other (Ex: Reprap, Makerbot, Witbox)” and click on “Next”.

  6. In the “Other Machine Information” wizard, if you are using a Macbook, you can simply click on “Next”. If you are using a Windows laptop, you have to make sure that the last option which reads “Custom” is been selected and then click on “Next”.

  7. In the “Custom Reprap Information”, change the parameters as given below.

    1. Machine name: FabX XL

    2. Machine width X (mm) : 270

    3. Machine depth Y (mm) : 270

    4. Machine height Z (mm) : 270

    5. Nozzle size (mm) : 0.4

    6. Heated bed : Enable the Checkbox

    NOTE: Leave the Bed center is 0,0,0 (RoStock) unchecked and click on “Finish”.

  8. In the Cura slicing window, go to File→ Open Profile and select the “FabX_XL.ini” file from the SD card to load the custom FabX XL profile.


  10. Now Cura is configured for FabX xl 3D Printer.

  11. Load the sample file named XYZ_Cube.stl file given in the SD card.


  13. Now Cura will slice the model and show the printing time below the load icon on the top

  14. Select the “Export to SD” option on the top. After exporting, eject the SD card.

Step 6 : Loading & Unloading the Filament

  1. Press the knob once from the infoscreen and select “Temperature” -> “Preheat PLA” -> “Preheat PLA End” option.

  2. For Loading the filament, after the print head reaches 210 Degrees, take the loose end of the filament from the top of the filament guide and by holding the lever down, push it into the extruder (print head) from the top all the way in until the molten filament comes through the nozzle tip at the bottom of the extruder. Now the filament is fully loaded into the printer for 3D Printing.

  3. For Unloading the filament, once the nozzle get heated up to 210 degrees, you need to push the filament downwards (into the extruder) slightly and pull it out from the top of the extruder.

  4. NOTE: Make sure that the paper neither moves freely nor gets stuck between the nozzle and the print bed.

Step 7 : Starting your First Print

  1. Insert the SD card in the SD card slot near the Display in the 3D Printer.

  2. Rotate the knob to move down and go to the “Print from SD” option. Click once to see the files in the SD card and select the sample file which is XYZ_Cube.gcode to start printing the model.
