Sonic 4K 2022
LCD Resin 3D Printer
LCD Resin 3D Printer

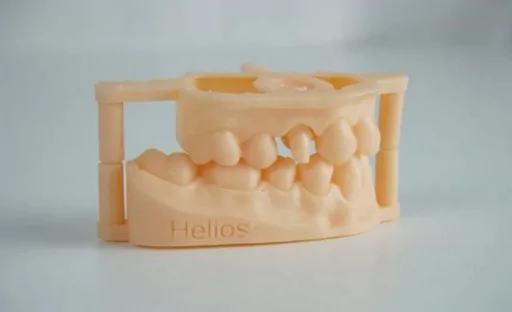

Sonic 4K 2022 is designed for the dentistry sector and lets you to print perfect dental models faster than ever before. The dental 3D Printer comes with the Dental Synergy Slicer dental 3D Printing slicer software, which has streamlined the dental workflow with its simple UI. That isn't everything. The Sonic 4K 2022 also includes a heater and air purifier system to improve your overall 3D Printing experience and decrease 3D Printing failures.
Large Printing Area in 4K
6.1" printing area with the greatest PPI ever (722).
High Precision & Fast Printing
Print at 35m while maintaining an average print speed of
90mm/hour.
Easy Operation
To control your Sonic 4K, use the 5 inch touchscreen panel. Load data
remotely using an Ethernet cable or a USB drive.
Ultra-stable Z-axis
The smart Z-axis design guarantees that tall sections remain stable
and accurate throughout the build by minimizing movement.
Dental Specific Build Parameters
Pre-set printing parameters optimized for use with
dental resins and other 385nm and 405nm resins.
Dedicated Processing Software
The Dental Synergy Slicer programme was created primarily
to improve workflow when processing dental 3D models.
Integrated Heater and Air Purifier
The heater keeps the climate consistent for
high-quality, dependable printing, while the air filter greatly minimises fumes.
Print Resume
After a power outage, you can save your print work and resume printing.
Because of its trademark ParaLED UV technology, the Phrozen Sonic 4K 2022 is an LCD 3D printer that can print layers with a minimum layer height of 0.01 mm. This technique allows you to create exact pieces with smooth outer surfaces and a high level of detail, such as this miniature warrior sculpture. The printer has a powerful monochrome LCD screen and can print at speeds of up to 90 mm/hour, which is useful when you need to generate a large number of models in a single session.
The Phrozen Sonic 4K 2022 comes in a range of materials. It is compatible with 405nm and 385nm third-party resins, as well as special dental resins.
The 135 x 75 x 200 mm (L9 x W10.2 x H18.1 in) build space of the Phrozen Sonic 4K 2022 allows you to print a single medium-sized object. It also allows you to print a large number of tiny models at the same time.
The Sonic 4K 2022 is an accessible device with Ethernet, USB, and SD card connectivity that can be controlled through PC or its built-in 5" LCD touchscreen display.
System
Phrozen OS
Operation
5" inch Touch Panel
Slicer Software
Phrozen Dental Synergy Slicer
Connectivity
USB | Ethernet | WIFI
Technology
Resin 3D Printer - LCD Type
Light Source
405nm ParaLED Matrix 3.0
XY Resolution
35 µm
Layer Thickness
0.01-0.30 mm
Maximum Printing Speed
90 mm/hr
Power Requirement
AC100-240V~50/60Hz
System Power
50-60Hz
Printer Size
25 x 25 x 33 cm
Printing Volume
13.4 x 7.5 x 20 cm
Printer Weight
14.9kg
