The Mars 4 Ultra 3D Printers has an all-metal machine body that improves the printer's stability and toughness so that it can withstand the demands of frequent use. The printer's sleek, contemporary design also gives your workspace a nice aesthetic touch. In order to prevent resin from flowing inside the printer and to ensure a clean working environment, the mid-plate of the printer is built with a raised step. To make cleaning the screws on the build platform easier, screw end caps were added. This reduces the time and labour required for maintenance and post-processing. The printer is stable on uneven surfaces thanks to the adjustable foot pads for increased stability.
The printing quality and level of detail on the ELEGOO Mars 4 Ultra are exceptional. With its 7-inch 9K Mono LCD's 8520*4320 resolution, which captures even the smallest details, you can create intricate models with astonishing 18 microns XY precision. The quick printing capabilities of Mars 4 Ultra are equally impressive; using ACF release liner film and the upcoming ELEGOO FAST standard resin, you can print at a rate of up to 150mm/H. You can produce high-quality models with incredible speed and efficiency thanks to this printing speed that is 3 times faster.
Wi-Fi transfer is supported by the most recent Linux OS, which has 4G RAM built in and a 6–10 Mbps transmission speed. Additionally, it supports both 2.4G and 5G networks, making file transfers from a computer or mobile device simple. The printer's Z-axis conveniently houses the detachable WiFi antenna, making it simple to connect to your network.

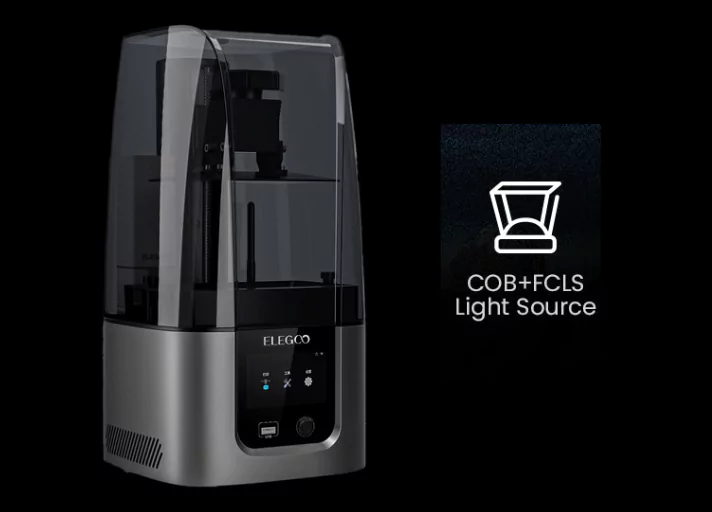

The COB light source and Fresnel collimating lens provide consistent curing across the entire build area with less than a 5-degree light angle and 92% light uniformity. You will experience vertical and uniform exposure of a 405nm wavelength beam. This guarantees an even and smooth surface finish for your models.
In order to help eliminate riffles on finished prints and create smooth and delicate surfaces on your models, the Z-axis adopts a linear guide rail structure with an accuracy of 0.02mm. You can save time and effort by using the 4-point levelling system with four clockwise-tightening screws to avoid the need for subsequent levels after the initial one. Even when printing large models, the build plate's laser-carved surface improves adhesion during the printing process.
In order to quickly dissipate heat, copper tubes that conduct heat are placed next to the COB light source. This feature prolongs the printer's useful life in addition to improving its performance. The upgraded air purifier has a protective plastic case that effectively eliminates resin odour during printing and protects the integrated activated carbon filter during transportation. To increase the effectiveness of your printing, the printer includes Voxeldance Tango Slicer, which provides both static mode and dynamic mode (including smooth and high-speed mode). In addition to CHITUBOX and Lychee Slicer, the open-sourced GOO slice file format is also compatible with other slicing applications.
Product model
MARS 4 Ultra 9K
LCD
6.7-inch 9K Mono LCD
System
EL3D-3.0.1
Slicer Software
ChituBox
Technology
MSLA 3D Stereo lithography
Light Source
UV Integrated Light (wavelength 405nm)
Layer Thickness
0.01-0.2mm
Printing Speed
30-70mm/h
Z Axis Accuracy
0.02mm
XY Resolution
0.018mm
(8520*4320)
Connectivity
USB
Weight
15.43lbs(7kg)
Operation
3.5 Inch Touch Screen
Power Requirements
100-240V 50/60Hz 24V 3A
Printer Dimensions
22.7cm*22.7cm*44.35cm (LWH)
Build Volume
156.36mm*77.76mm*165mm (LWH)
Languages
Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese.

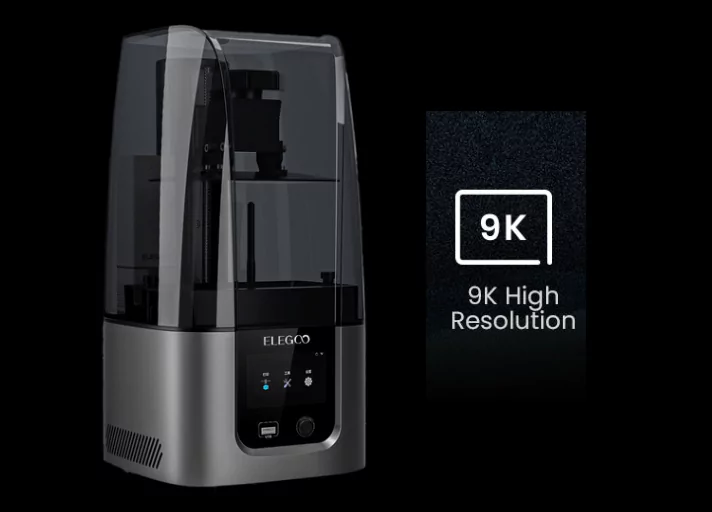

7-Inch 9K Mono LCD
The Mars 4 Ultra allows you to print incredible complex models with fine details thanks to its 7-inch 9K mono LCD, which boasts an impressive 8520x4320 resolution and 18m XY resolution. The mono LCD is shielded by tempered glass with a 9H hardness rating, ensuring that it withstands everyday use without losing performance.
Powerful Linux OS
The Linux operating system guarantees quicker, smoother operation and effective resource management thanks to its built-in 4G RAM and the elimination of file loading delays.
Effortless Leveling
The easy-to-use 4-point levelling system ensures perfect prints each and every time and eliminates the need for repeat levelling after the initial levelling. The build plate's laser-carved surface provides better adhesion, lowering the possibility of print failures. For a high printing success rate even at a higher printing speed, brand-new ACF release liner film with less release tension is used.

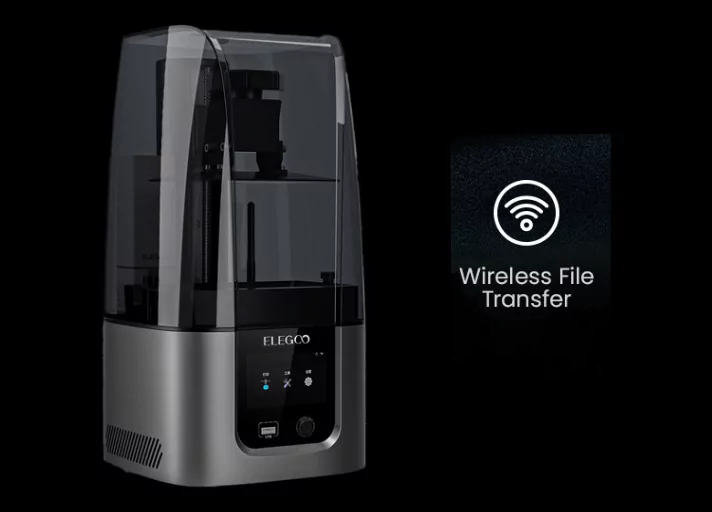

Wi-Fi Connection
Easily transfer files using the integrated WiFi connectivity, which supports both 2.4G and 5G networks and has a transfer rate of 6-10Mbps, doing away with the need for bulky cables.
User-Friendly Touch Screen
With a 4-inch HD IPS touch screen that supports 12 languages and has a resolution of 800*480 pixels, navigating is simple for users of all experience levels.

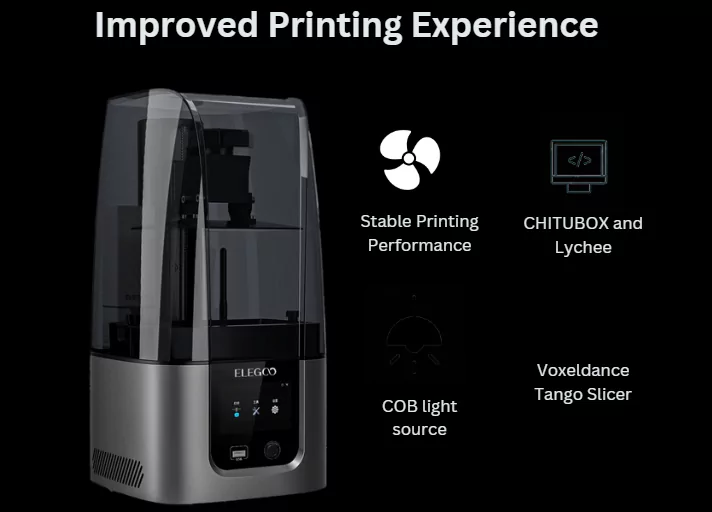

Purified Printing Environment
The built-in air purifier's upgraded activated carbon filter efficiently removes resin odours during printing. This function improves your printing experience overall and creates a healthier workspace for you.
