Einscan s


Einscan-s


The First Generation of EinScan Desktop 3D Scanner






Fast, accurate, affordable, 3D printer compatible.


EinScan-S is the first generation desk 3D scanner that Shining 3D launched in February 2015.
It has become one of the most popular desktop 3D scanners as soon as they come into the market.
Due to the great success of EinScan-S,
Shining 3D has gradually grown into the technology leader in 3D scanning and continuously launched new products of EinScan family.
Einscan-s
Einscan-s Accuracy

High Accuracy


The EinScan-S is designed to capture high-quality 3D data for use with 3D printers.
It produces accurate 3D models without the difficulty of learning complicated 3D design software.
The EinScan-S has a reputation among leading technology professionals as creating the most accurate data quality of all desktop 3D scanners

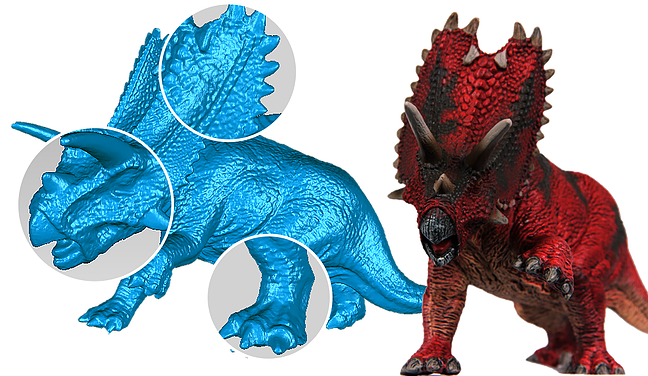

Color Texture Scan

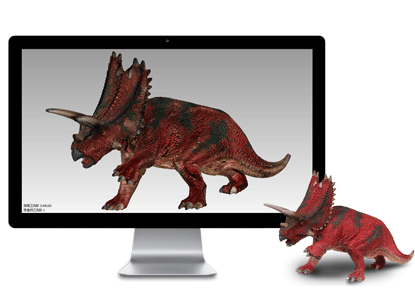

The Einscan-s captures geometric shapes with color and texture information , which can be useful for computer graphics, animation, game development, digital archiving, prototyping and color 3D printing.
Einscan-s Color Texture Scan
Einscan-s Accuracy

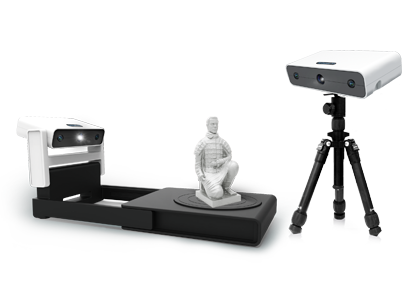

Dual-Scan Options


Equipped with both automatic and free scan modes,the Einscan-s is capabable of both small and large objects. Users can easily switch between either scan mode.

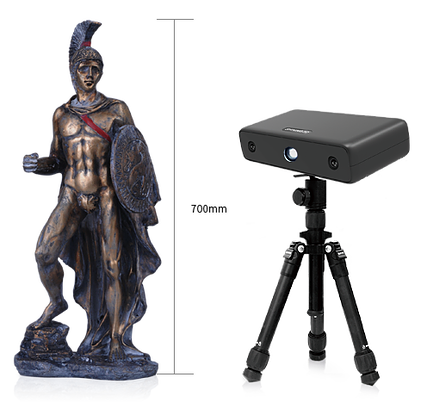

Scan Small to Large


The Einscan-s is capable of Scanning a wide variety of differently sized objects.The maximum automatic scan envelope is 200X200X200mm (7.87-inch cube) while the free or manual scan envelope is 700X700X700mm (2.3-foot cube)
Einscan-s
Einscan-s

Faster then Ever

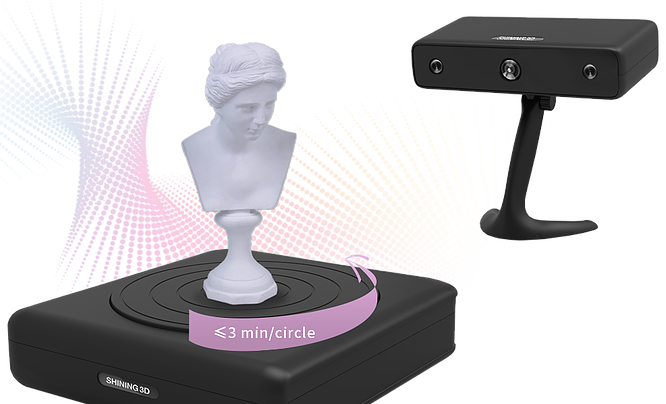

A rotational turntable scan takes less than 3 minutes to complete which is 3 to 4 times faster than any other competitive 3D scanner.
Einscan-s

Easy to Use

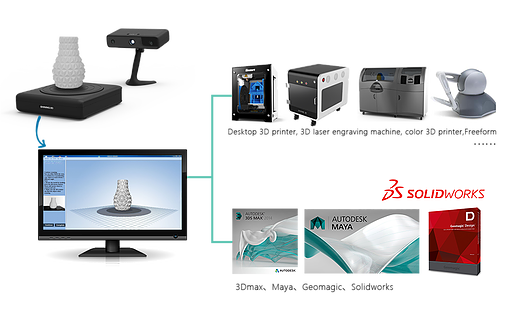

The EinScan-S 3D scanner can be used by anyone to quickly and easily capture 3D models. All you have to do is point and click and the scan process turns your real world objects into 3D digital models on your computer. The scanner outputs in standard file formats such as STL (the design format used for most rapid prototyping applications) or OBJ (a standardized file that contains 3D objects) which ensures that the data can be used in most 3D CAD applications.
Einscan-s

Technical Specifications



Scanning

Model

EinScan-S


Accuracy

=0.1mm


Maximum scan volume

Free scan:700X700X700mm (2.3-foot cube)


Scan speed Free scan:

Automatic scan:<3mins ; Free scan:<10s(single range)

0.17mm ~0.2mm (0.0067"~0.0079")


Point distance(mm)

Automatic alignment


Alignment method

Manual alignment


Scan mode

Automatic scan


Product Details

Scanner dimension

246X260X65mm(9.67X10.24X2.56in)


Weight

Unpacked:3.5kg(7.72lbs.)


Power consumption

50w


Single scan range (free scan)

200X150mm(7.87"X5.91")


File Format

STL,ASC
