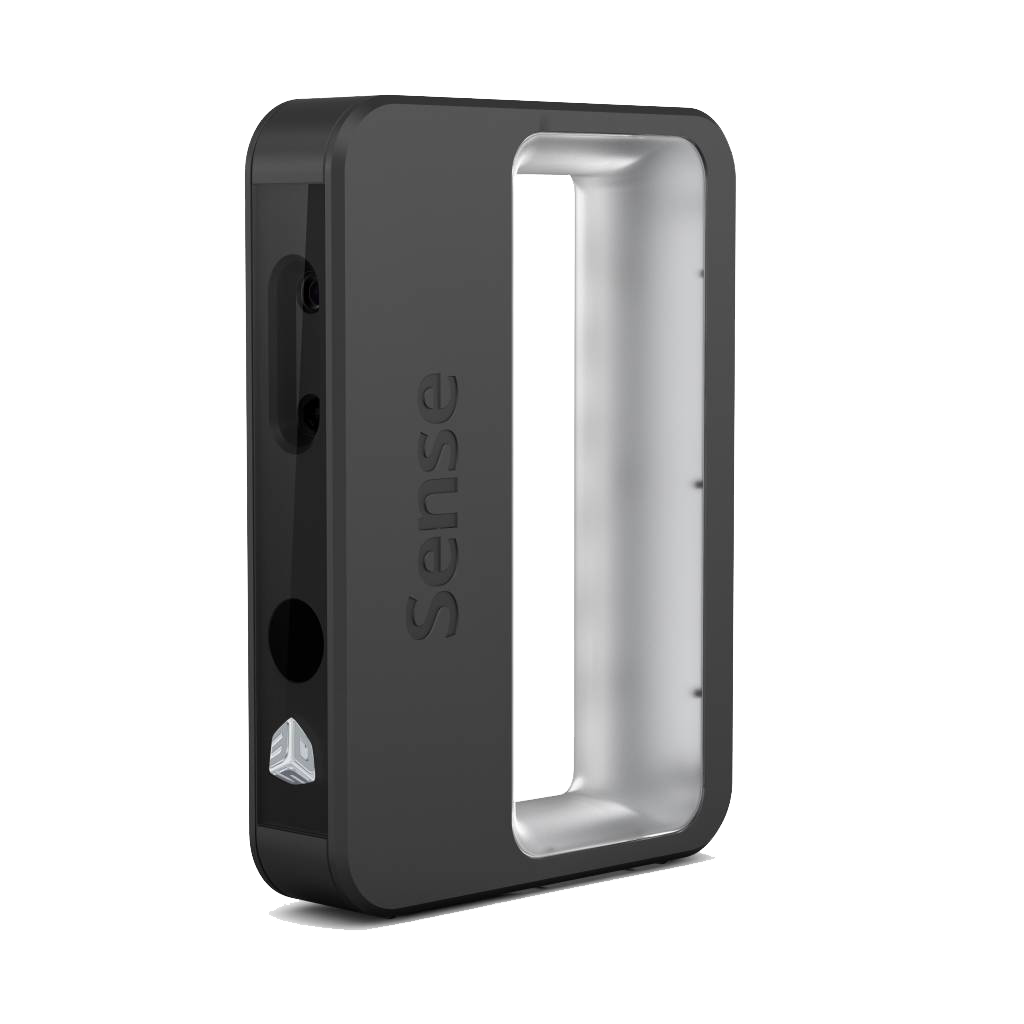

Cubify Sense
Best-in-class Entry level
Free Form 3D Scanner
Request Quote
*In Stock, ships out immediately.
Scan-Edit-Print
Sense 3D Scanner brought to you by 3D Systems,has a tangible response in the flourishing 3D Market.
Photograph your favourite objects with the all new SENSE 3D scanner, convert every dimension of your favorite memories into souvenirs.

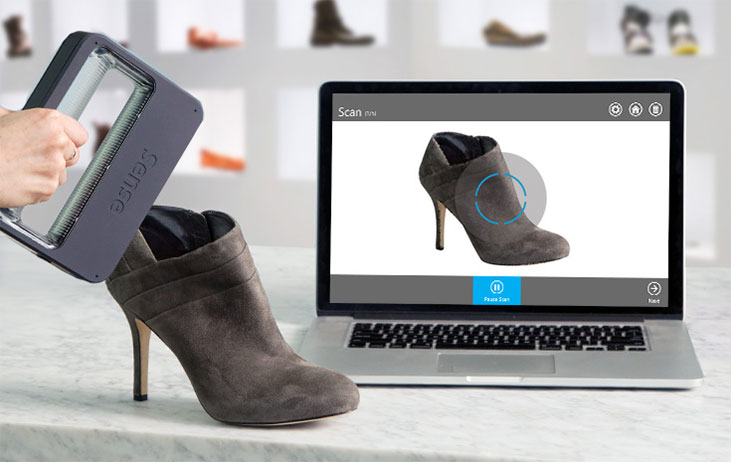

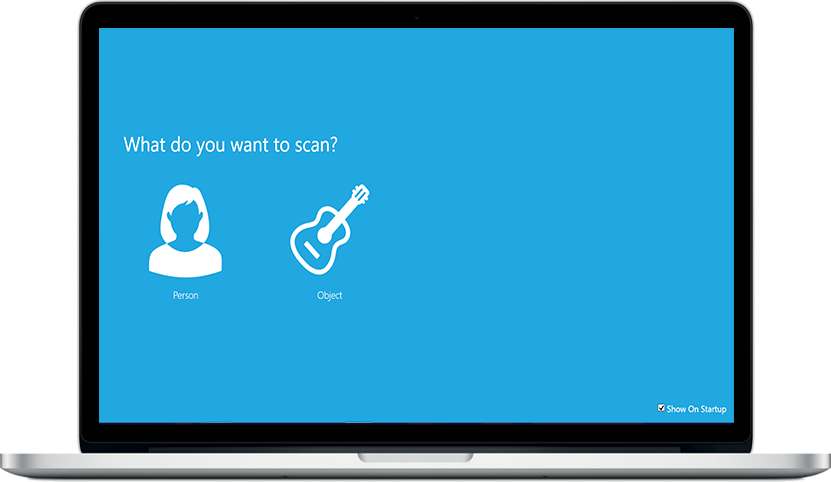

SCAN

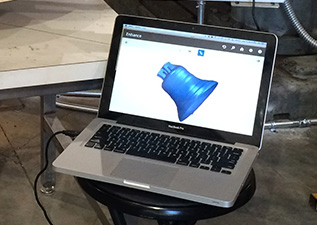

EDIT
ENHANCE YOUR IMAGINATION
Imaginations hold an higher value when transformed into active reality. Product development, rejuvenation of old archives and creating new substantial merchandise can be implemented resourcefully.
Annex your dreams and expand your visions

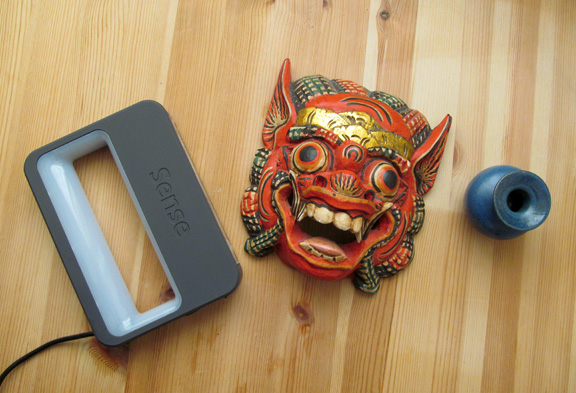

Embrace your hobbies and make them count. Make customized household articles, be it a pot or a lamp, a cot or your very own 3D stamps.
Annex your dreams and expand your visions
Embrace your hobbies and make them count. Make customized household articles, be it a pot or a lamp, a cot or your very own 3D stamps.
Explore new possibilities
Materialize your planning and strategize your innovation with Sense. The "Sense scanner" is highly portable and scanning physical objects is extremely easy as opposed to designing them.

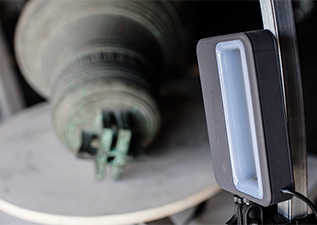

On the Go, Ready to Scan
Designing, slicing and developing are key factors that contribute to the functioning of any product but at the same time it's time consuming and complex in understanding. When you already have a product in hand it’s easier to Scan , Reproduce and Use it!
On the Go, Ready to Scan
Designing, slicing and developing are key factors that contribute to the functioning of any product but at the same time it's time consuming and complex in understanding. When you already have a product in hand it’s easier to Scan , Reproduce and Use it!
Features
The Sense 3D scanner delivers best-in-class accuracy of close to 1 mm with resolution at 1 mm
-
Sense has a generous scan range of between 7 and 72 inches to allow for rapid 3D scanning of a wide range of objects.
-
Sense has an unprecedented color resolution of 1920 x 1080 pixels for perfect color texture mapping

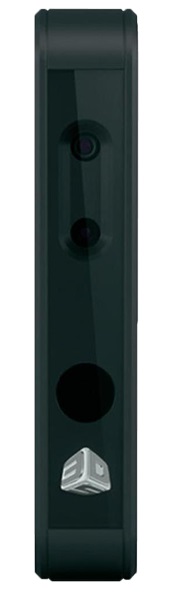

Infrared Emitters
IR Receiver
Imaging Lens
Infrared Emitters
IR Receiver
Imaging Lens
3D Systems
Brand Logo
Specifications
Hardware recommendations
Intel® Core i5™ or equivalent processor
RAM: 2 GB minimum
1280 x 1024 minimum screen resolution
4 GB available hard disk space
Dimensions
5.08(w) x 7.08(h) x 1.3(d) inches
12.9(w) x 17.8(h) x 3.3(d) cm
Scan volume
Min: 0.2m x 0.2m x 0.2m
Max: 2m x 2m x 2m
Depth image size
640(w) x 480(h) px
Maximal image throughput
30 fps
USB cord length
6 feet
Operating temperature
10-40° C
Color image size
1920(w) x 1080(h) px
Field of view
Horizontal: 45°
Vertical: 57.5°
Diagonal: 69°
Operating range
30 fps
Spatial x/y resolution @ 0.5m
0.9mm
Data interface
USB 3.0
Warranty
1 Year
