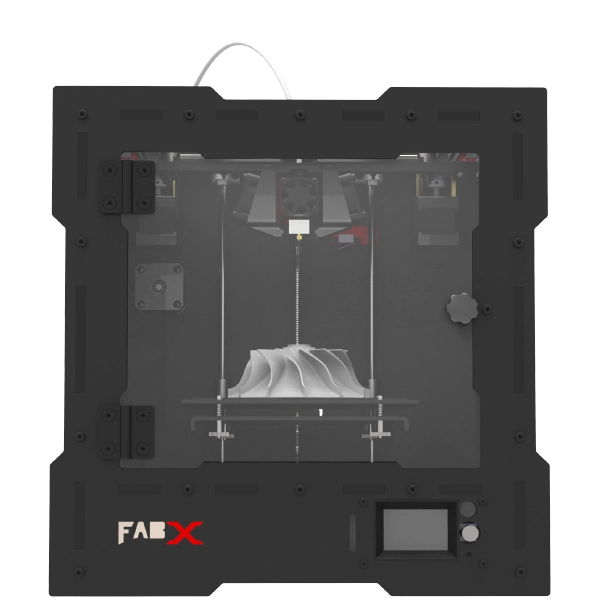

FabX Pro India

FabX Pro logo India

3D Print, Like a Pro..

Professional Quality 3D Printing in a Domestic 3D Printer

In Stock. Ships immediately

Request Quote to get a discount coupon of upto Rs.10,000/-


BuildVolume
Build Volume
150 L X 150 W X 150 H mm
Printing Temp
Printing Temp
Upto 300° C
Heated Bed
Heated Bed
Upto 120° C
Filament Supported
Supported Materials
PLA, PET-G, Wood, Metal Composites, ABS, HIPS, Nylon, Carbon fiber, etc.,


What’s New in FABX Pro 2019 Version?


Designed for Reliability


Fabx-pro-2018 fabx-pro-2019
The new enclosed design provides superior thermal insulation and creates optimum printing atmosphere for industrial materials like ABS, Nylon, HIPS, Carbon Fiber.

Snap & Silent


FabX Pro Snap & Silent

The FABX Pro 2019 is built with an Engineering Grade Reinforced Fiber chassis, uniquely designed with a 2D Laser Cut Mechanism, keeping it light yet extremely robust.


Don’t Fight it. Just Flex it!



flexible plate
The brand new REDD MagFlex build platform is both magnetic and flexible making it the most user friendly build platform in a 3D Printer. Instead of fighting with the build plate to remove the object, all you have to do is flex the build sheet.


Satellite


Did You Know?


The World's Lightest Satellite was
3D Printed on a FABX Pro



Specialities of the FABX Pro



E3D v6 hotend

FabX Pro E3D V6 Hotend
One of the unique features of the FABX Pro is the
While most 3D Printers reach a maximum of 250° C, the FabX Pro can go upto 300° C, making it compatible with advanced materials like ABS, Nylon, Carbon Fiber etc.

Heated Bed

The heated bed distinguishes the FabX Pro from all other 3D Printers in it's category.
With a high powered silicone heater, the FabX Pro goes from room temperature to 60 degrees in just 50 seconds and to 110 degrees in just 150 seconds.
This means you don't have to wait too long to start your Print. This also means you can print in industry grade materials like ABS, Nylon etc with ease.

Active triple cooling system.

FabX Pro Cooling Fans
The FabX Pro packs an E3D Hotend moving on premium Industry-Grade rails.
Added to that, it features an
While the hotend fan prevents heat from seaping up & thus preventing clogs, the two other ducted fans provide rapid cooling, thus enabling the FabX Pro to handle extreme bridging with minimal to no supports.

This also makes the FabX Pro print High speeds with ease.

Sleek Control Panel


FabX LCD

Sleek Control Panel


FabX Pro unlike all it's predecessors, possesses a sleek LCD control panel which displays live info during a print.

Power the FabX Pro, slice in Cura, insert SD Card with the Gcode, Choose it via the control panel and print. What more? Pause, Resume, Change Filament, Tune Temperature & Adjust Print speed on the fly.



Materials Compatible


PLA . ABS . ASA . PET-G . HIPS
Composites: Silk . Wood . Aluminium . Gold . Brass . Bronze . Copper
Nylon . Carbon Fiber

Any other non-soft Filament that melts under 300° C




Software Compatible


FabX Pro Cura

Import from your favorite Design Platform

Tinkercad, Sketchup, Solidworks, Fusion360, Maya, Zbrush, Openscad or any of the various CAD software, Export in one of the compatible formats like stl, obj, amf, etc & you’re ready to 3D Print.

Slicing Software

The FabX Pro runs Marlin, meaning which it’s compatible with a variety of Slicing Software.
Cura, Simplify3D, Mattercontrol, Slic3r, the list goes on..

Recommended

Beginners : Cura (Free)
Advanced : Simplify3D

Technical Specifications



Printing

Printing Technology

FFF (Fused Filament Fabrication)


Heated Bed

Yes (Upto 120° C)


Build Volume

150 L X 150 W X 150 H mm

5.91 X 5.91 X 5.91 in


Layer Resolution

50~300 microns


Positioning Precision

XY: 11 microns [0.0004 in]

Z: 2.5 microns [0.0001 in]


Filament Diameter

1.75 mm [0.069 in]


Nozzle Diameter

0.4 mm [0.015 in]


Printing Temperature

175 to 300 Degrees Celcius


Mechanical

Frame & Body

Hard Reinforced Fiber


Extruder Quantity

One


Product Dimension

326 X 306 X 354mm


Shipping Dimension

TBA


Product Weight

7.5 Kg


Shipping Weight

10 Kg




Software & Electrical

Software

Cura, Simplify 3D


File Type

STL, OBJ


Operating Systems

Windows 7/8/10

Mac OS X


Interface

USB Cable, SD Card, LCD


Language Support

English


AC Input

~230 V, 50-60 Hz


Power Consumption

60W-Without Heated Bed

150W-With Heated Bed
















In the Box

In the box..


  • FabX Pro 3D Printer

  • PLA Filament Spool - 250g

  • Documents

    - User Manual, Checklist, Warranty & Support Document

  • Toolkit

    - Tweezers, Allen Keys, SD Card & Card Reader, Bowden Tube, Power Cable, USB Cable, REDD MagFleX Build Sheet

  • Software

    - Cura, Optimized FabX Cura Profiles, Sample Print GCodes







Timelapse Videos of Fabx Pro










Find the FabX that's right for you


Compare FabX 3D Printers


FabX

FabX

120 X 120 X 120 mm3
No Heated Bed
E3D lite6 Hotend
PLA, PET-G, Wood, Metal Composites
Fabx Plus

FabX Plus

150 X 150 X 150 mm3
No Heated Bed
E3D lite6 Hotend
PLA, PET-G, Wood, Metal Composites
Fabx Pro

FabX Pro

150 X 150 X 150 mm3
Heated Bed
E3D v6 Hotend
PLA, PET-G, Wood, Metal Composites, ABS, HIPS, Nylon, Carbon fiber, etc.,
Fabx XL

FabX XL

270 X 270 X 270 mm3
No Heated Bed
E3D Lite6 Hotend
PLA, PET-G, Wood, Metal Composites and other PLA Composites
