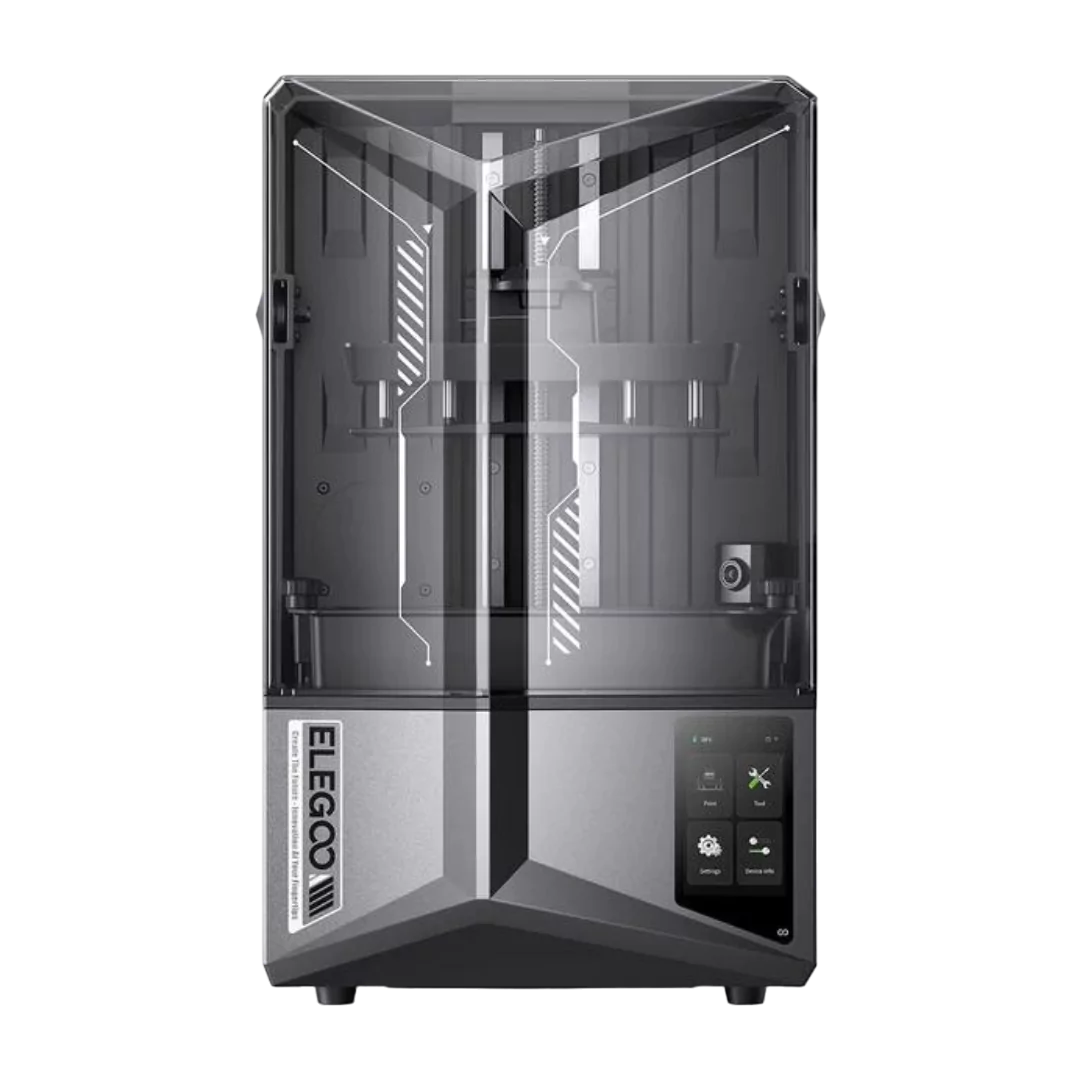

Elegoo Saturn 4 Ultra 12K Resin 3D Printer
Advanced Print Precision | High-Speed Resin 3D Printer
Advanced Print Precision | High-Speed Resin 3D Printer

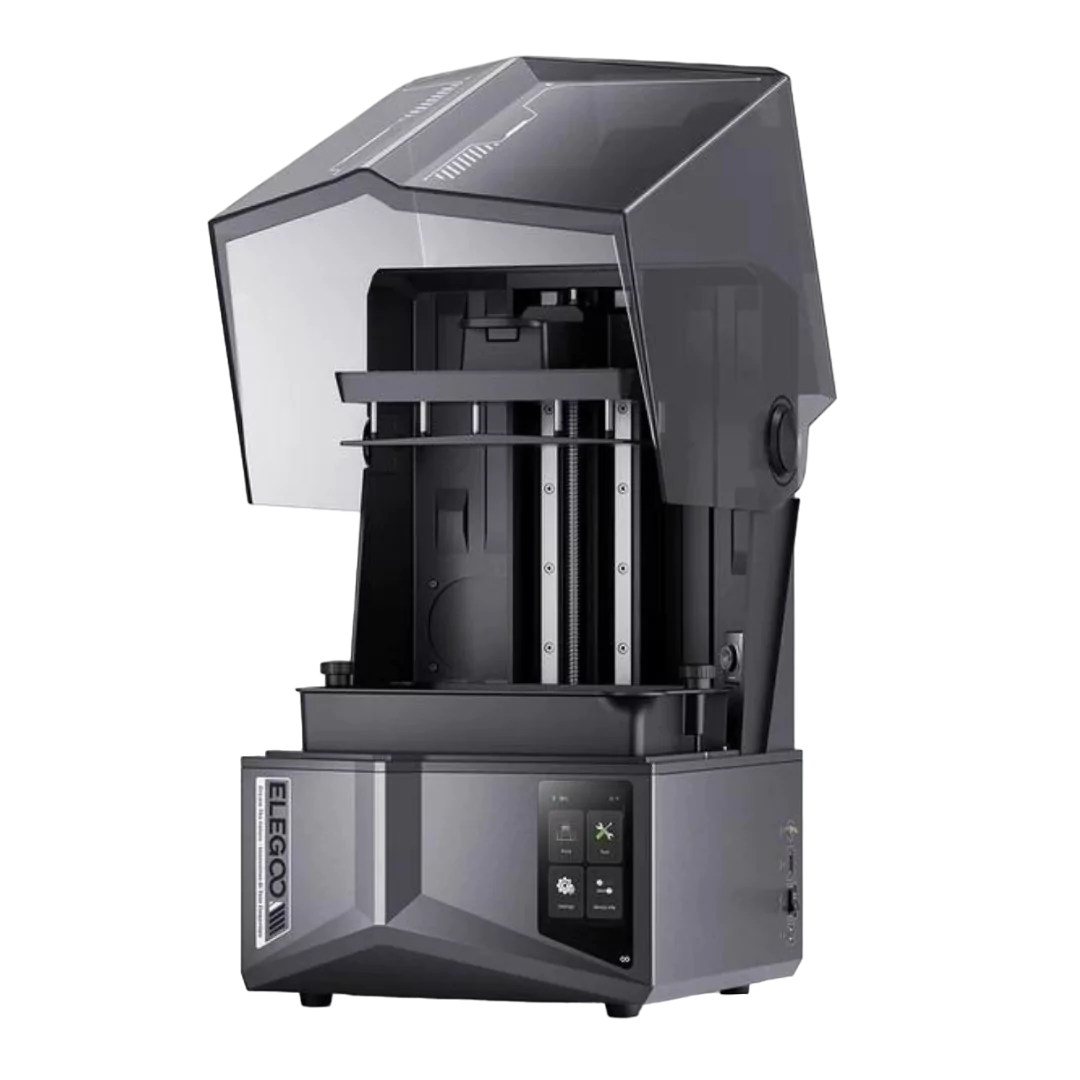

The Elegoo Saturn 4 Ultra 3D Printer, equipped with a 10-inch 12K Mono LCD and innovative Tilt Release Technology, offers precise prints and lightning-fast speeds of up to 150mm/h. With features like a COB + Fresnel Collimating Lens, auto-leveling, an intelligent mechanical sensor, AI monitoring, and power-loss resume printing, it’s the perfect 3D Printer for both beginners and seasoned users.

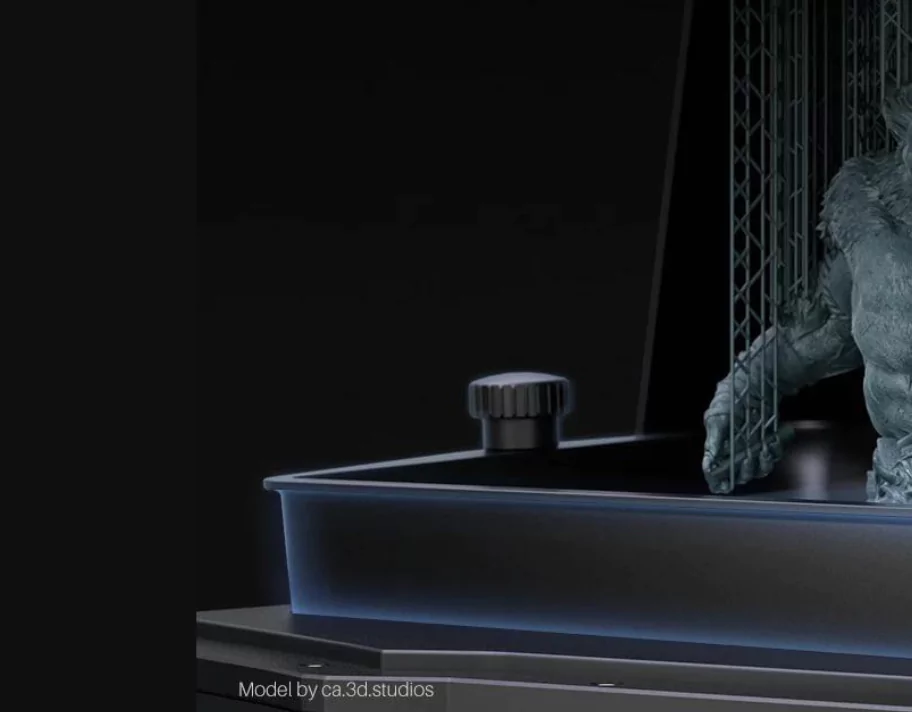

The Elegoo Saturn 4 UItra uses tilt release technology, which allows the model to be quickly removed from the release film by tilting the resin tank, resulting in a printing speed of up to 150mm/h.

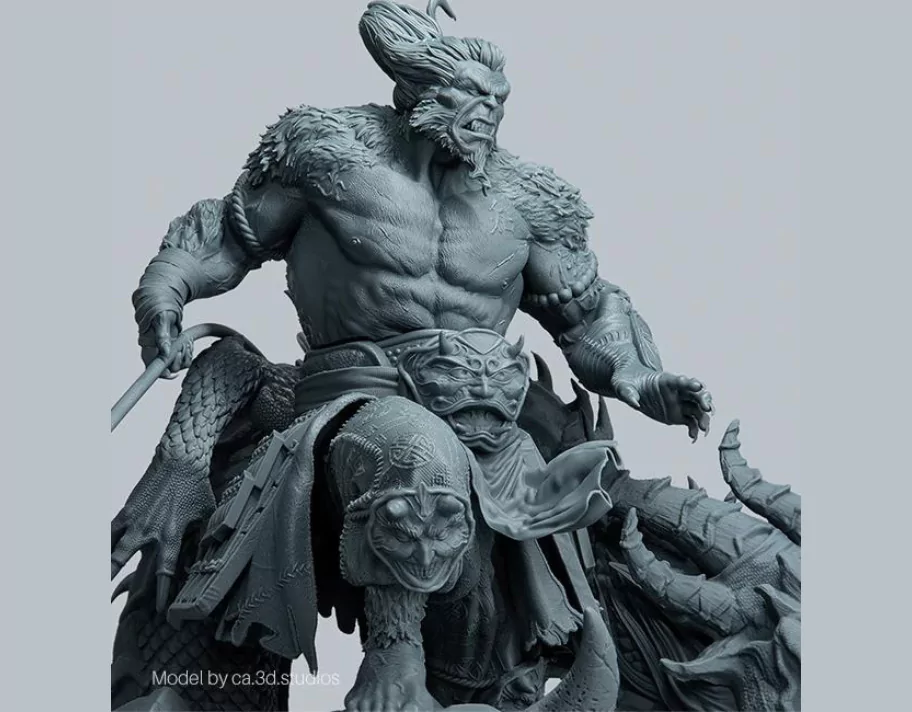

The Saturn 4 Ultra has a 10-inch 12K mono LCD with a resolution of 11520x5120 and an XY resolution of 19x24μm, providing clear and exact display of complex designs.

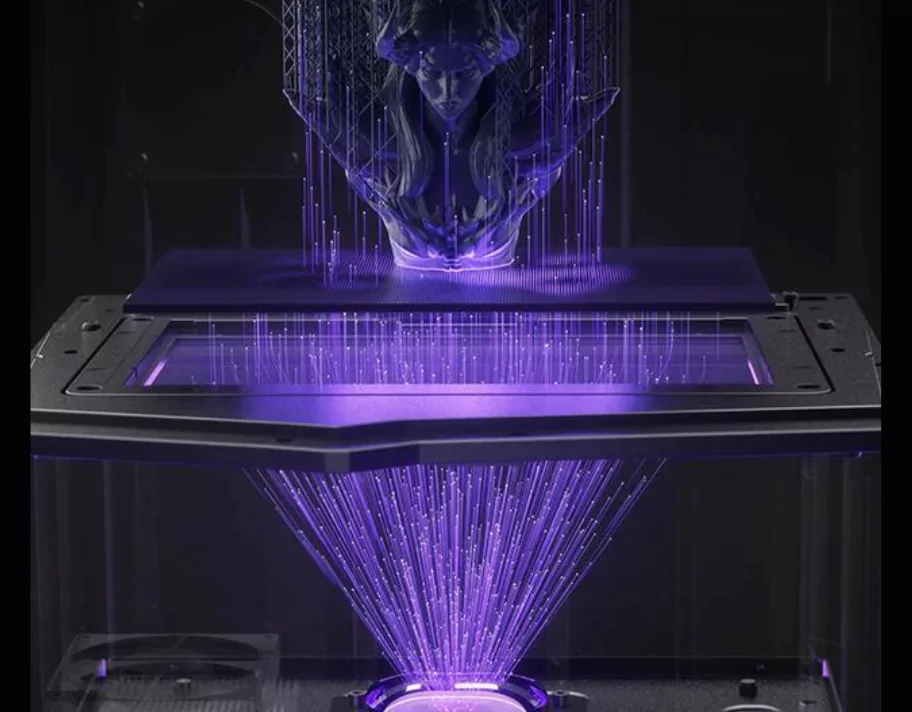

With the Fresnel collimating lens and the COB light source, it is possible to obtain an impressive 92% field uniformity, an exact angle deviation control of 5°, and an ultra-low astigmatism coefficient of 0.5% when the light source emits 405 nm. Because of this, the printing is extremely accurate, smooth, and full of fine details and finishes.

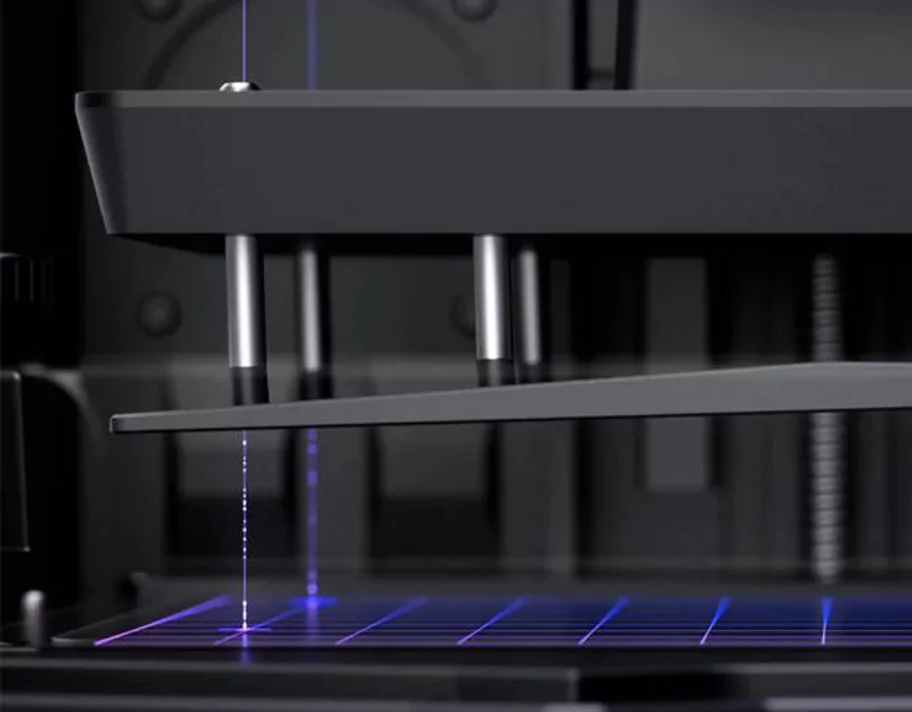

With features like automatic leveling and intelligent self-check, the Saturn 4 Ultra provides a smooth experience. The ultimate hassle-free 3D Printing experience is delivered with just a simple unpack, power up, and print.

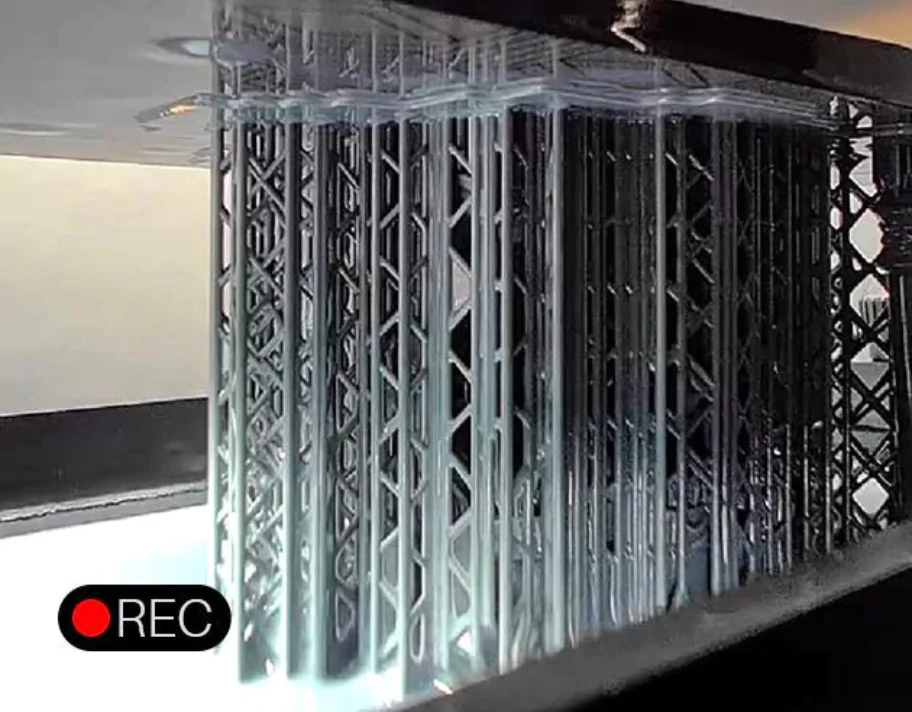

With the AI camera, experience failure detection and real-time printing status monitoring. Keep track of your prints' development and record amazing time-lapse films of your masterpieces coming to life.

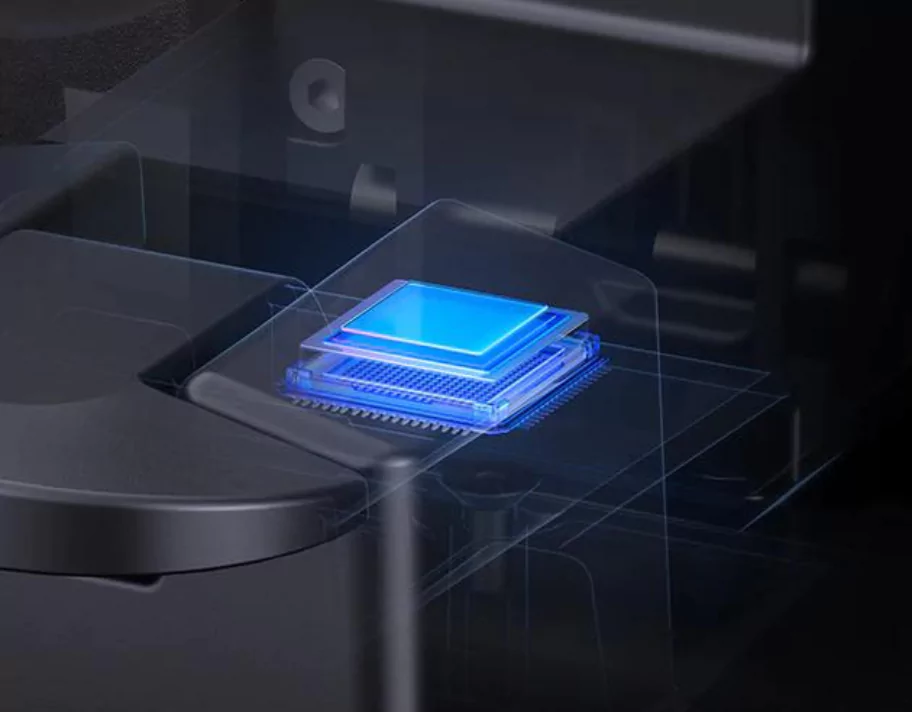

The Saturn 4 Ultra offers improved safety and dependability during the printing process with its mechanical sensor that senses residue to protect the LCD panel, as well as alerts for resin shortage and leveling failure.
Get real-time information on your print status to make sure everything runs well. Make amazing time-lapse pictures of your works and show off your excitement to others.

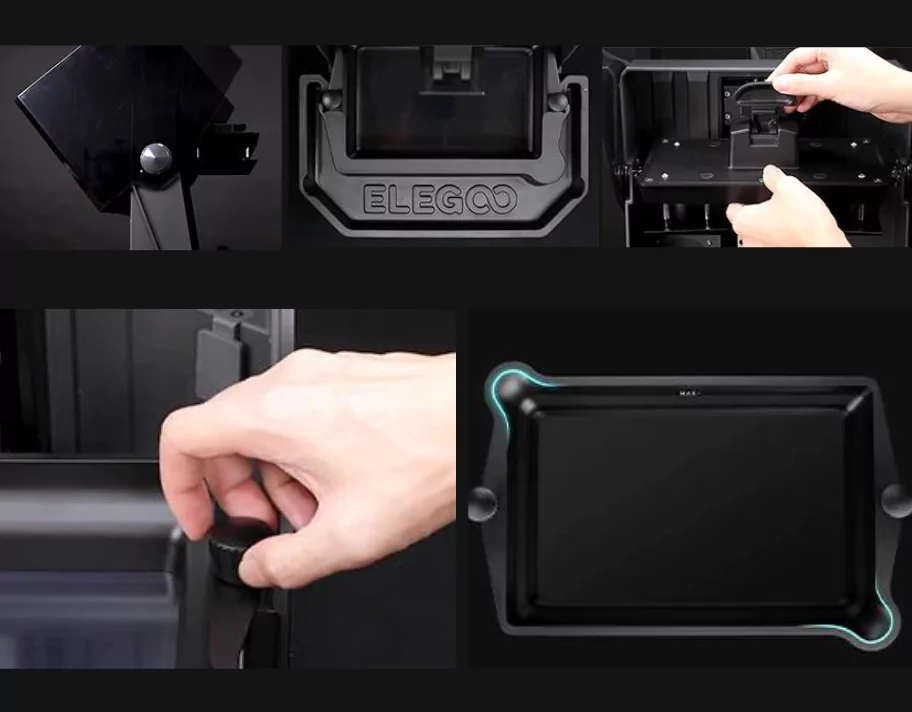

The goal of Elegoo is to make sure that customers have a flawless printing experience. Every element has been carefully considered to improve comfort and convenience during use, including the quick-release construction plate, dual pour spouts for the resin tank, drip tray to capture resin drips, changeable tank lock, and flip-up cover for simple access.
Clustered Wi-Fi Printing
Easily control many printers at once with a single device. You can effectively manage your print jobs one at a time, whether you have one printer or several.
Innovatively Designed System
With its 8G ROM self-developed system, which ensures faster processing and stable file transfers, the Saturn 4 Ultra provides a more effective and seamless printing experience.
High-Precision Touchscreen
Enjoy smooth and intuitive operation with the 4-inch capacitive touch screen, featuring a vertical layout and an easy-to-use interface.

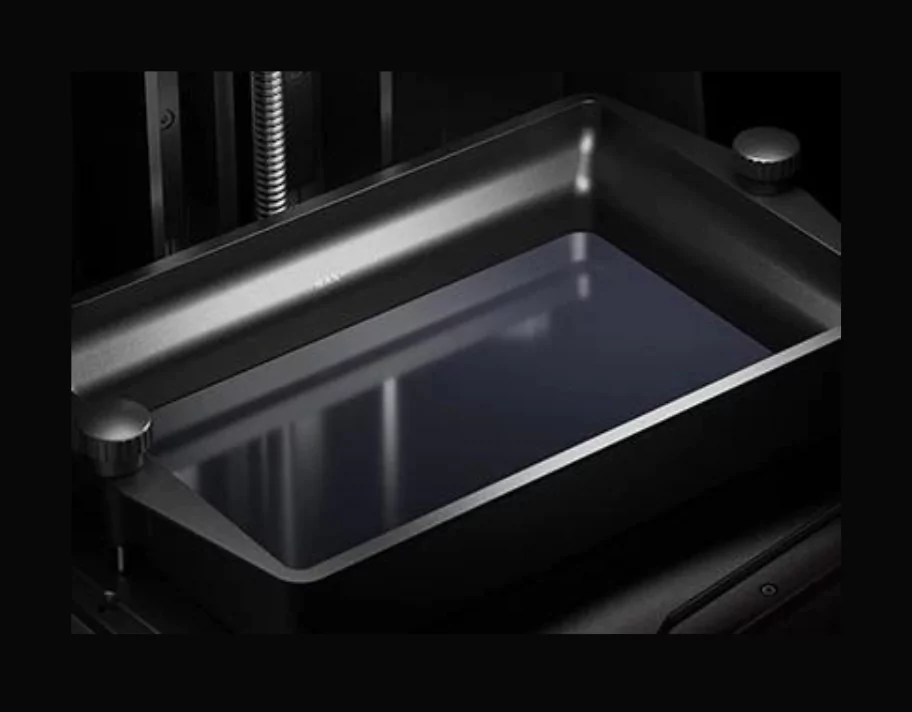

PFA Release Film
PFA release film has an excellent release performance thanks to its non-stick surface, which prevents resin from sticking to the film and makes it simpler to peel off.
Mars Mate Support
The Elegoo Mars Mate air purifier has a high-density activated carbon filter that effectively absorbs resin scents, with up to 95% TVOC purification performance.

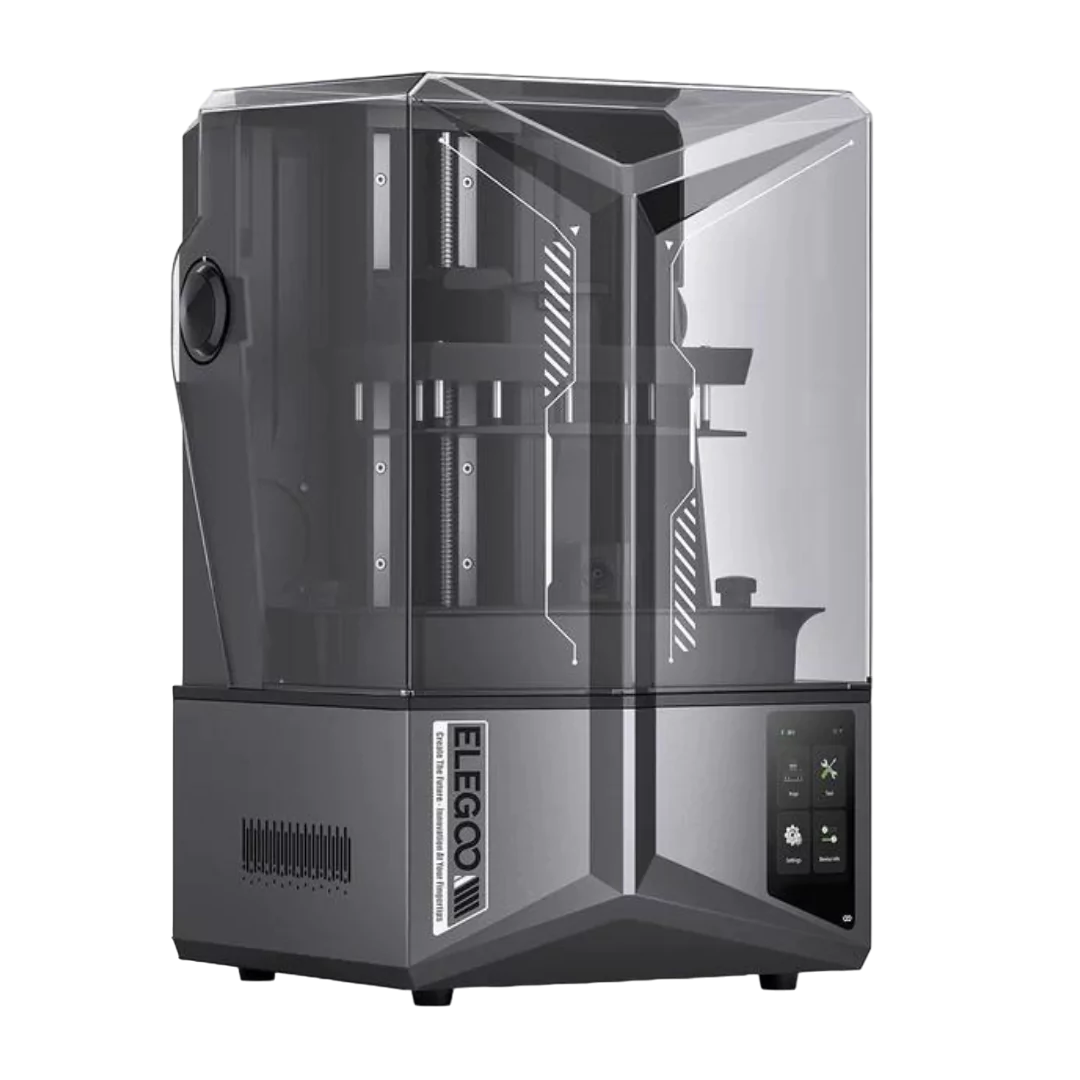

Classic And Durable Design
WiThe Saturn 4 Ultra, built with a strong metal body, retains excellent precision even after millions of printing layers.
LCD
10-inch 12K Mono LCD
Technology
MSLA Stereo lithography
Z-axis Accuracy
0.02mm
System
EL3D-4.0
Slicer Software
ChituBox & Autodesk Fusion
Printing Speed
MAX 150mm/H
Layer Thickness
0.01-0.2mm
XY Resolution
19*24um (11520*5120)
Print Volume
218.88 x 122.88 x 220mm
(L x W x H)
Machine Volume
327.4mm x 329.2mm x 548mm (L x W x H)
Net Weight
14.5 kg
Gross Weight
19.3kg
Operation
4.0-inch Capacitive Touch Screen
Light Source
COB Light Source + Fresnel Collimating Lens (wavelength 405nm)
Connectivity
USB Interface & WiFi
Power Requirements
100-240V 50/60 Hz 24V 6A
Languages
Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese
