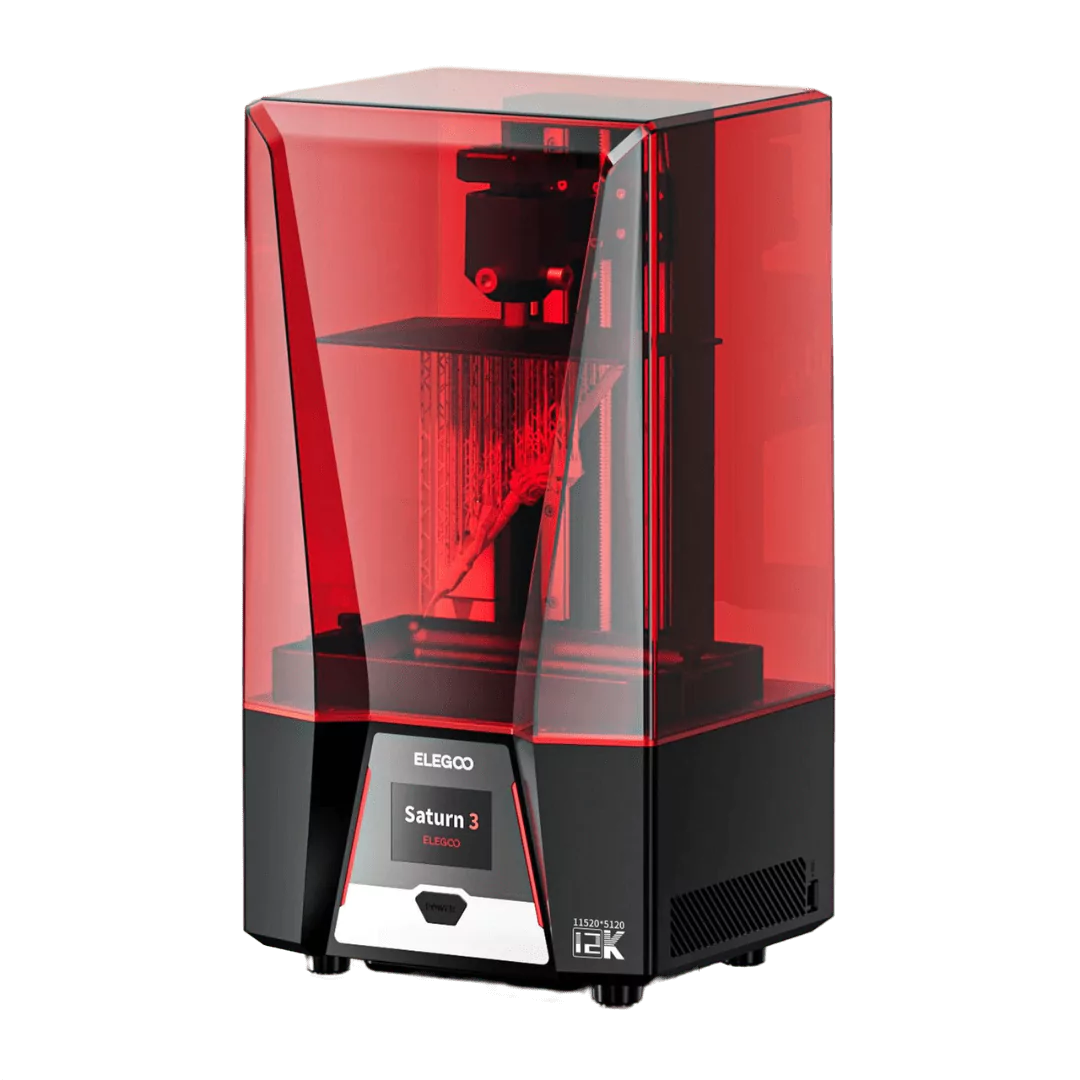

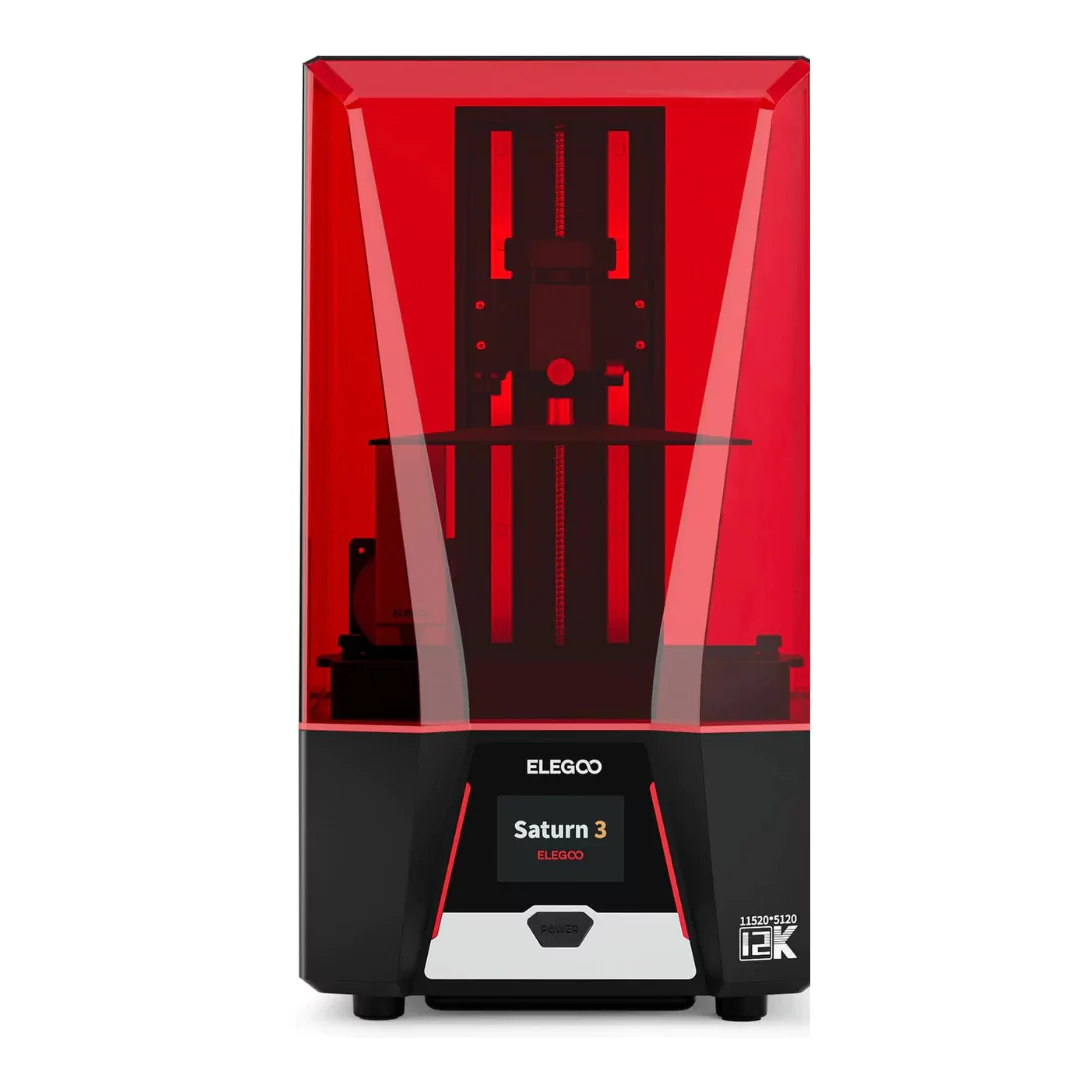

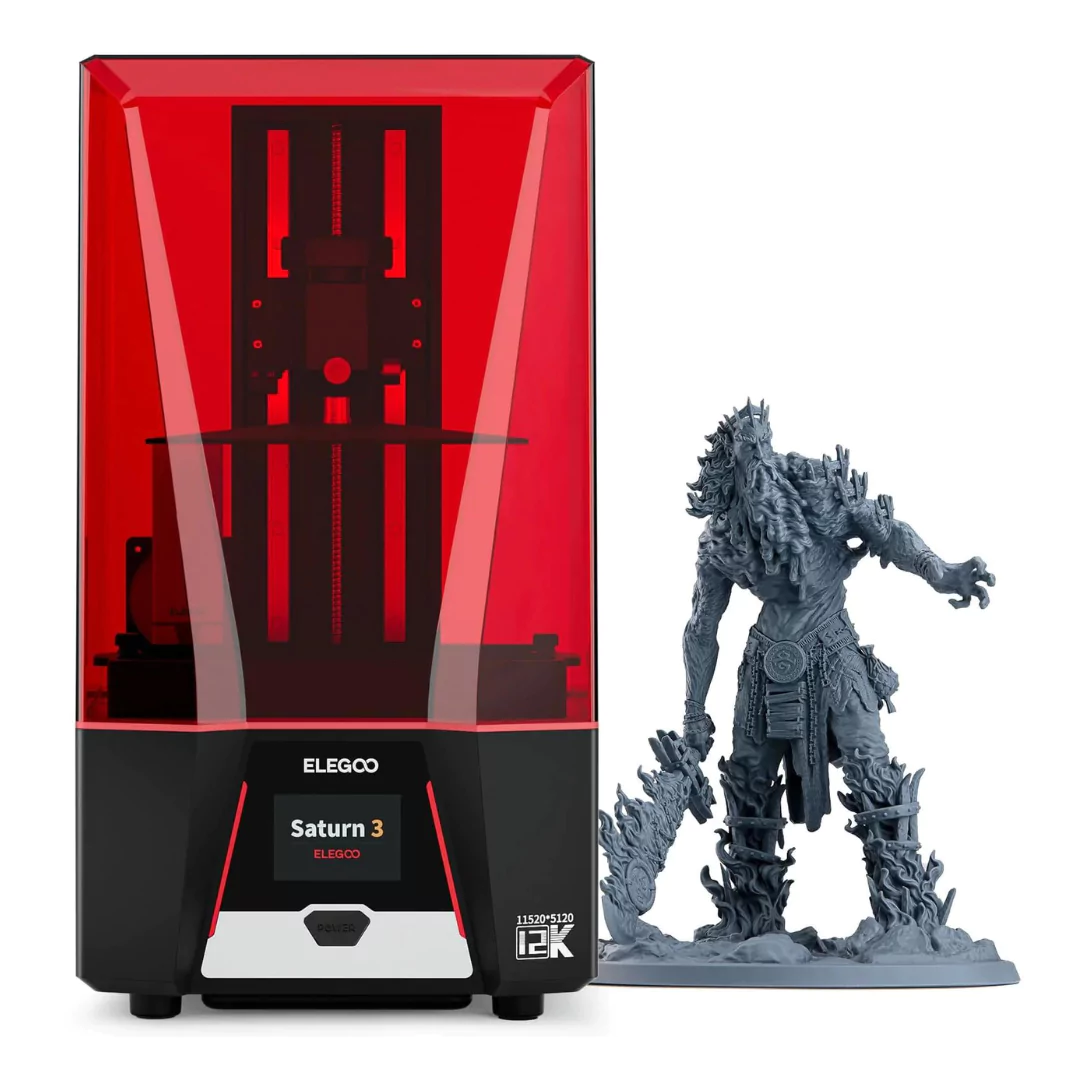

Explore precision with the Elegoo Saturn 3 MSLA 3D Printer, featuring a 10-inch 12K mono LCD with 11520x5120 resolution and an XY resolution of 19x24μm. This printer effortlessly crafts intricate models at speeds up to 70mm/h. With a sizeable build volume of 218.88x122.88x250 mm³, it's ideal for larger projects. The COB light source and Fresnel lens ensure uniform 405nm wavelength light for clear and accurate prints. The laser-carved build plate enhances adhesion, while Voxeldance Tango Software optimizes efficiency. An upgraded air purifier ensures a safer printing environment.
The Elegoo Saturn 3 features a 10-inch 12K mono LCD with a resolution of 11520x5120 and an XY resolution of 19x24 microns, allowing for the creation of intricate models with exceptional details and sharpness. The replaceable 9H tempered glass effectively protects the LCD screen from scratches and damage, extending its lifespan.

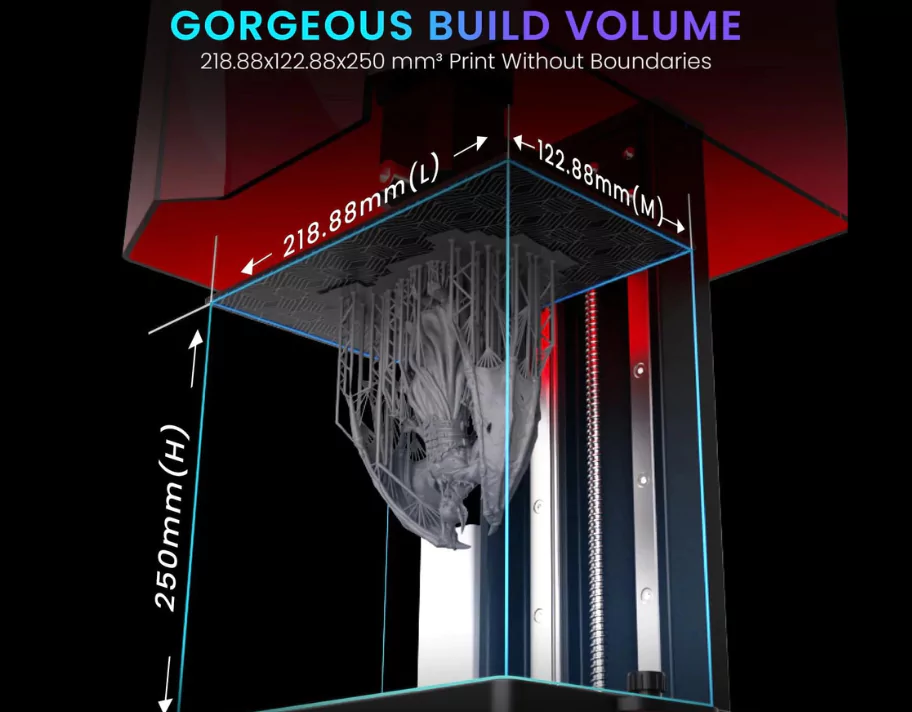

For greater flexibility and versatility, try printing larger models and more ambitious projects thanks to the generous build volume of 218.88x122.88x250 mm³/8.62x4.84x9.84 inches.

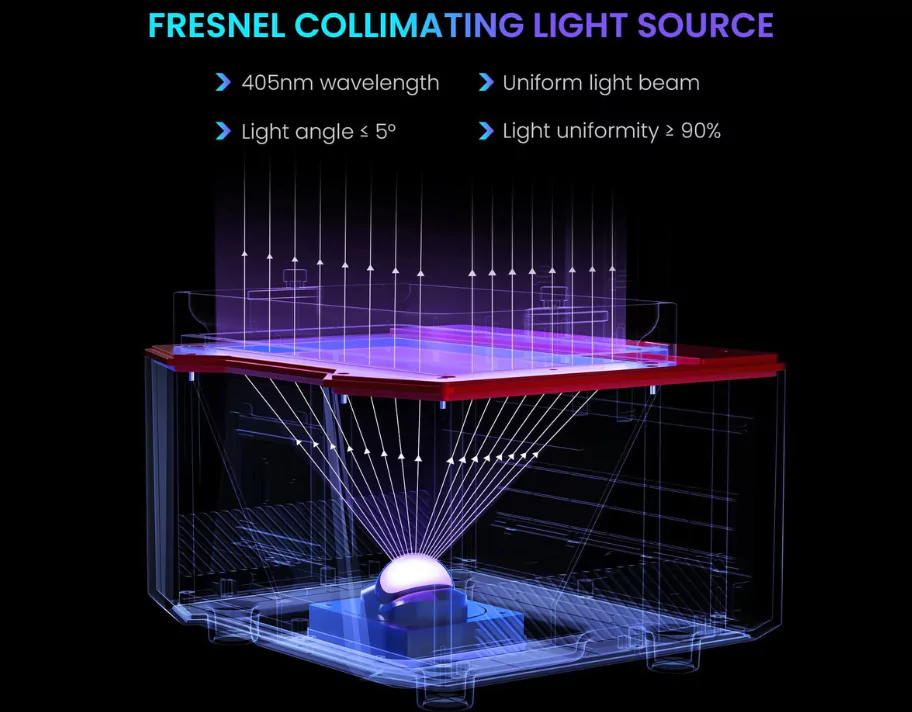

You can print incredibly impressive models with smooth surfaces and precise edges thanks to the COB light source and Fresnel collimating lens, which ensure a more perpendicular and uniform exposure across the screen, within a 5-degree light angle and 0.5% light-scattering coefficient, and 90% light uniformity. 6 double heat-conducting copper tubes and 4 cooling fans on either side of the light source make up the upgraded heat dissipation system, which allows for better heat dissipation and faster ventilation. This guarantees that your printer is operating at peak efficiency, extending its life.

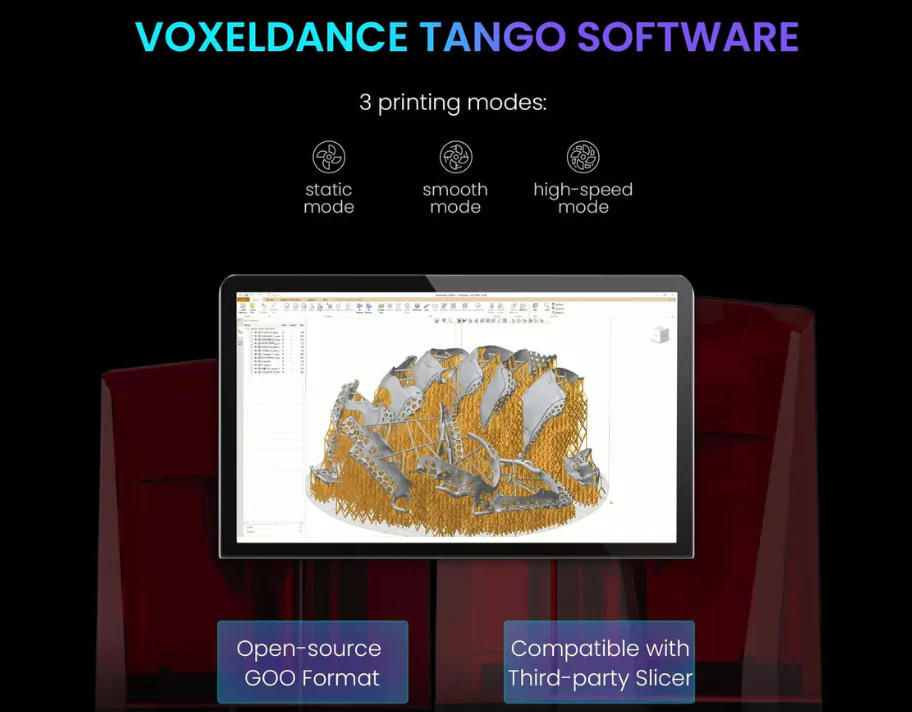

The Voxeldance Tango software is intended to improve printing efficiency by providing static and dynamic printing modes (dynamic mode includes smooth mode and high-speed mode). You can use third-party slicing software, such as CHITUBOX and Lychee Slicer, with the open-source GOO slice file format for added flexibility and convenience.

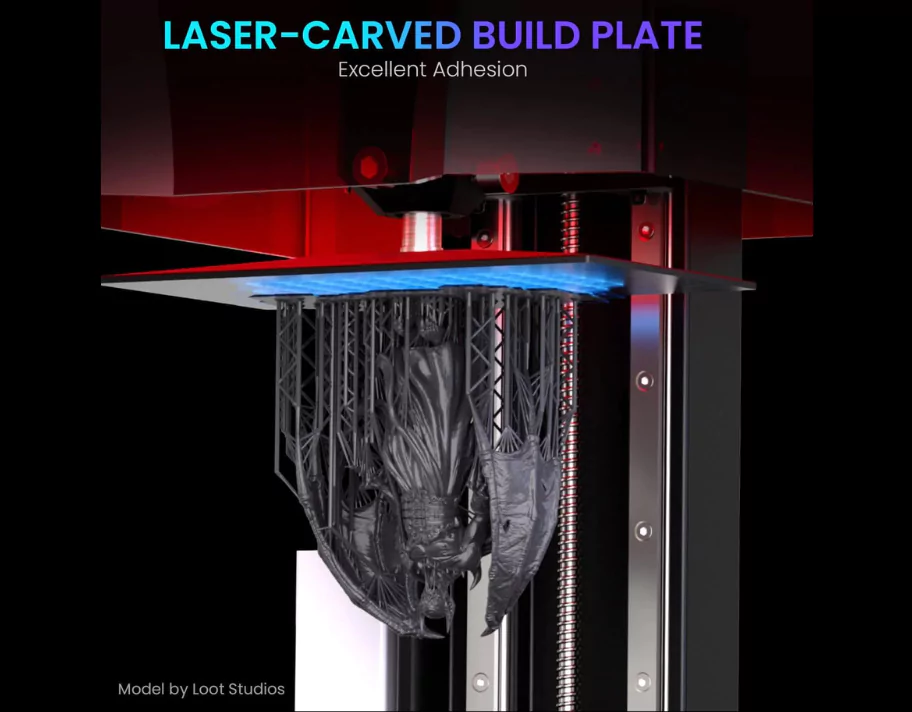

The dual linear guide rail design ensures quieter, more stable, and precise Z-axis movement, reducing riffles on final prints. Even when printing large models, the laser-carved build plate with excellent adhesion ensures that your prints adhere to the build plate. The hexagon socket levelling screws are non-slip and easy to use, making levelling quick and simple. The mid-plate of the printer has a raised step to prevent resin from flowing inside the printer, keeping your machine components safe and clean.

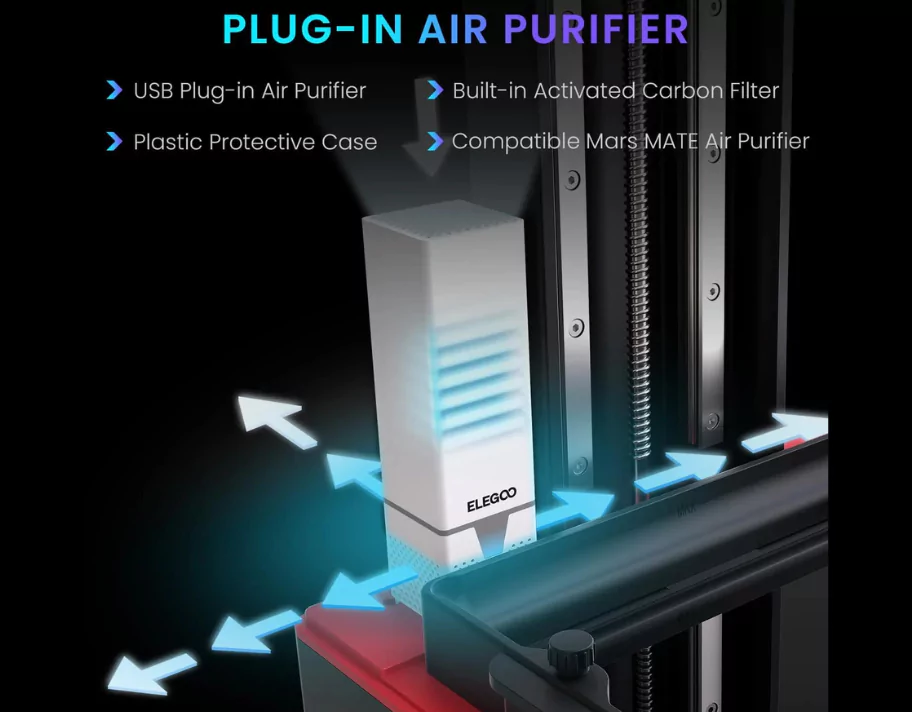

We've included an upgraded USB-powered air purifier with a plastic protective case to effectively shield the built-in activated carbon filter from damage and breakage during transportation because we care about the safety of your printing. The Elegoo Mars Mate air purifier, which will be available soon and can eliminate up to 95% of VOCs for a secure and comfortable workspace, is another option for added peace of mind.
Print Volume
218.88 × 122.88 × 250mm (L × W × H)
Display
3.5" HD ISP Touch Screen
File Transfer
USB
Max Print Speed
70mm/h
Technology
MSLA / LCD
Machine Type
Resin 3D Printer
Assembly
Fully-Assembled
Leveling System
Integrated Ball Screw (allows 4-point leveling)
Light Source
COB + Refractive Light Source
Light Wavelength
405nm
XY Resolution
19×24μm (11520 × 5120)
Build Surface Texture
Laser Engraved
Air Purifier
Included, USB-powered
Z-Axis
Dual Linear Guide Rail
Compatible Slicers
ChituBox, Lychee, VoxelDance Tango
Compatible OS
Windows 64, Mac OS, Linux
Supported File Format(s)
STL
Screen Protector
9H Tempered Glass
Slicing Format
Open-source Good Format
