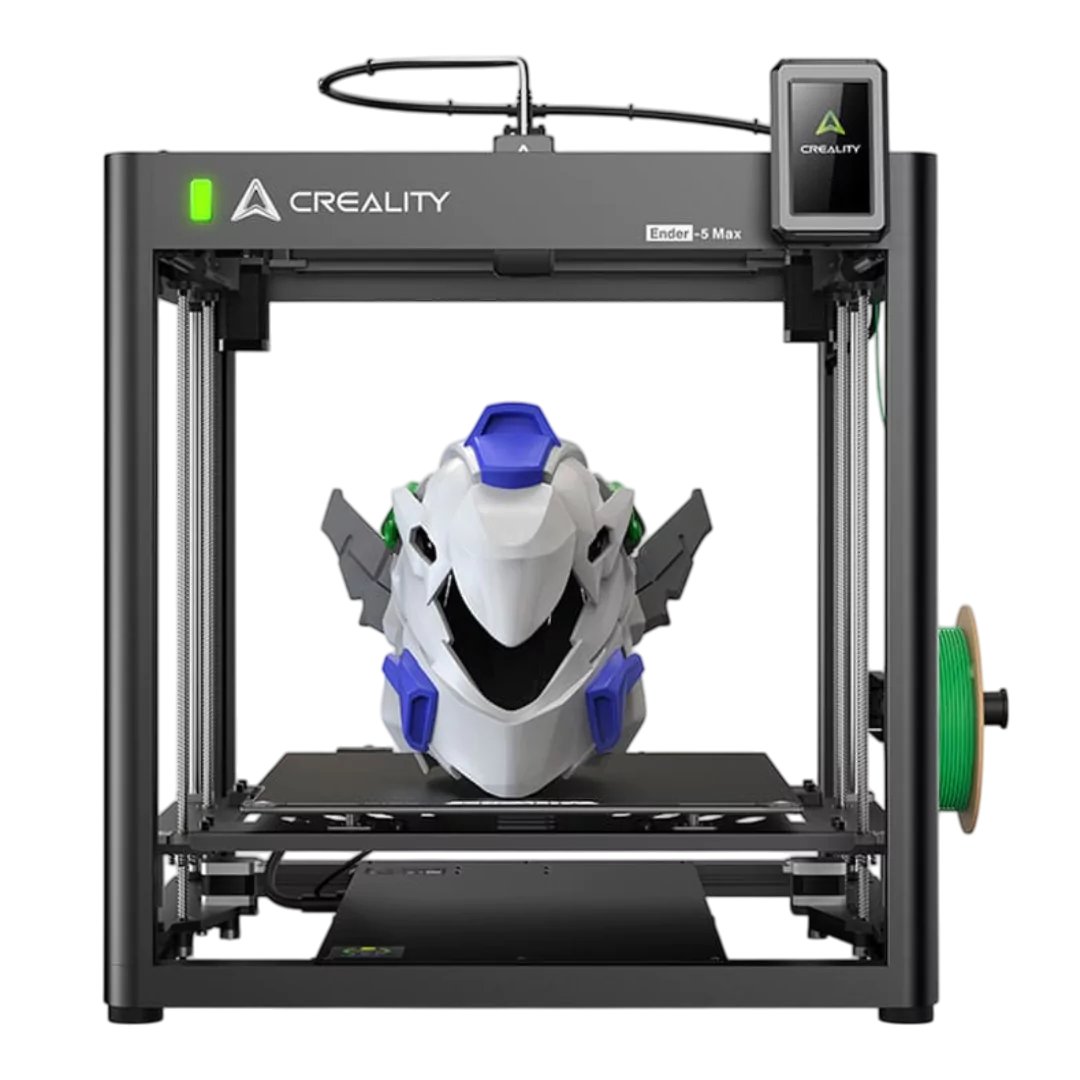

Built for High-Volume & High-Quality 3D Printing
The Ender-5 Max 3D Printer offers the efficiency and reliability you need, combining pro-level print quality with a rigid all-metal frame and 64-point auto bed leveling. It delivers ultra-fast printing with an industry-leading speed of 700 mm/s in a CoreXY structure. With an enormous 400mm³ build volume, it's ideal for printing bigger or more parts at once. Tailored for print farms, it supports multi-printer management via WLAN and features a tri-color indicator light. An optional enclosure is available to maintain a higher ambient temperature, ideal for engineering-grade prints.
Experience professional-grade results with the Ender-5 Max. Every print mirrors your design dimensions accurately, with smooth surfaces and strong, uniform layer adhesion from bottom to top. Ideal for meeting the most demanding client expectations.
Achieve the perfect start every time with the 64-point fully automatic bed leveling system. The Ender-5 Max ensures a flat, even first layer—no manual calibration required. Just hit print and enjoy consistent quality from the very first pass.

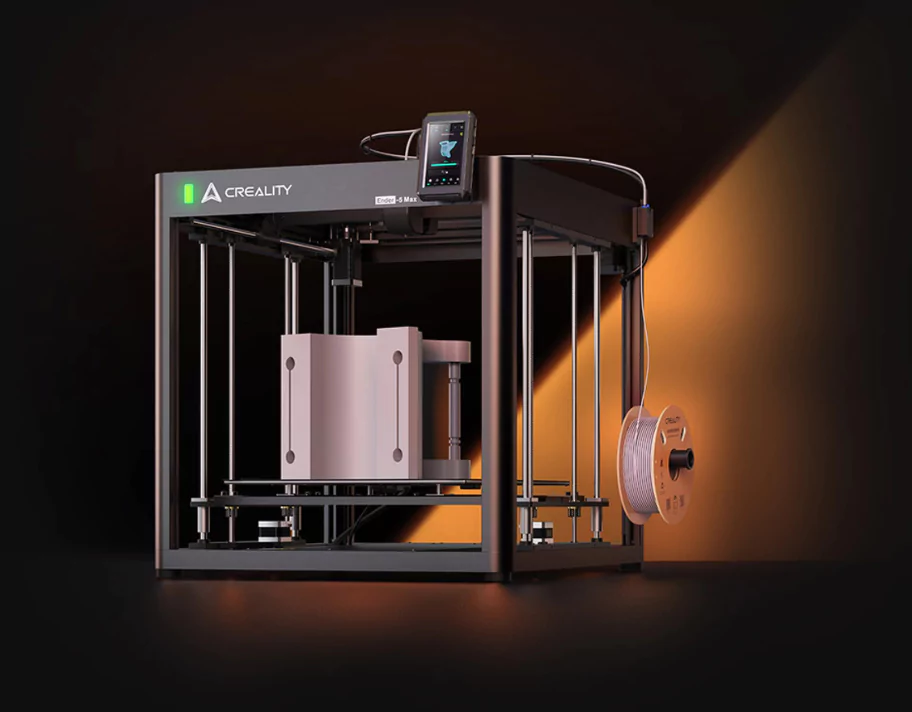

The Ender-5 Max is built to deliver. Its robust frame, made from enlarged die-cast aluminum alloy, minimizes vibration for ultimate print stability. A high-precision linear rail on the X-axis guarantees smooth, deviation-free movement—ensuring repeatable accuracy.
Equipped with two independent Z-axis motors, each paired with dual leadscrews and supported by linear rods, the Ender-5 Max effortlessly lifts prints up to 5 kg. The result: no wobble, no layer shift—just consistently flawless layers.
Designed for versatility, the Ender-5 Max delivers stable, clog-free performance in a wide temperature range of 5°C to 40°C. Whether in warm or chilly environments, your prints remain reliable and high-quality.

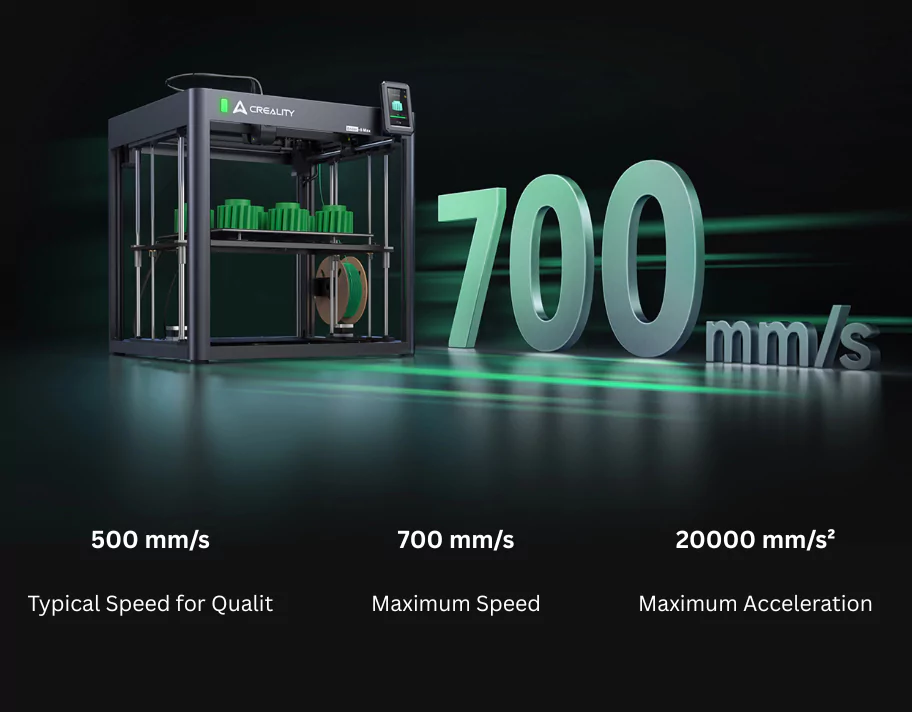

Ender-5 Max redefines speed in the CoreXY category. Equipped with powerful 42-76 stepper motors on both X and Y axes, it delivers high-speed movement with exceptional precision. Print up to 700 mm/s and dramatically reduce turnaround times.
Create more in a single print job with an expansive 400 × 400 × 400 mm build area. Whether you're printing parts in bulk or manufacturing a large one-piece prototype, Ender-5 Max gives you the freedom to scale with ease.
The dual-gear extruder is built tough, tested for over 500 hours of continuous extrusion. It provides consistent filament feeding with minimal wear, ensuring 24/7 productivity with less need for maintenance.

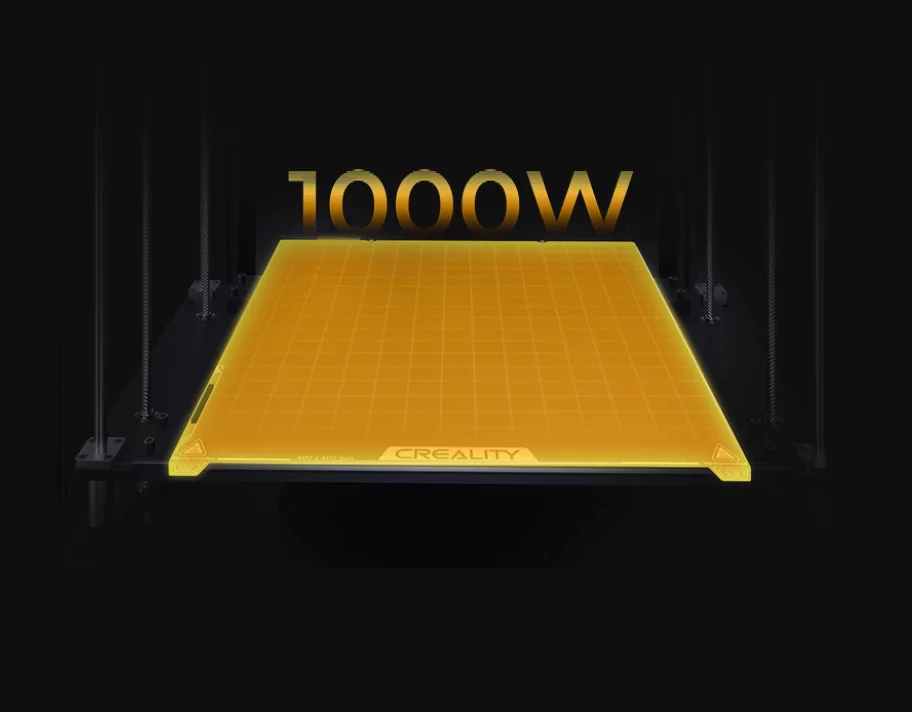

Get up and running faster with a powerful 1000W aluminum heatbed, capable of reaching 80°C in just 200 seconds. It supports a wide range of engineering-grade filaments including PLA, PETG, PA, ABS, ASA, and more.
This newly designed epoxy build plate enhances bed adhesion even at lower temperatures, improving overall energy efficiency. It’s also flexible—making it easy to remove finished prints without damage.
Easily manage multiple Ender-5 Max printers from a single PC using the Creality Print slicer. With pre-configured profiles for various filaments and nozzles, you can group and control printers over WLAN, streamlining your entire production process for maximum efficiency.
A built-in tri-color light clearly displays the printer’s operational status from up to 10 meters away. No more walking up to each unit—monitor your entire fleet at a glance and keep workflows uninterrupted.
Designed for international use, the Ender-5 Max automatically adapts to input voltage with no manual adjustment needed. Built-in dual fuses on the heatbed provide additional safety and peace of mind.
8GB Internal Storage
Store more print files directly on the printer for streamlined mass production.
Silent Printing Mode
Operates at ≤ 55 dB* for quieter environments, ideal for offices or shared spaces.
Seamless Wireless Connectivity
Effortlessly transfer print files over Wi-Fi for greater convenience and workflow efficiency.
Auto Filament Load & Unload
Easily switch filaments without hassle.
Active Input Shaping
Reduces vibrations and ringing for smoother surfaces.
Printing Technology
FDM fused deposition molding
Build Volume
400 × 400 × 400 mm
Printer Dimensions
649 × 721 × 850 mm
Package Dimensions
732 × 679 × 410 mm
Printer Net Weight
≤ 25.9 kg
Gross Weight
≤ 31.9 kg
Printing Speed
≤ 700 mm/s
Acceleration
≤ 20000 mm/s²
Printing Accuracy
100±0.1 mm
Layer Height
0.05-0.3 mm
Extruder
Direct drive extruder
Filament Diameter
1.75 mm
Nozzle Diameter
0.4 mm (compatible with 0.6/0.8 mm nozzle)
Nozzle Temperature
≤ 300 ℃
Heatbed Temperature
≤ 100 ℃
Build Plate
Epoxy flexible build plate
File Transfer
USB drive/
Wi-Fi
Leveling Mode
64-point auto leveling
Indicator Light
Red/Green/Yellow
Display Screen
4.3" color touch screen
Camera
Optional
Power Loss Recovery
Yes
Filament Runout Sensor
Yes
Input Shaping
Yes
Lighting kit
Yes
Sleep Mode
Yes
Rated Voltage
100-240V~AC 50/60 Hz
Rated Power
1250W
Operating Temperature
5 - 40 ℃
Supported Filaments
Hyper PLA/PLA/PETG/TPU95A/ABS/ASA/PLA-CF/PA/PLA-Silk
Printable File Format
G-code
Slicing Software
Creality Print 5.1 or later
File Formats for Slicing
STL/OBJ/3MF
App for Cloud Printing
Creality Cloud
