CoreXZ 3D Printer

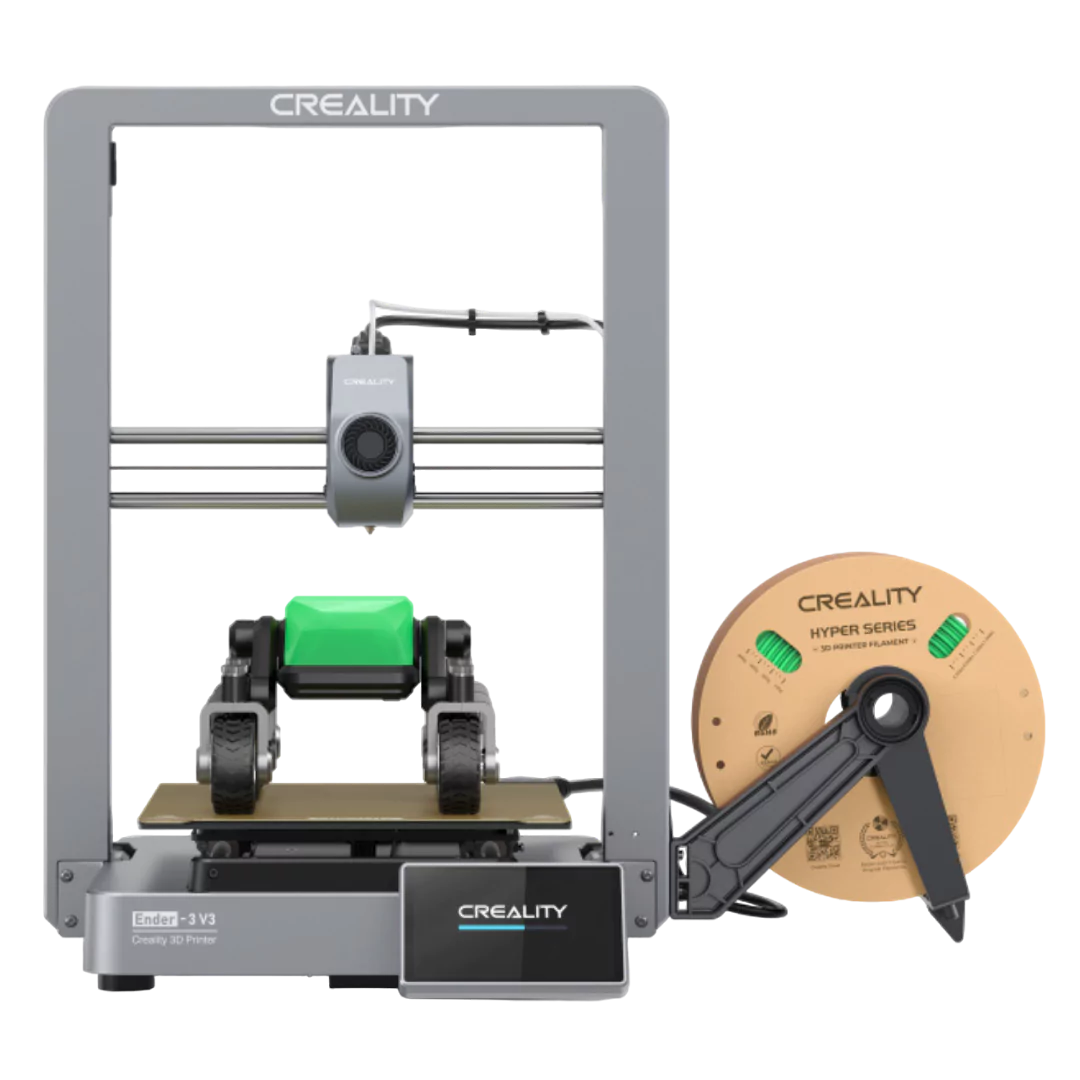

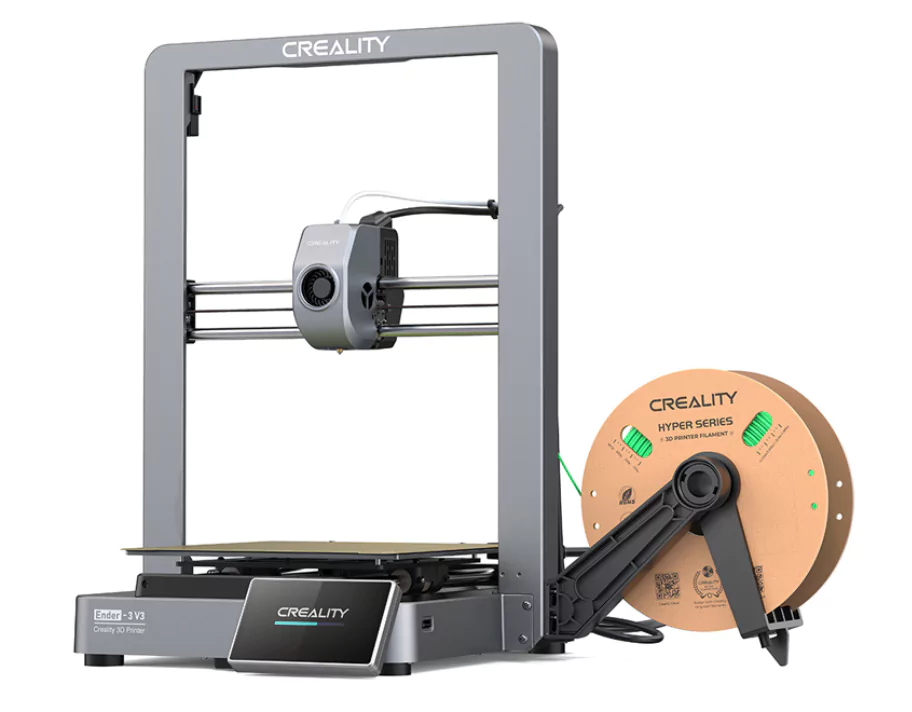

Presenting the Ender-3 V3 3D Printer Enjoy printing that is steady and quick thanks to its creative new design. This printer's sophisticated Swift CoreXZ motion mechanism guarantees accurate and effective operation. The dependable and unclogging extruder kit ensures seamless and continuous printing sessions. Better stability is also provided by the robust new metal construction, which elevates the Ender-3 V3 to the top of the list for superior 3D Printing.
Ender-3 V3 has a rigged X and Z axis that allows two high-torque motors to operate together
for rapid reaction.
0.03s*
(0 to 600mm/s acceleration)

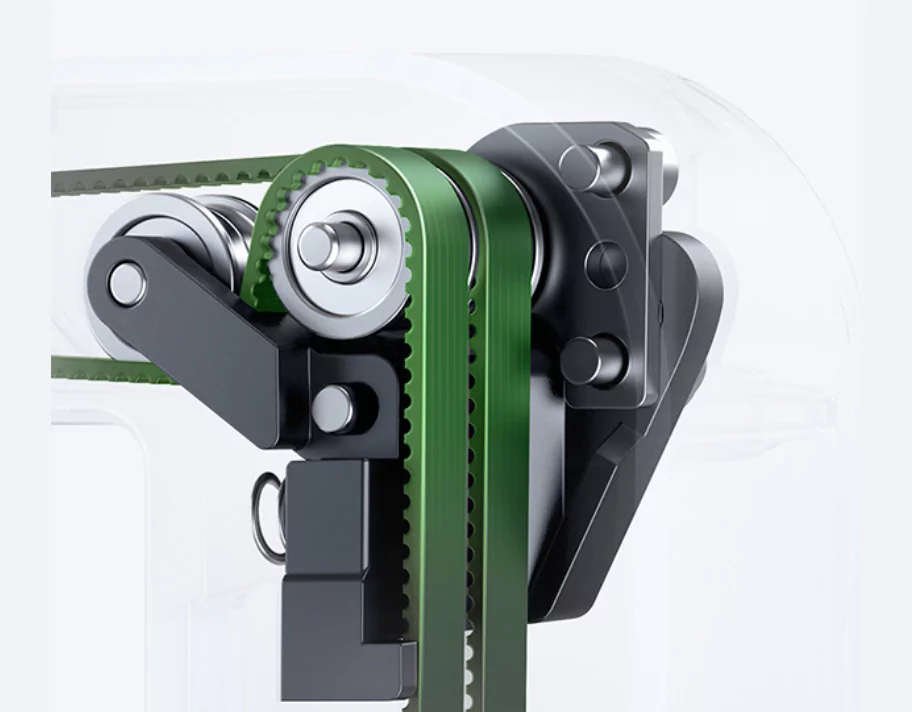

Ender-3 V3 automatically tensions its XZ timing belts. Eliminate belt slides and jams.

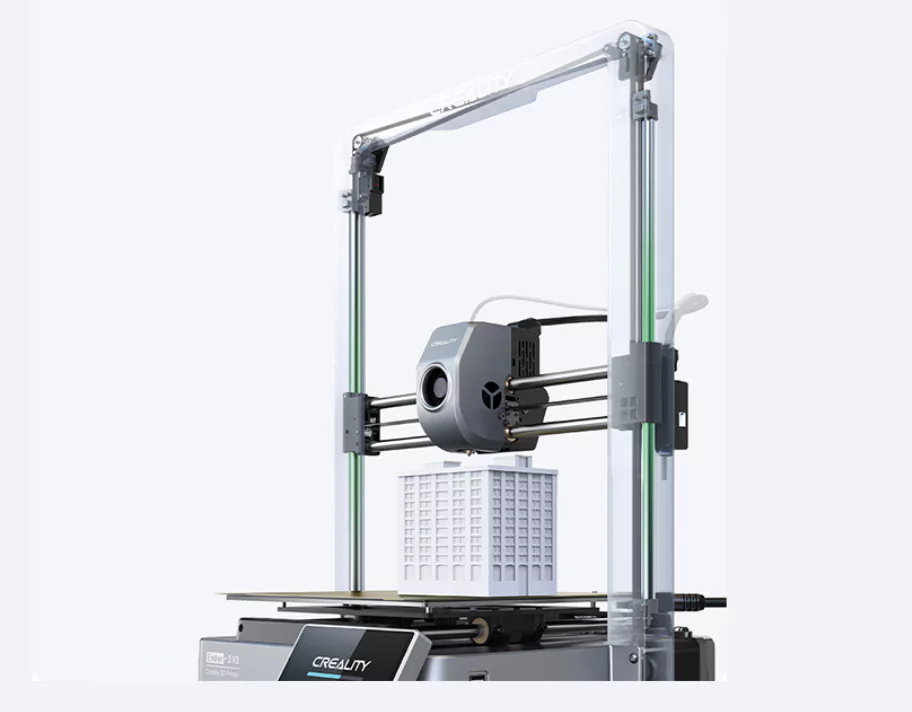

The Z-axis can now position more accurately than ever before thanks to precise linear rods
and timing belts.

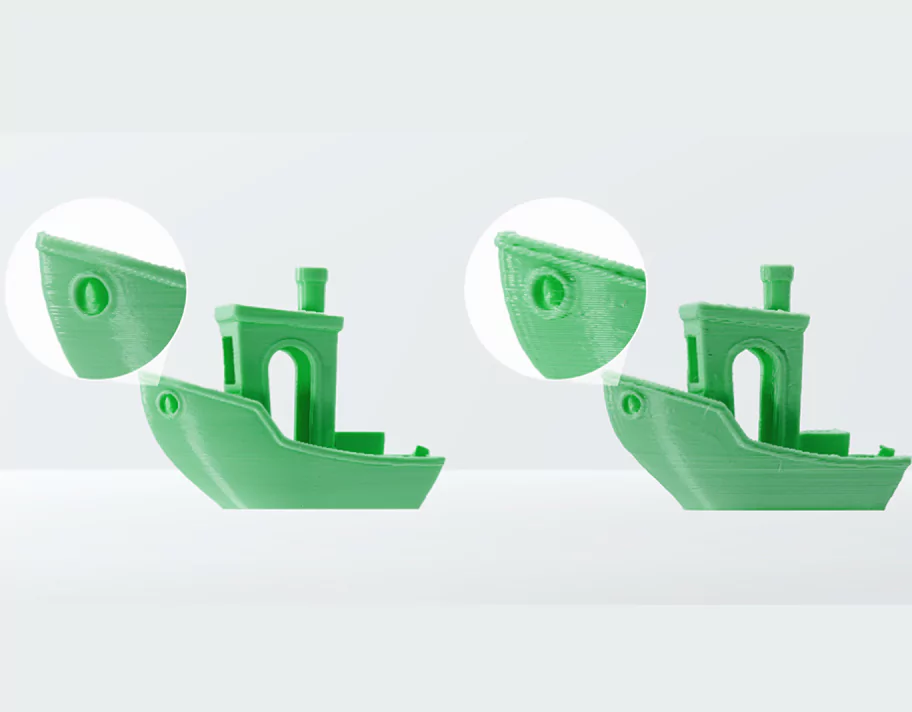

This implies less Z-banding in your 3D Printing.
Z-axis positioning
accuracy ≤15㎛*

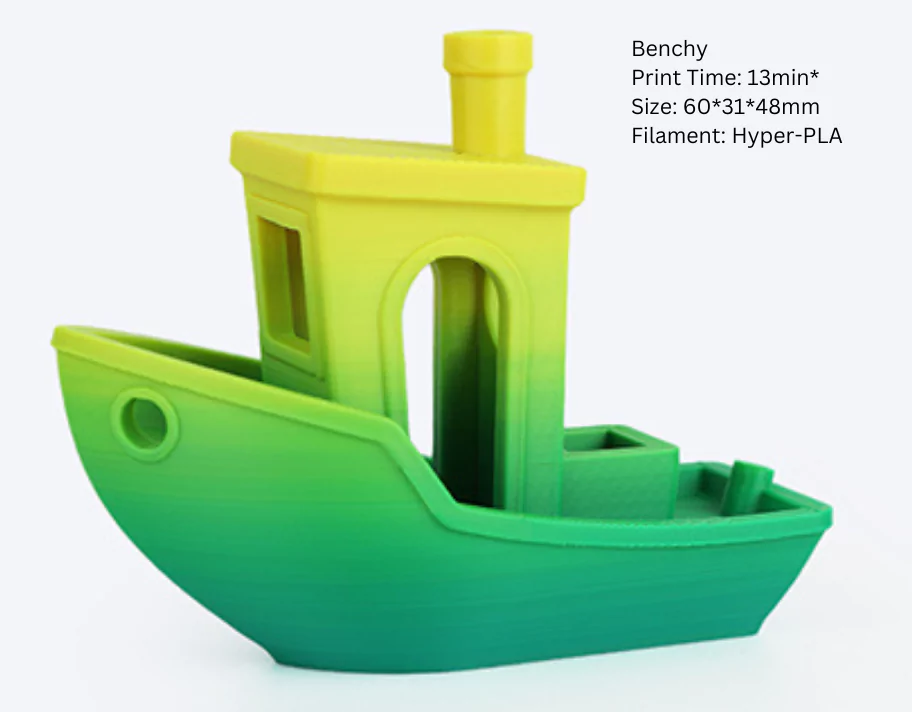

Bed slingers now have a new benchmark since the Ender-3 V3 can print 12
times faster* than a
standard i3-style 3D Printer.
Using Creality Hyper PLA filaments, it prints better and faster.
Max printing speed :
600mm/s*
Max acceleration : 20000mm/s²*

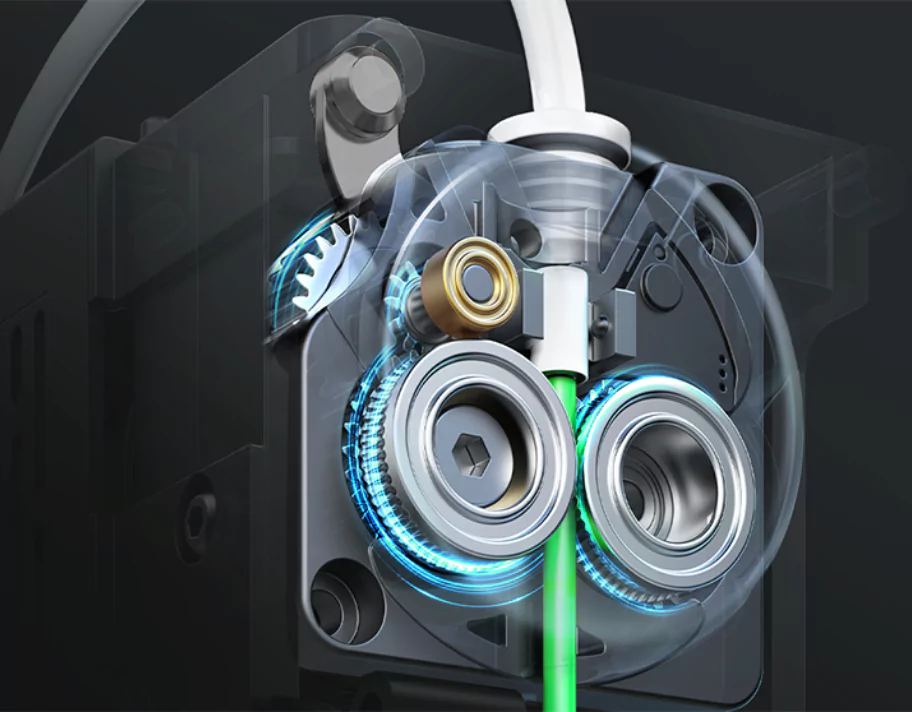

The Ender-3 V3's direct drive extruder is enhanced with a bolster spring and a ball plunger, ensuring a firm grip on the filament without any slack. This design delivers over 1000 hours of clog-free extrusion, providing reliable and consistent performance.

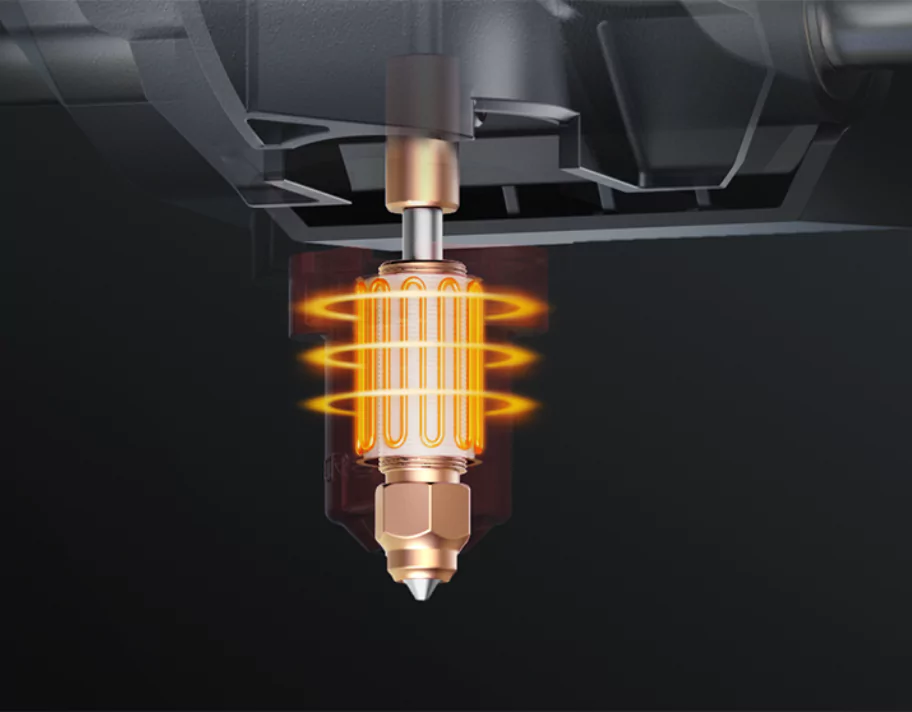

A powerful ceramic heater encircles the hotend, ensuring it can fully melt ABS, PETG, and other high-temperature filaments with ease. This efficient heater can reach 300℃ in just 75 seconds, making it ideal for rapid and reliable 3D Printing.

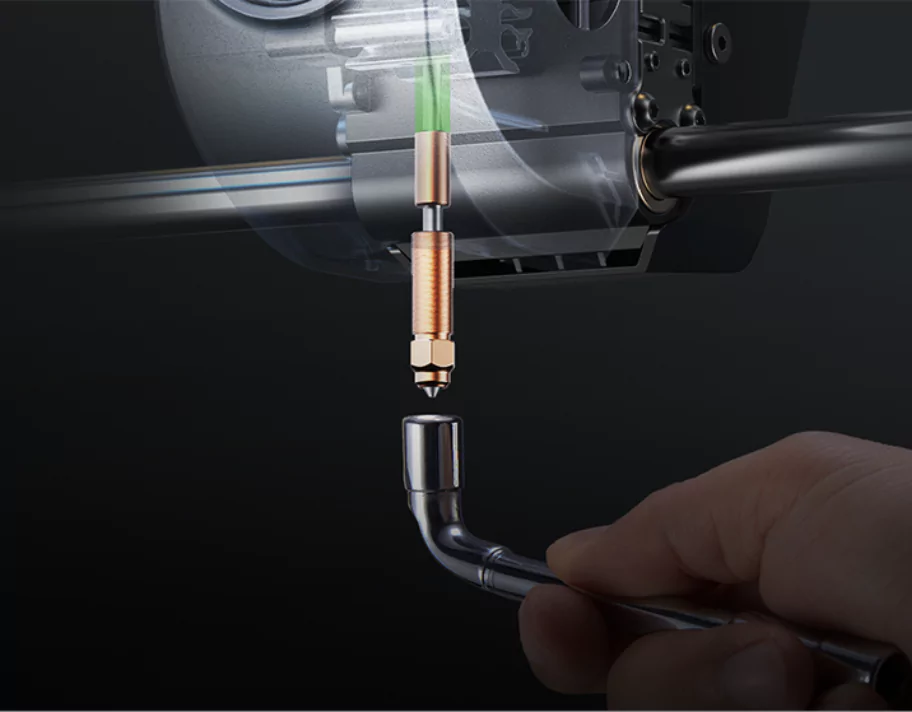

The durable steel-tipped copper nozzle, integrated with a titanium alloy heatbreak, effectively blocks heat creep and ensures smooth feeding. This design allows for easy, one-handed swapping, providing both convenience and great durability.
The gantry and base of the Ender-3 V3 are crafted from single pieces of aluminum alloy through integrated die-casting. This design, with fewer bolts and seams, ensures exceptional solidity and stability for the printer.
Both the gantry and base of the printer are constructed from ADC12 aluminum alloy, known for
its
exceptional mechanical strength.
Tensile Strength ≥205MPa*
Brinell Hardness ≥75HBW*

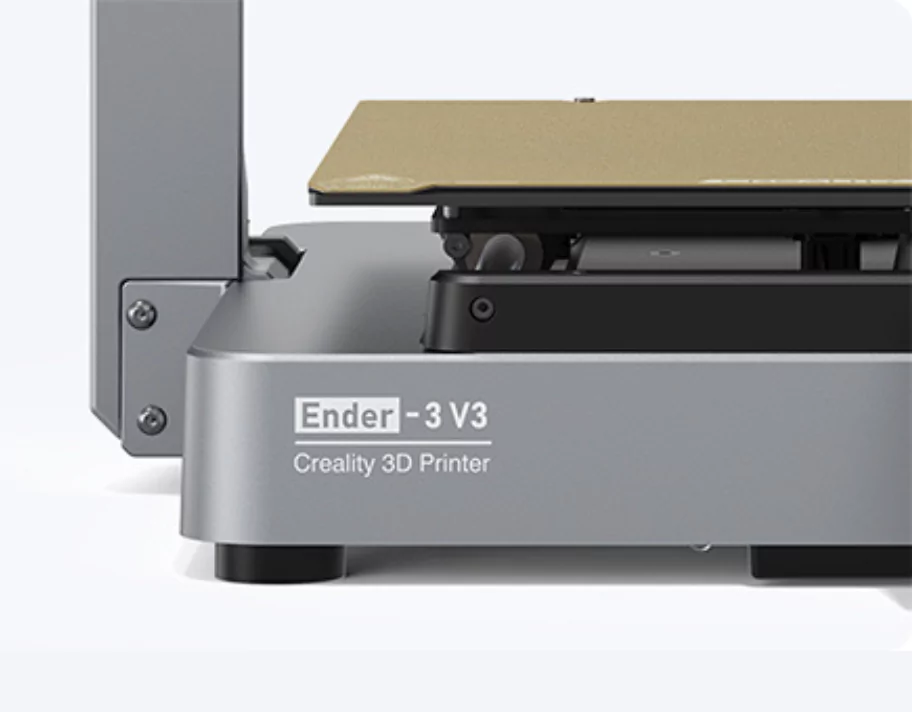

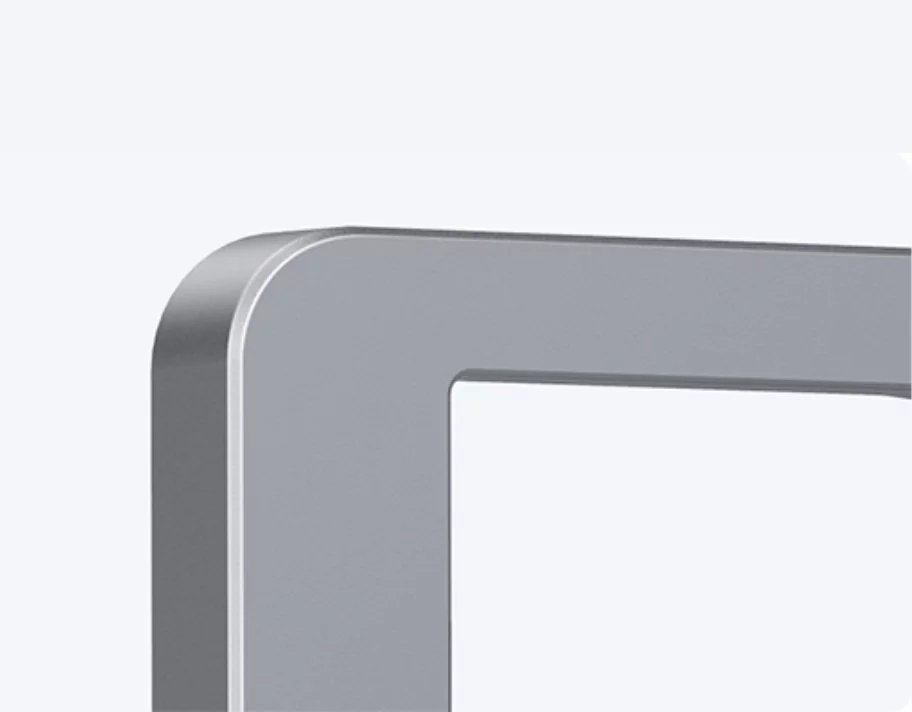

To make the Ender-3 V3 appear more integrated and attractive, minor curves are added to soften the edges and corners.

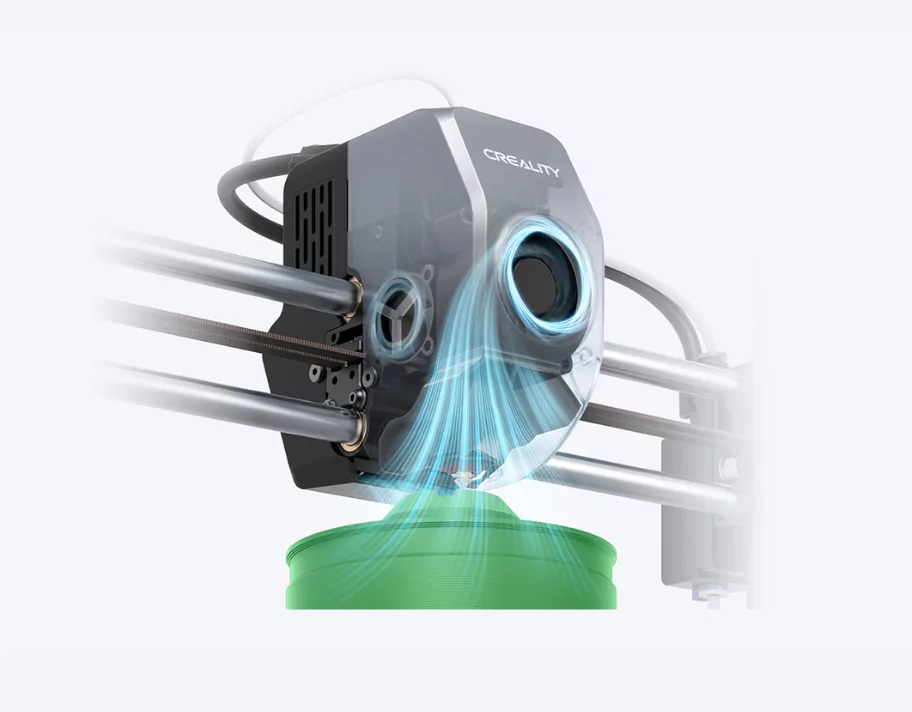

The printhead of the Ender-3 V3 3D Printer is equipped with two fans, one at the front and one at the back, ensuring rapid and even cooling of the freshly printed sections. This efficient cooling system eliminates issues like drooping, warping, and stringing. Additionally, the printhead fans feature dynamic balancing, which minimizes vibrations for smoother printing.

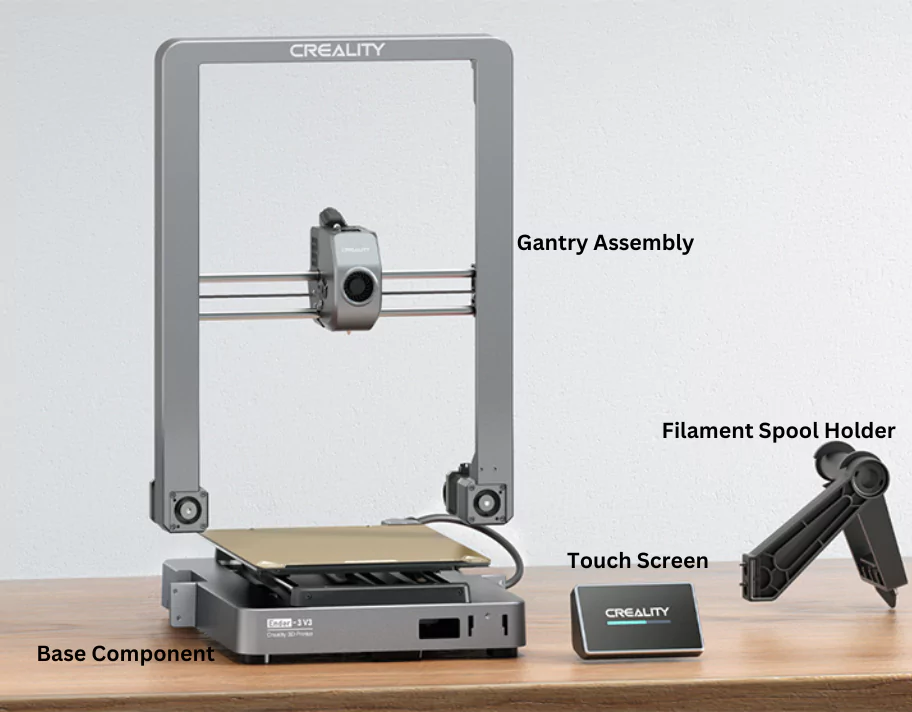

The Ender-3 V3 arrives in highly pre-assembled modules, making it incredibly user-friendly. Even first-time 3D Printer users can have it fully assembled in just 10 minutes.
A 4.3" screen responds to touches smoothly.
It vividly shows the model preview and temperature leveling procedure thanks to its HD
resolution*.
Motion graphics at *800x480 pixels at 216.97 PPI

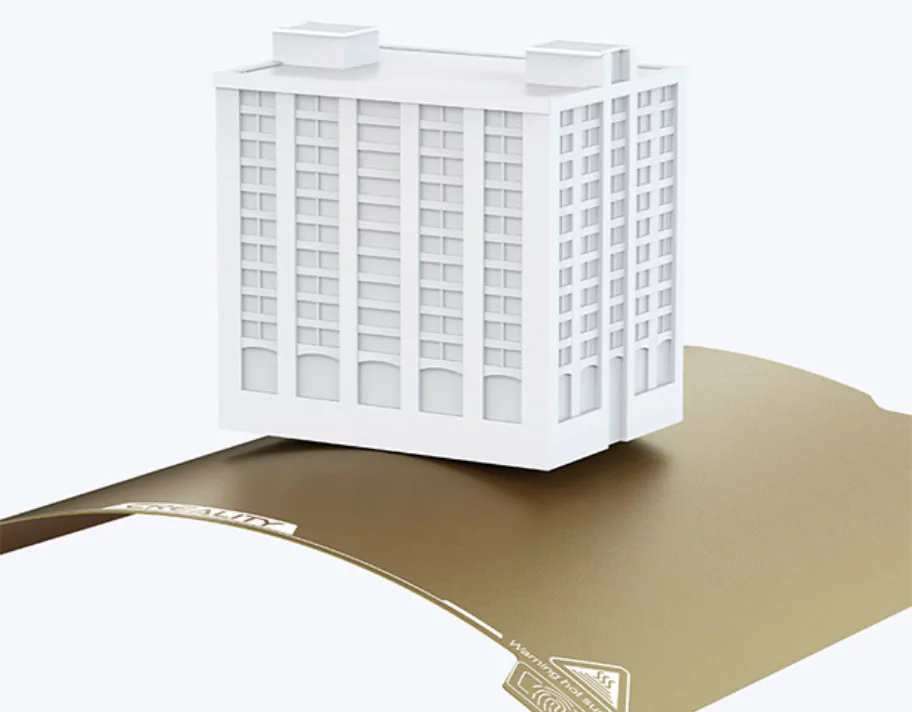

The PEI layer adheres to models produced in various materials. With the spring steel foundation, models can be easily released with a minor bend.

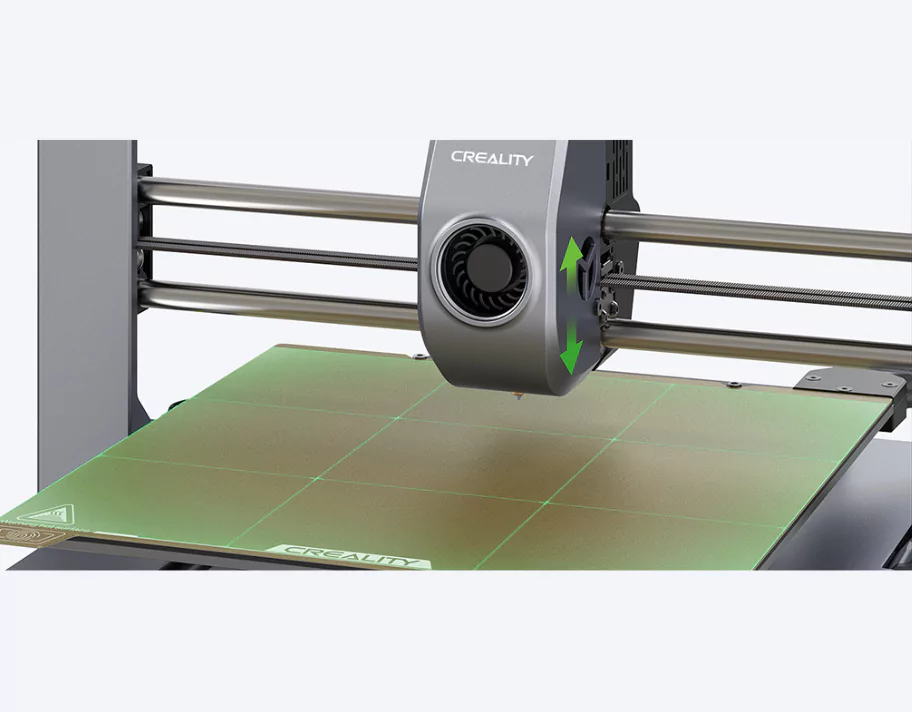

One-tap Calibration
Auto Z Offset & Leveling
Auto Input Shaping Test
Build Volume
220*220*250mm
Product Dimensions
358*374*498mm
Package Dimensions
541*418*245mm
Net Weight
7.83kg
Printing Speed
≤600mm/s
Acceleration
≤20000mm/s²
Printing Accuracy
±0.2mm
Extruder
New high-speed direct drive extruder
Layer Height
0.1-0.35mm
Filament Diameter
1.75mm
File Transfer
USB drive / WLAN / Creality Cloud
Nozzle Diameter
0.4mm
Build Plate
PEI flexible build plate
Nozzle Kit
Quick-swap nozzle (hardened steel tip) integrated with heatbreak
Nozzle Temperature
≤300°C
Input Shaping
Yes (G-sensor included)
Leveling Mode
Auto Leveling
Display Screen
4.3" HD color touch screen
Mainboard
32-bit
Connectivity
WiFi
Printable File Format
G-code
Power Loss Recovery
Yes
Filament Run-out Sensor
Yes
AI Camera
Optional
Rated Voltage
100-120V~, 200-240V~, 50/60Hz
Rated Power
350W
Slicing Software
Creality Print
File Formats for Slicing
STL, OBJ, 3MF
Supported Filaments
PLA, TPU, PETG, ABS, PLA-CF, PETG-CF, CR-carbon
Heatbed Temperature
≤110°C
