Anycubic Vyper 3D Printer
anycubic logo

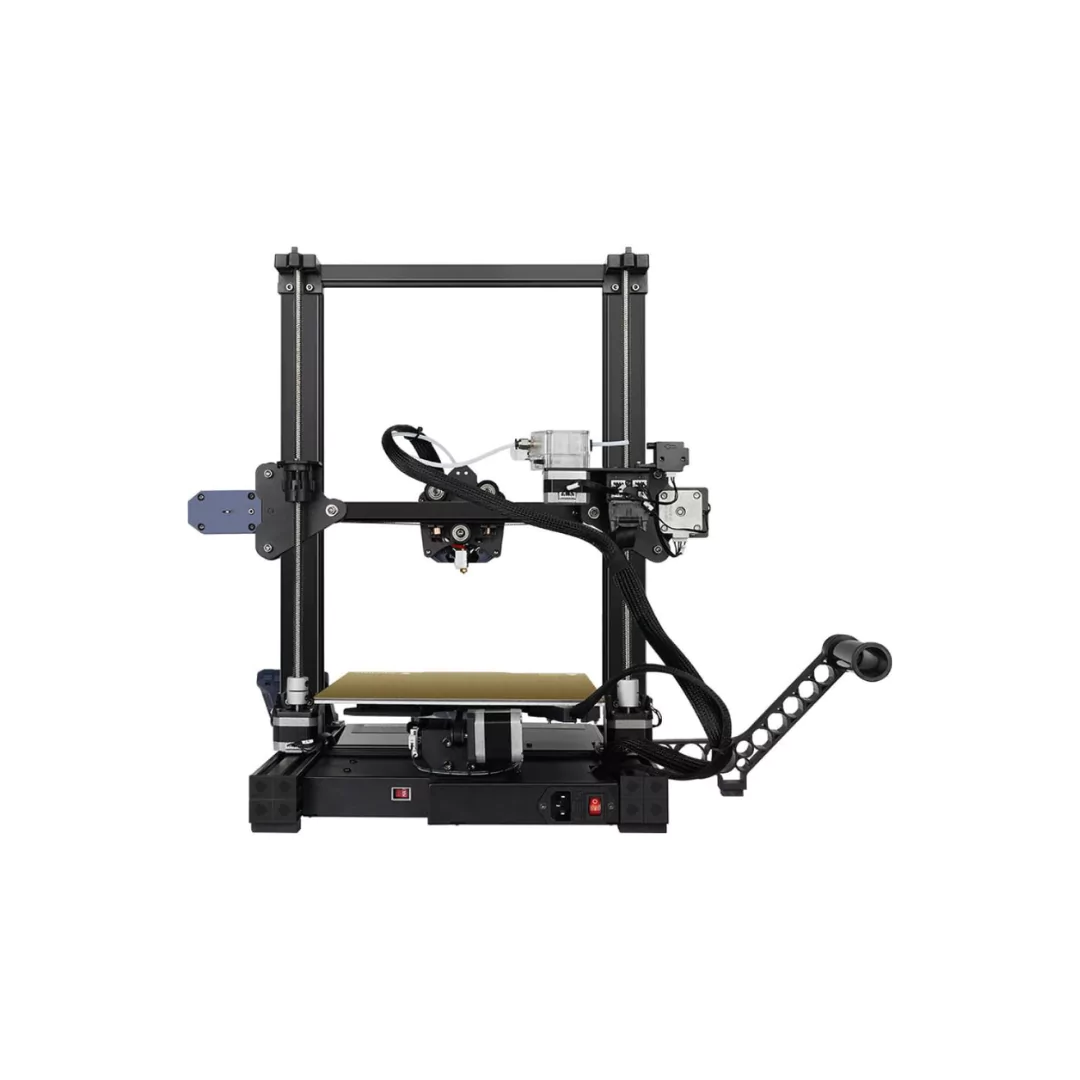

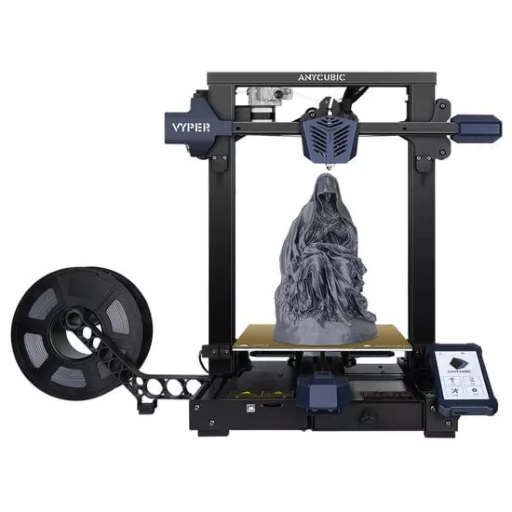

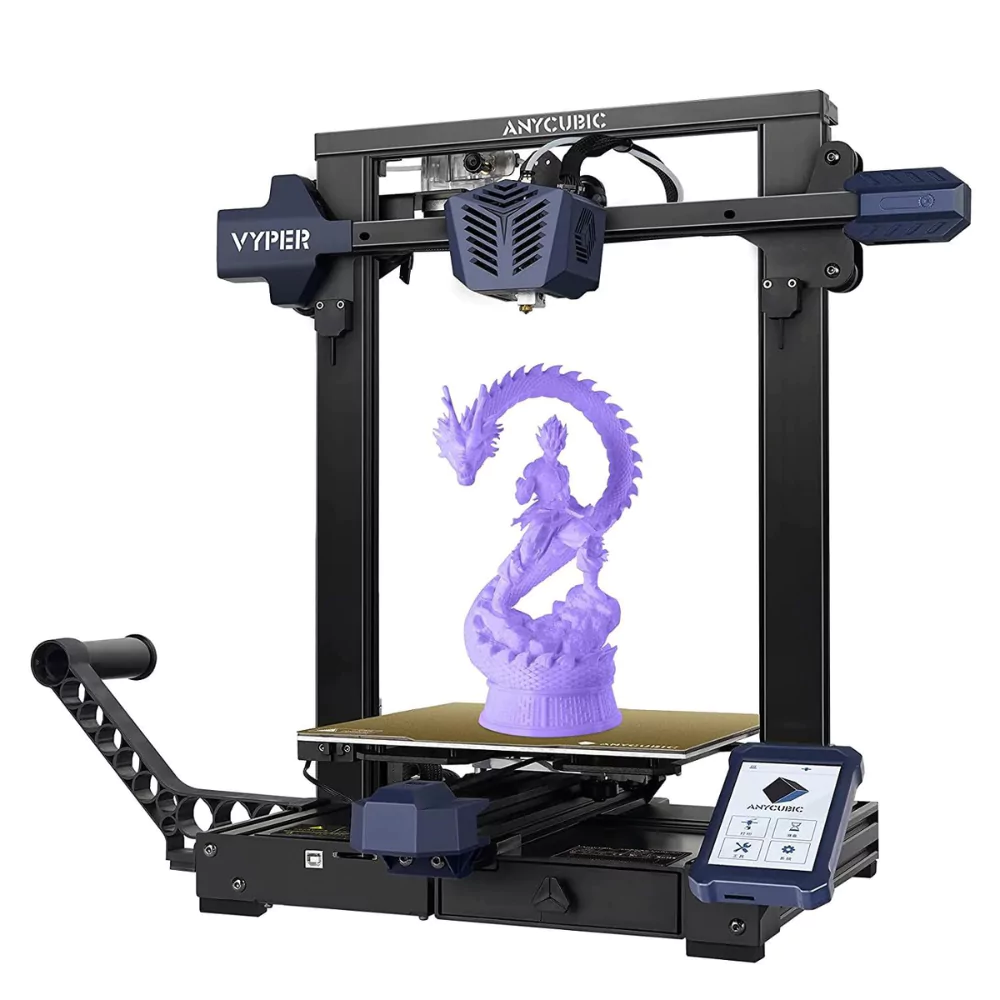

Anycubic Vyper

Auto Leveling 3D Printer

Anycubic Vyper 3D 3D Printer is auto leveling 3D Printer. Has stepper drivers and large-size touch screen. Uses fused deposition modeling Printing technology. Size of the machine is 508mm×457mm×516mm.

Anycubic Vyper details

Features Of Anycubic Vyper


Anycubic vyper has Stepper Drivers feature

Stepper Drivers

Anycubic vyper has Auto Leveling feature

Auto Leveling

Anycubic vyper has Fast Assembly feature

Fast Assembly

Anycubic vyper has Large size touch screen

Large-size Touch Screen

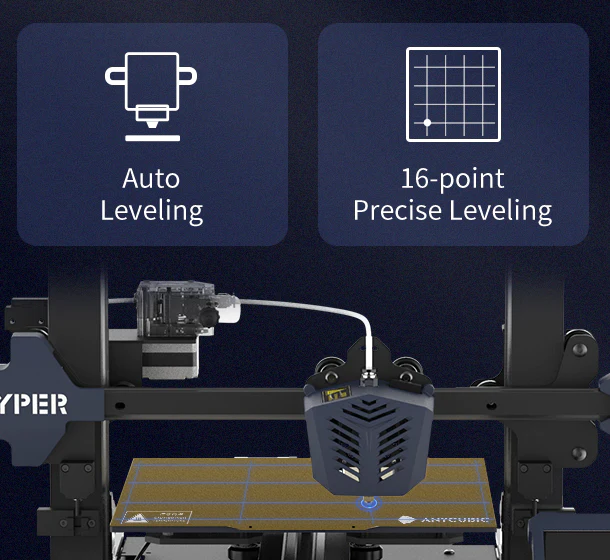

Anycubic Vyper has Auto leveling facility
Auto Leveling

Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.Precise pressure strain gauge,16-point precise leveling

Anycubic vyper has high precision double screw
High-precision double screw

The machine’s double screw runs synchronously, thus bringing more stable operation and smaller zeroing error

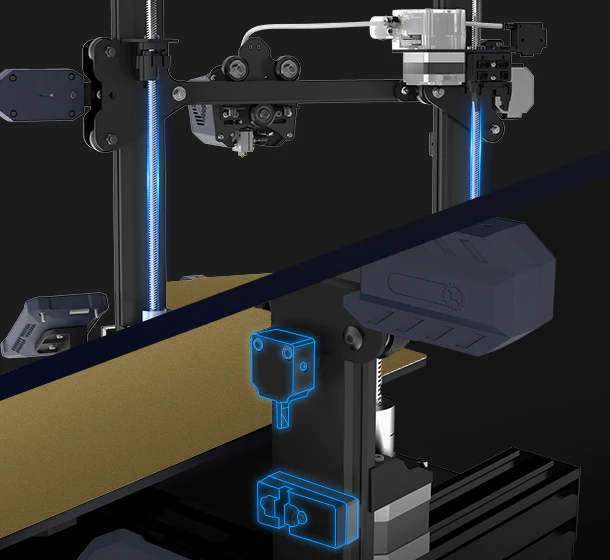

Anycubic vyper has Double photoelectric limit
Double photoelectric limit

The machine can automatically compensate the difference of the hot bed to make Z-axis zeroing more accurate.

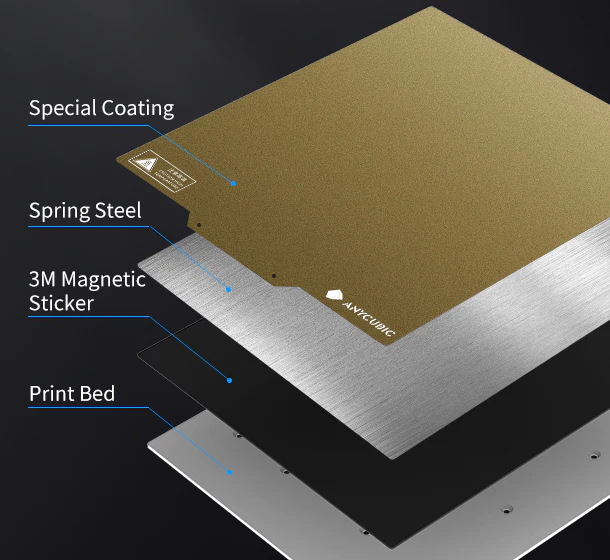

Anycubic vyper has Spring steel magnetic platform
Spring steel magnetic platform

High toughness; Scratch-resistant coating; Easy model removal. It is compatible with a wide range of filaments

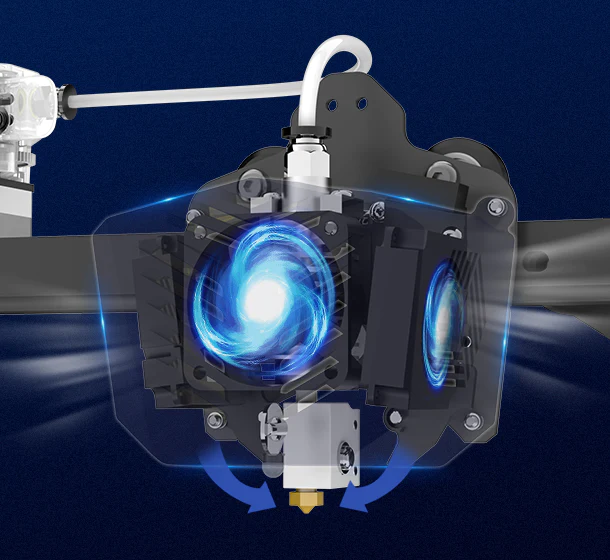

Anycubic vyper has Dual cooling fans
Dual cooling Fans

The Printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The Printing speed is faster which can reach 100mm/s.

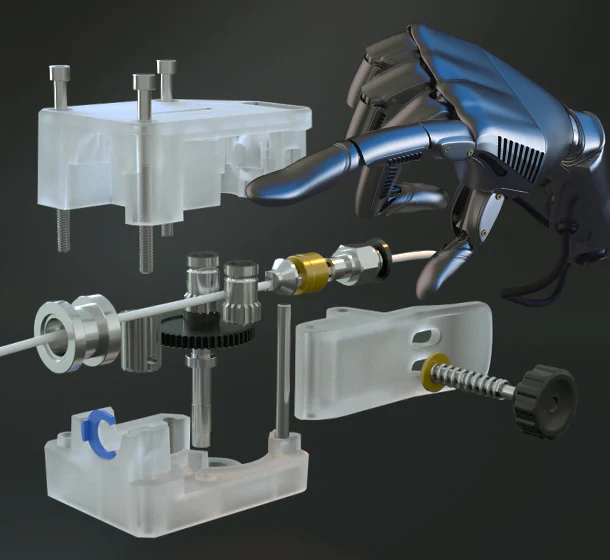

Anycubic vyper has Double gear extrusion system
Double-gear extrusion system

The extrusion system is able to reduce the chances of filament tangle and is compatible with PLA & flexible filaments. Strong extrusion force; Path optimization.

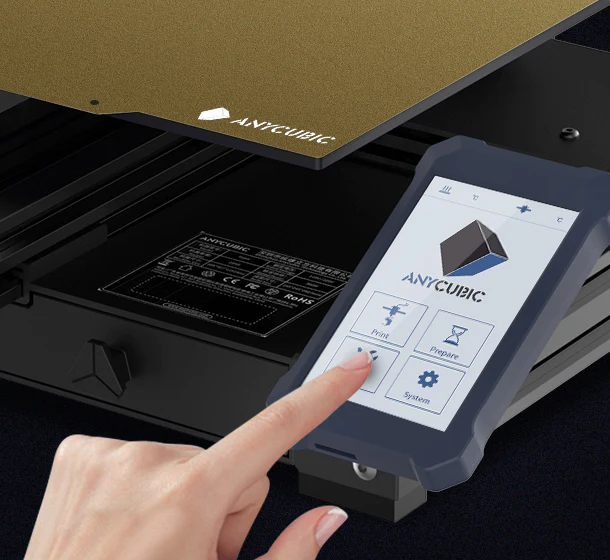

Anycubic vyper has 4.3large-size touch screen
4.3" large-size touch screen

The screen features new UI interface, smooth and simple operation as well as English and Chinese switching. New UI; Large-size screen; Easy to operate.

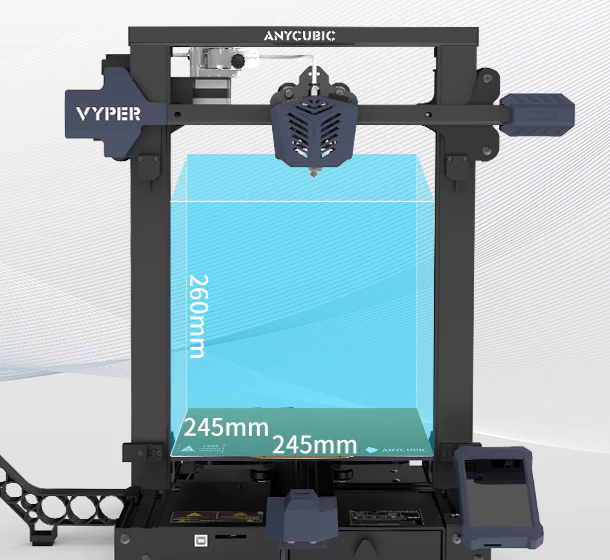

Anycubic vyper has Small body and big size
Small body and big size

With 245 * 245 * 260mm Print size, the Printer can meet your endless creative needs.


Anycubic vyper has a brand new core
A brand-new core

M3 chip; High-speed computing; Silent Printing; 32-bit main frequency: 72M; 8-bit main frequency: 16M.


Parts List


Anycubic vyper contain display screen

Display

Anycubic vyper contain Filament

Filament

Anycubic vyper contain filament holder

Filament-holder

Anycubic vyper contain nozzle

Nozzle

Anycubic vyper contain power cord

Power cord

Anycubic vyper contain screws

Screw(M5)-*14 3pcsn

Anycubic vyper contain screws M5

Screw(M5)-*45 4pcs

Anycubic vyper contain service card

SD Card

Anycubic vyper contain tool set

Tool set

Anycubic vyper contain USB cable

USB Cable

Anycubic vyper contain SD card reader

SD Card-Reader

Anycubic vyper contain SD card

SD Card

Anycubic vyper contain user manual

User Manual

Samples

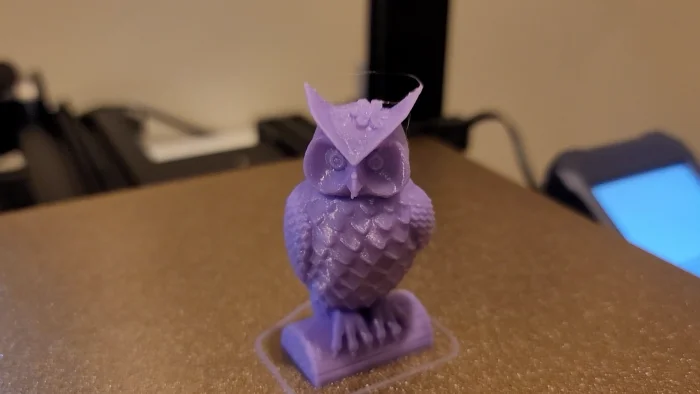

Anycubic vyper review-1

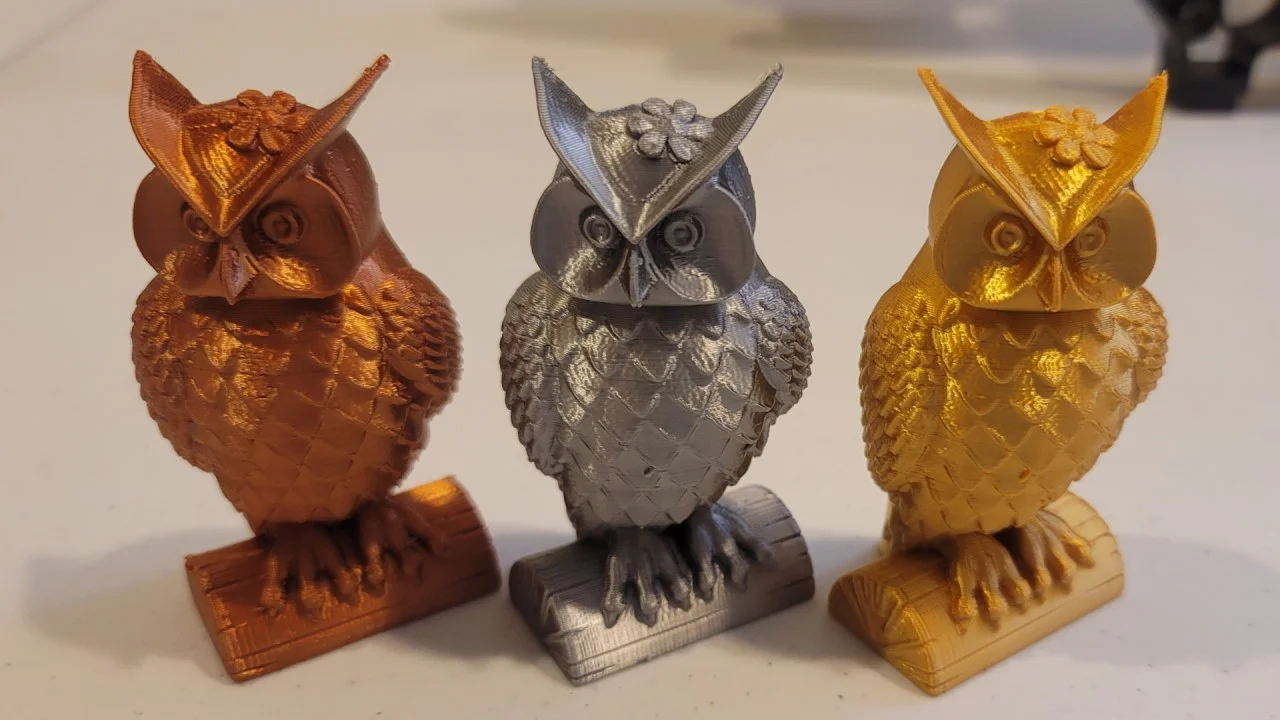

Anycubic vyper review-2

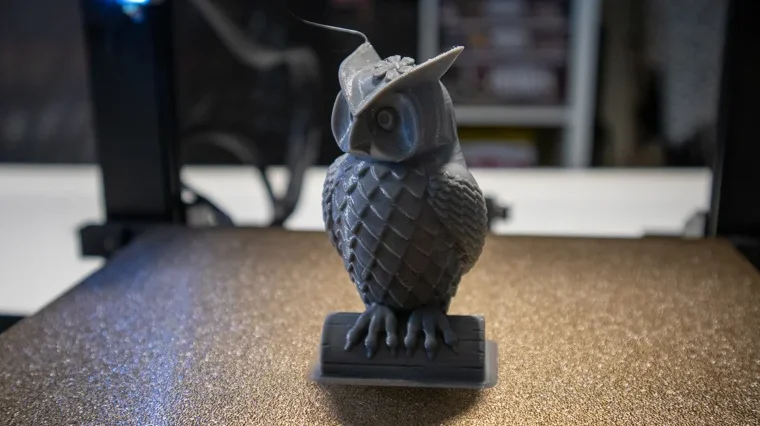

Anycubic vyper review-3

Anycubic Vyper Compatible Materials


PLA
PETG
ABS
Wood

Technical Specifications


Anycubic Vyper specs

Printing Technology

FDM (Fused Deposition Modeling)

Build Volume

245mm(L)×245(W)×260mm(H)

Print resolution

±0.1mm

Positioning accuracy

X/Y 0.0125mm; Z 0.002mm

Extruder number

Single; Nozzle diameter: 0.4 mm

Print Speed

<180mm/s (recommended 80-100mm/s)

Support filaments

PLA, TPU, ABS, PETG, Wood

Ambient Operating Temperature

8°C - 40°C

Operational Nozzle Temperature

max ≤260°C

Operational Hot Bed Temperature

max ≤110°C

Slicing Software

Cura; Output Formats: GCode

Input Formats

.STL, .OBJ, .AMF

Connection mode

Trans-flash Card; USB cable(expert users only)

Input voltage

100V/240V AC, 60/50Hz

Output voltage

24V/14.6A(350W)

Machine size

508mm×457mm×516mm

Machine weight

~10kg
