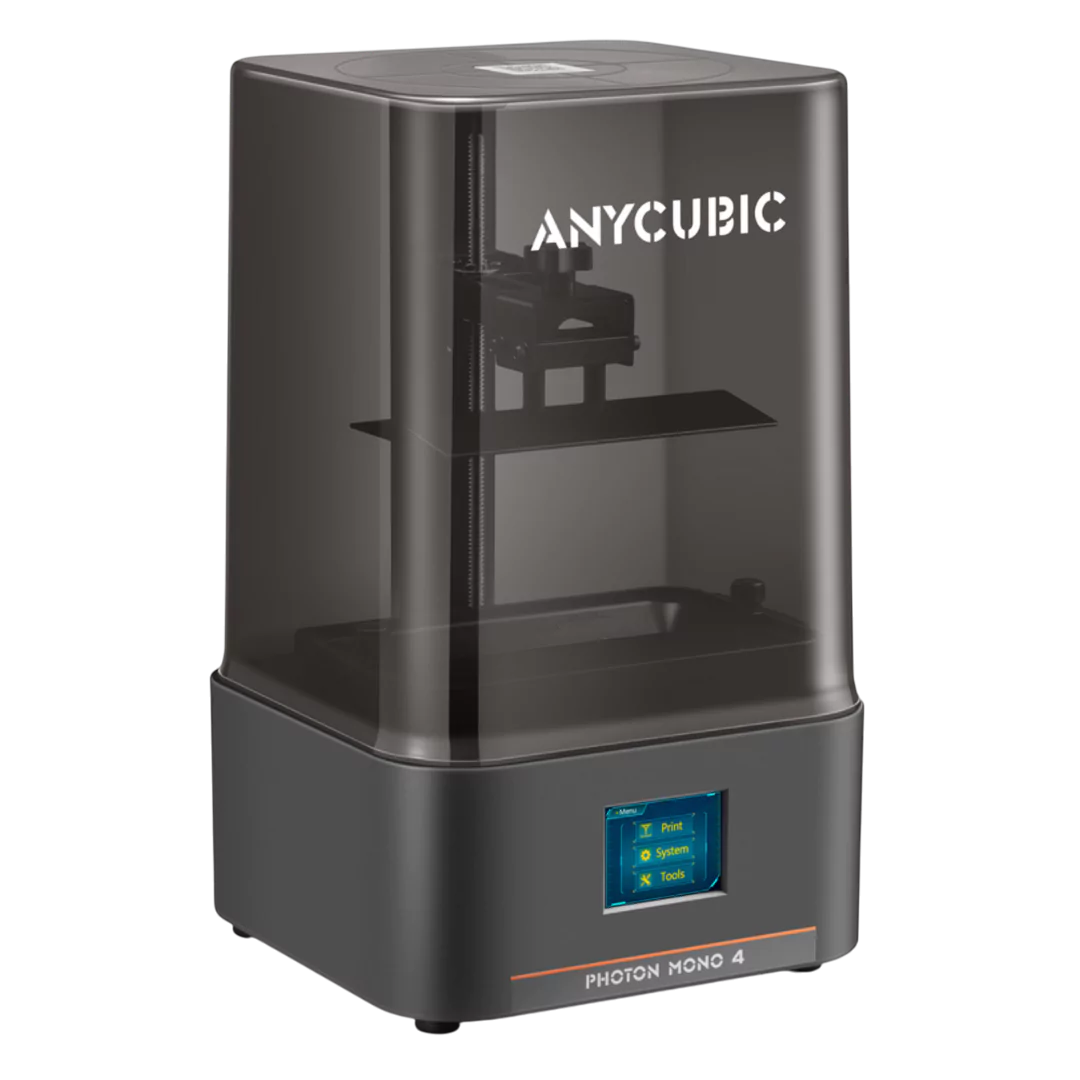

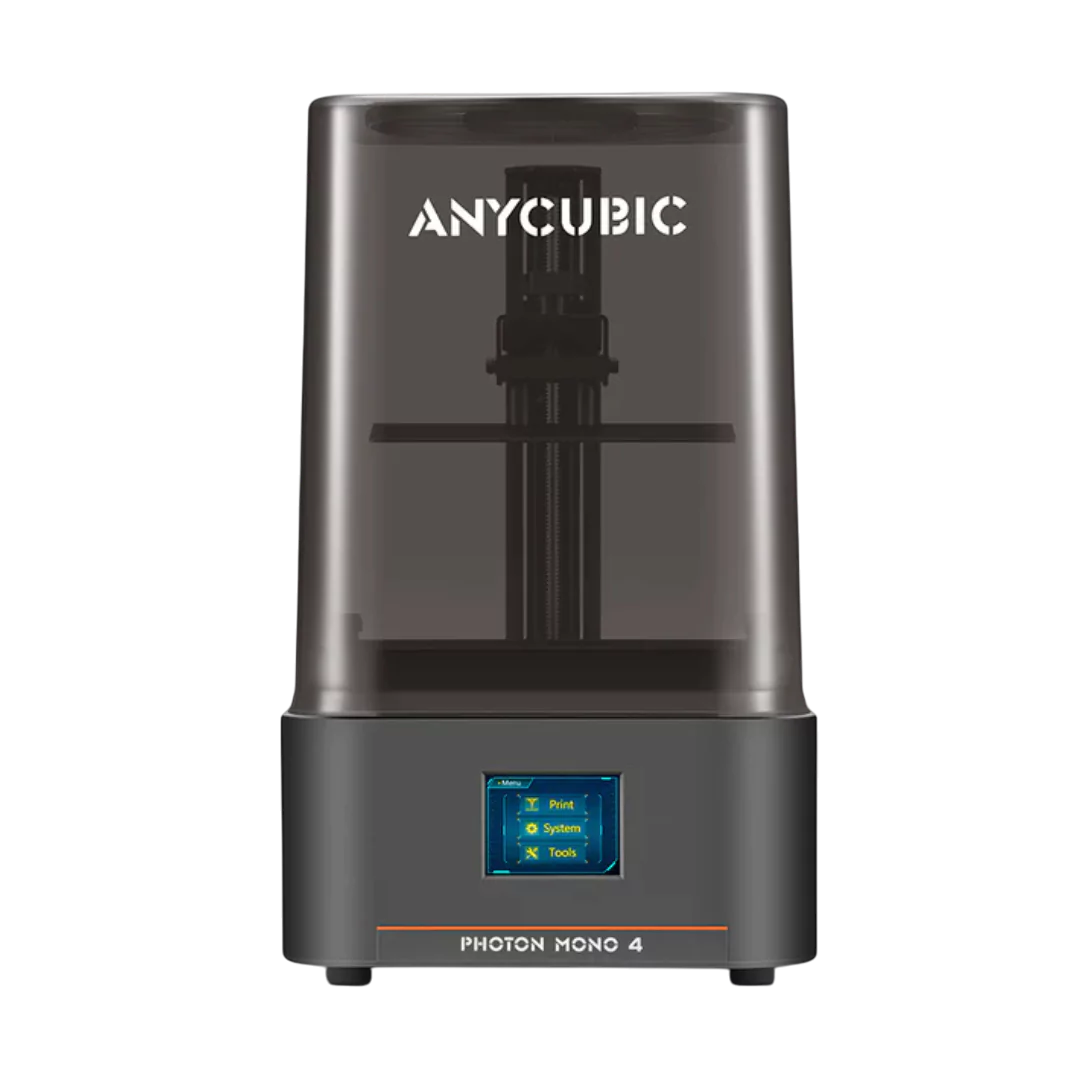

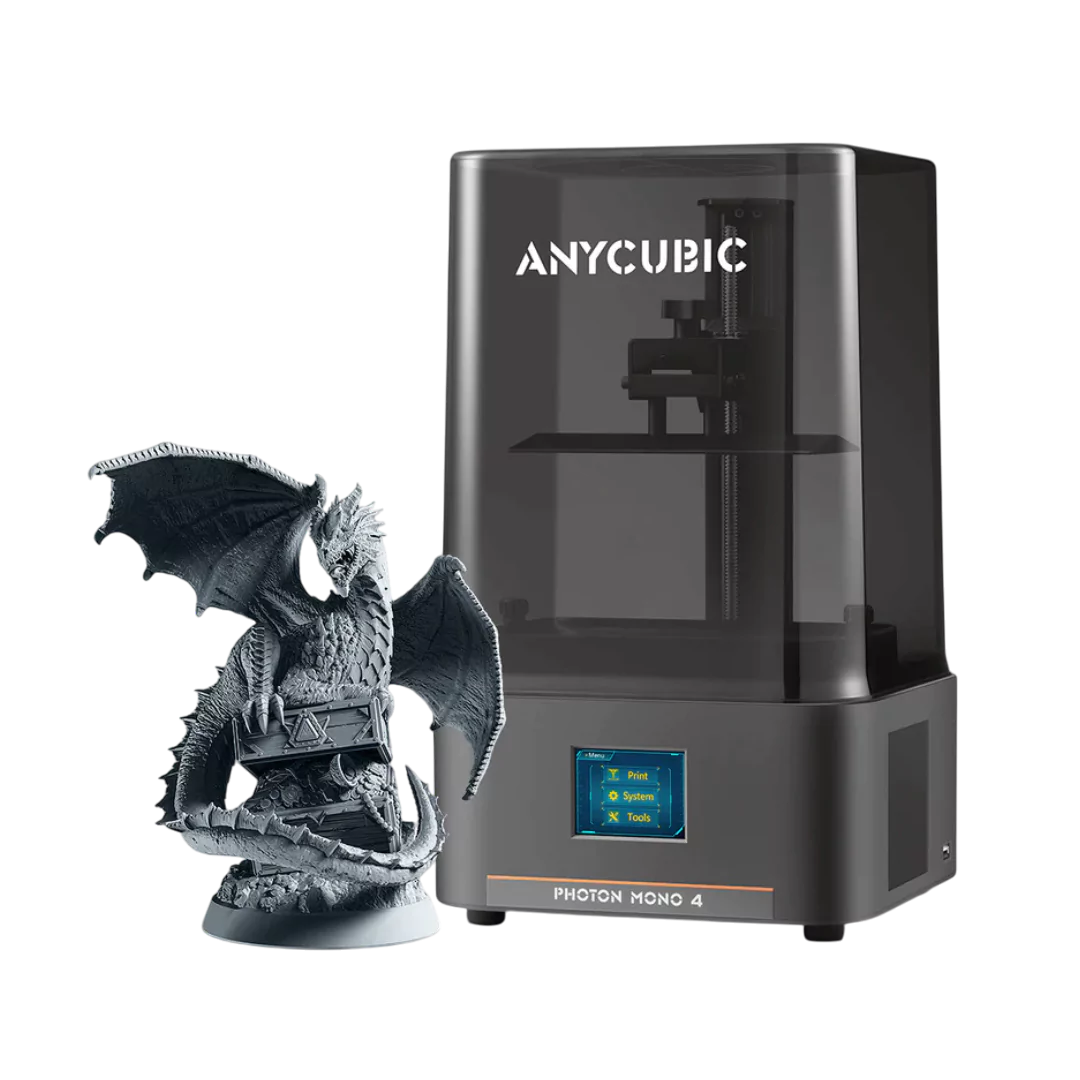

An Entry-level Resin 3D Printer
Experience high-precision resin printing with the Anycubic Photon Mono 4 3D Printer, featuring an ultra-sharp 10K resolution, a 7" HD screen, and the advanced LighTurbo light system. This entry-level printer delivers exceptional detail and fast printing speeds up to 70mm/h. It's designed for makers who value performance, reliability, and user-friendly features—all in a compact and efficient machine. Ideal for producing intricate models, household items, and more with stunning accuracy.

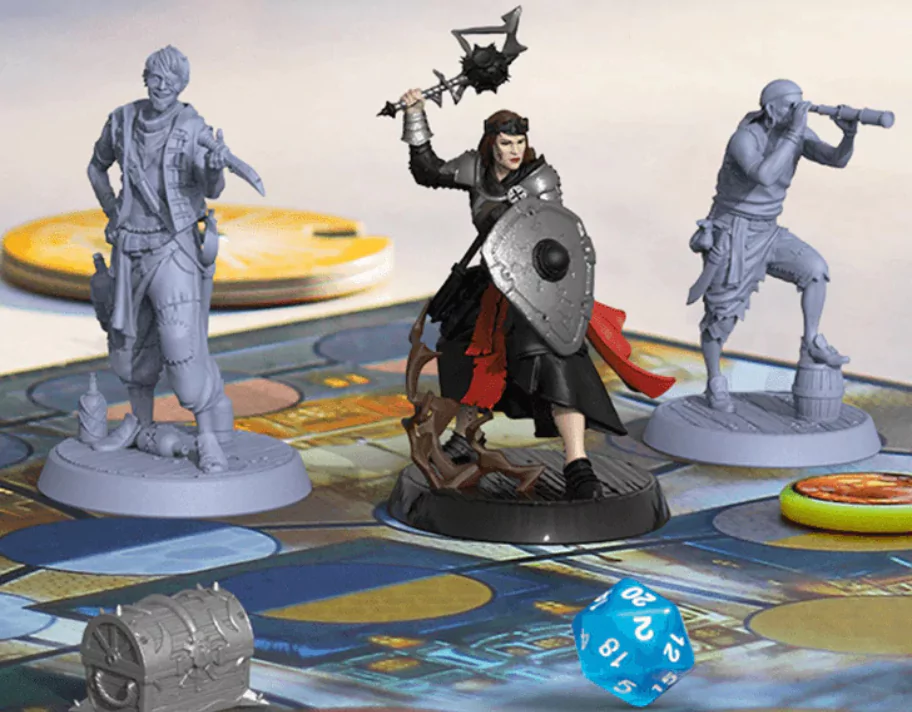

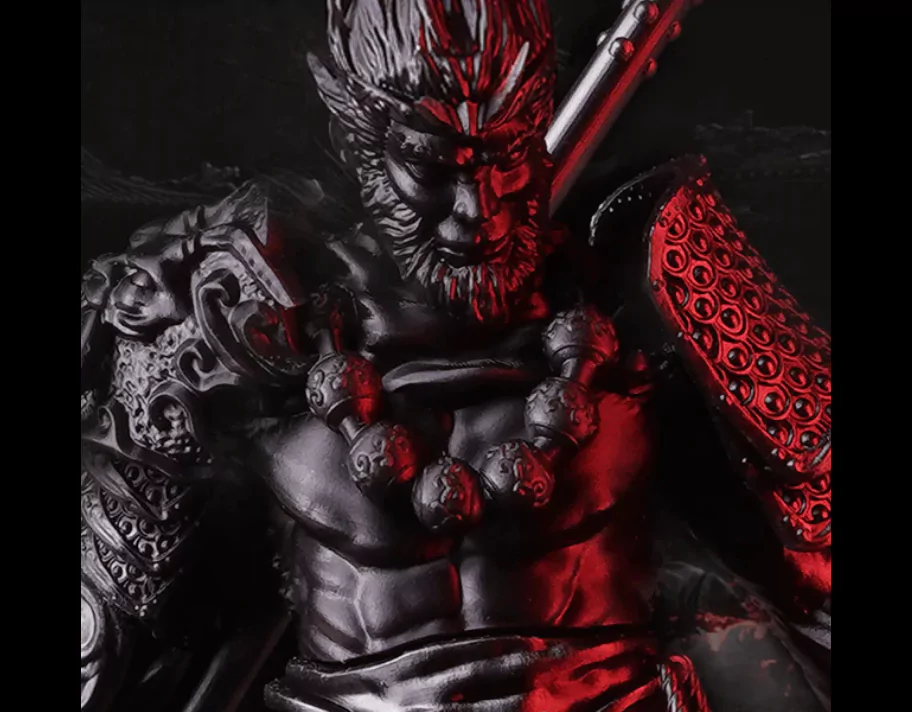

With a stunning 9024×5120 resolution and 17×17μm pixel size, the Photon Mono 4 achieves 105% higher accuracy than its predecessor. Whether you're printing miniatures or intricate parts, this precision unlocks sharper edges, richer textures, and remarkable detail in every print.

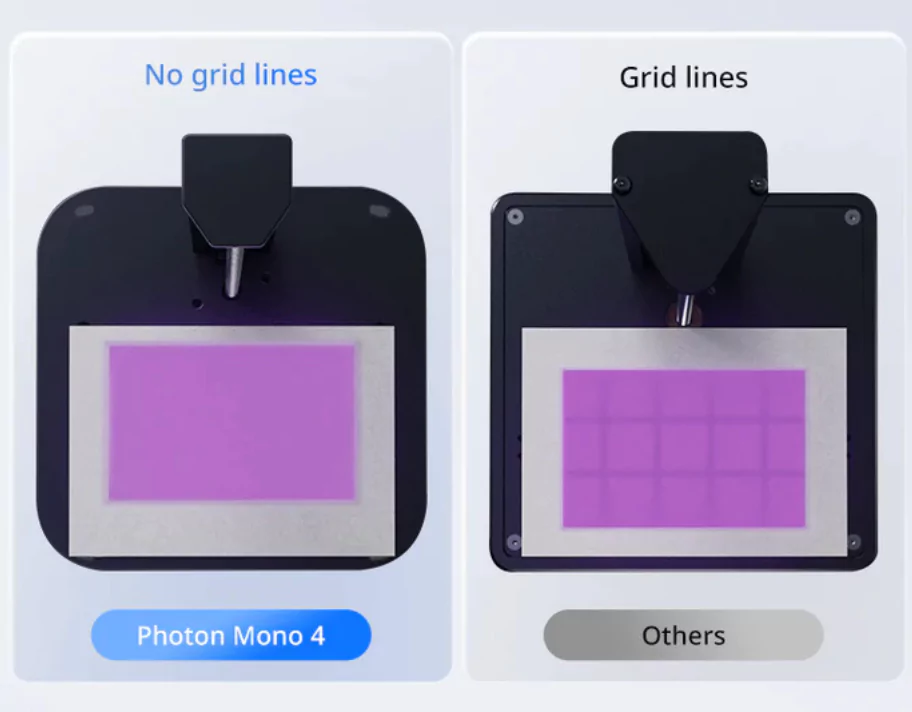

Thanks to Anycubic’s trusted LighTurbo matrix light source, the Photon Mono 4 offers single-layer exposure times as low as 1.5 seconds. Expect smoother surfaces, minimal raster lines, and consistently balanced curing—giving your models the clarity they deserve.

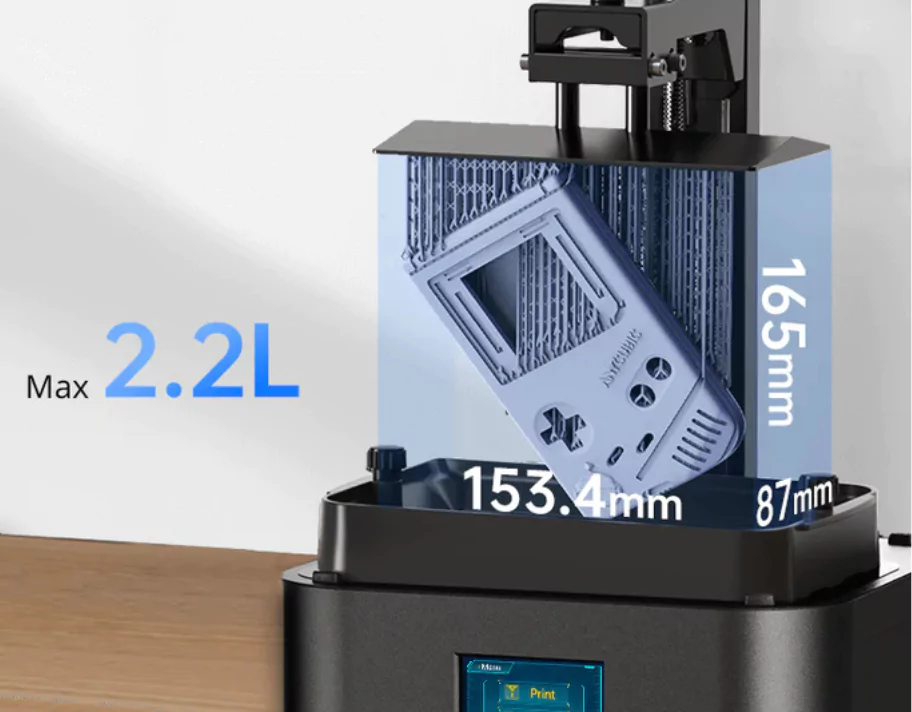

With a 153.4 × 87 × 165 mm printing space, the Mono 4 can handle everything from daily tools to detailed collectibles with ease. Ideal for users who want flexibility without sacrificing resolution.

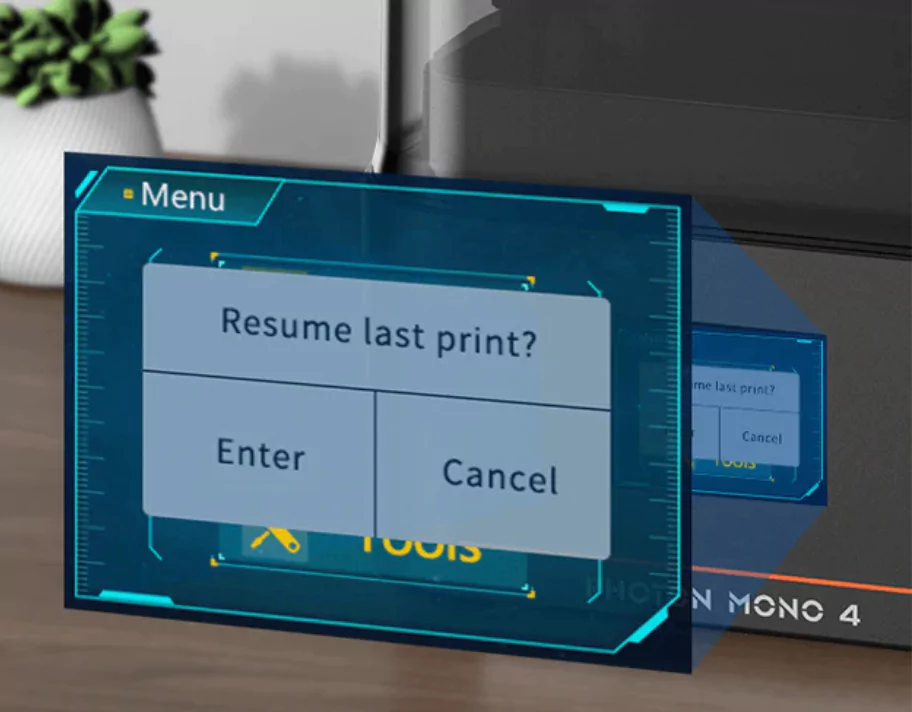

Unexpected power outage? No worries. The Mono 4 is equipped to resume printing right where it stopped, helping reduce waste and saving time on restarts.

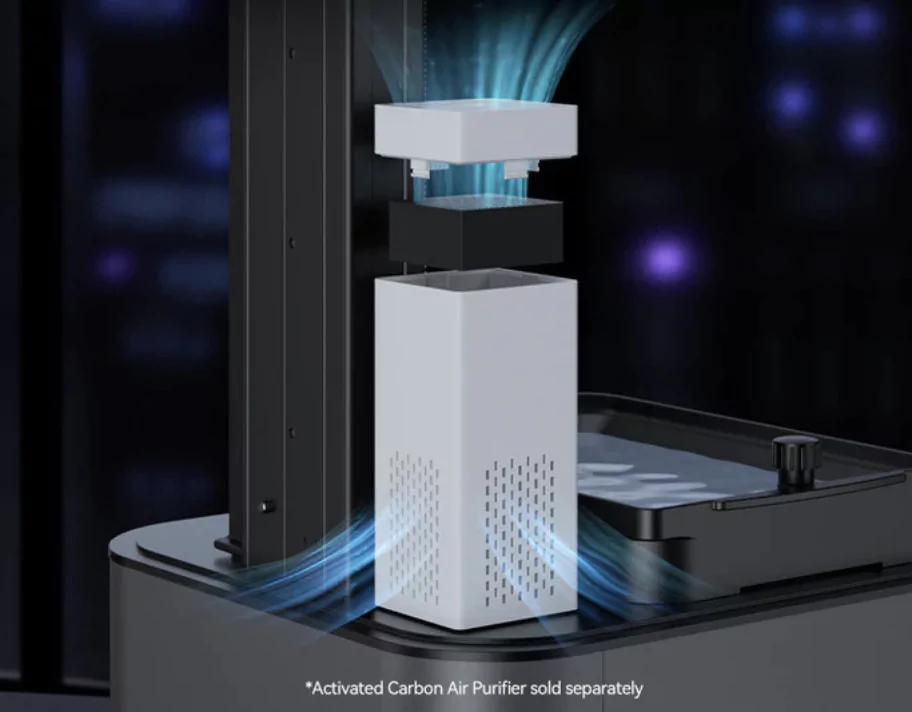

The 18mm thick high-density filter, weighing 17g, actively absorbs and neutralizes odors during printing—perfect for enclosed workspaces. (Air purifier sold separately.)
Printing Volume
153.4 x 87 x 165 mm
Package Dimensions
480 x 300 x 300 mm
Printing speed
Standard Resin 0.1mm layer height: ≤50mm/h peek speed;
High Speed Resin 0.1mm
layer height: ≤70mm/h peek speed
Machine leveling
4-point Manual Leveling
LCD Screen Size
7-inch 10K Mono LCD
Light Source
Parallel matrix upgrade light source
XY Resolution
17*17μm

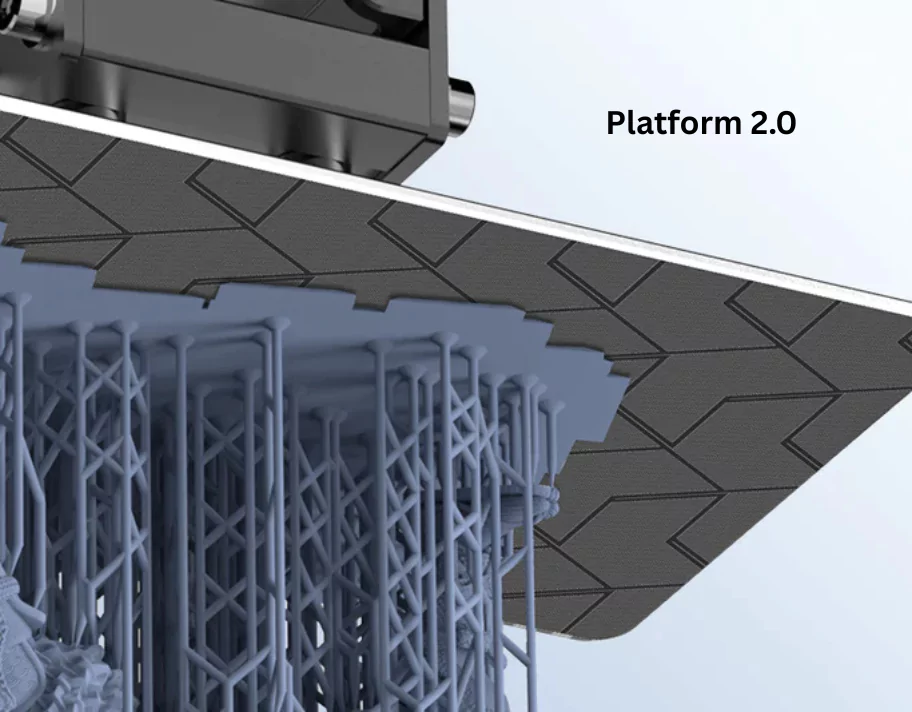

Build Platform
Laser-engraved Platform 2.0
Operating Screen
2.8" TFT Touch-control
Slicing software
Photon Workshop
Material
Supports most resins on the market (water-washable, standard, bio resin, plant-based, etc.)
File Transfer
USB
Machine Weight
4 Kg
SoftwareLight Uniformity
80-90%
Release Film
FEP
Light Intensity
~3000μW /cm²
Layer Height
0.03-0.15mm
