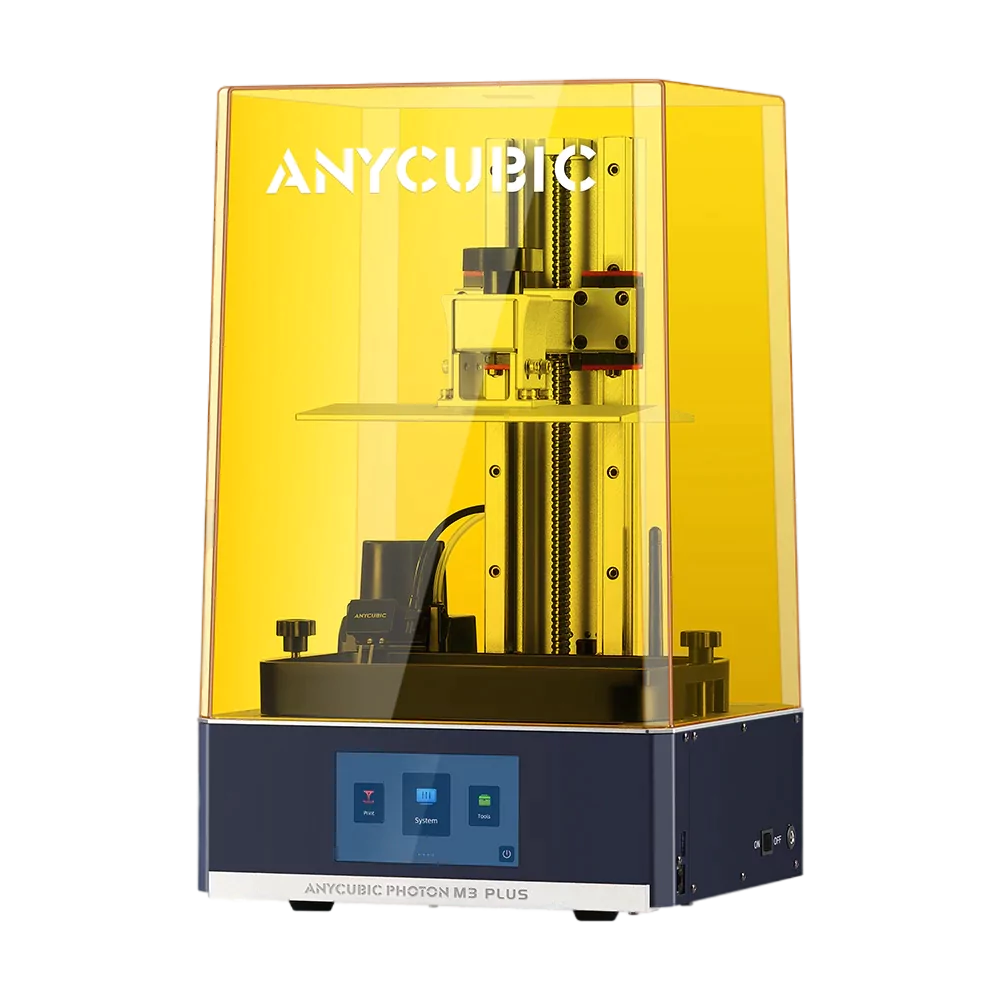

Anycubic Photon M3 Plus 3D Printer
Unleash Your Creativity!
Unleash Your Creativity!
The Anycubic Photon M3 Plus 3D Printer is a high-precision resin-based 3D Printer that is capable of producing highly detailed and intricate prints. It uses a combination of LCD masking and UV LED curing technology to create layers of resin that solidify into a finished object. With a large build volume and a range of advanced features, the Photon M3 Plus is an ideal choice for hobbyists, artists, and professionals looking to create stunning 3D Prints with exceptional detail and accuracy.
6K Monochrome Screen
34μm accuracy.
Anycubic LighTurbo
Strong light power.
Anycubic Cloud
One touch printing.
Laser-engraved Build Plate
Rest without worries.
The Printing volume of the Anycubic Photon M3 Plus 3D Printer is up to 180x163.9x102.4mm with a 7.6-inch high-quality monochrome screen.
Support for the LAN/WAN control modes "USB-A 2.0 / LAN / WAN" and "USB-A 3.0 / LAN/WAN". With only one tap on Anycubic Cloud, you may accomplish it regardless of file transfer or printing.

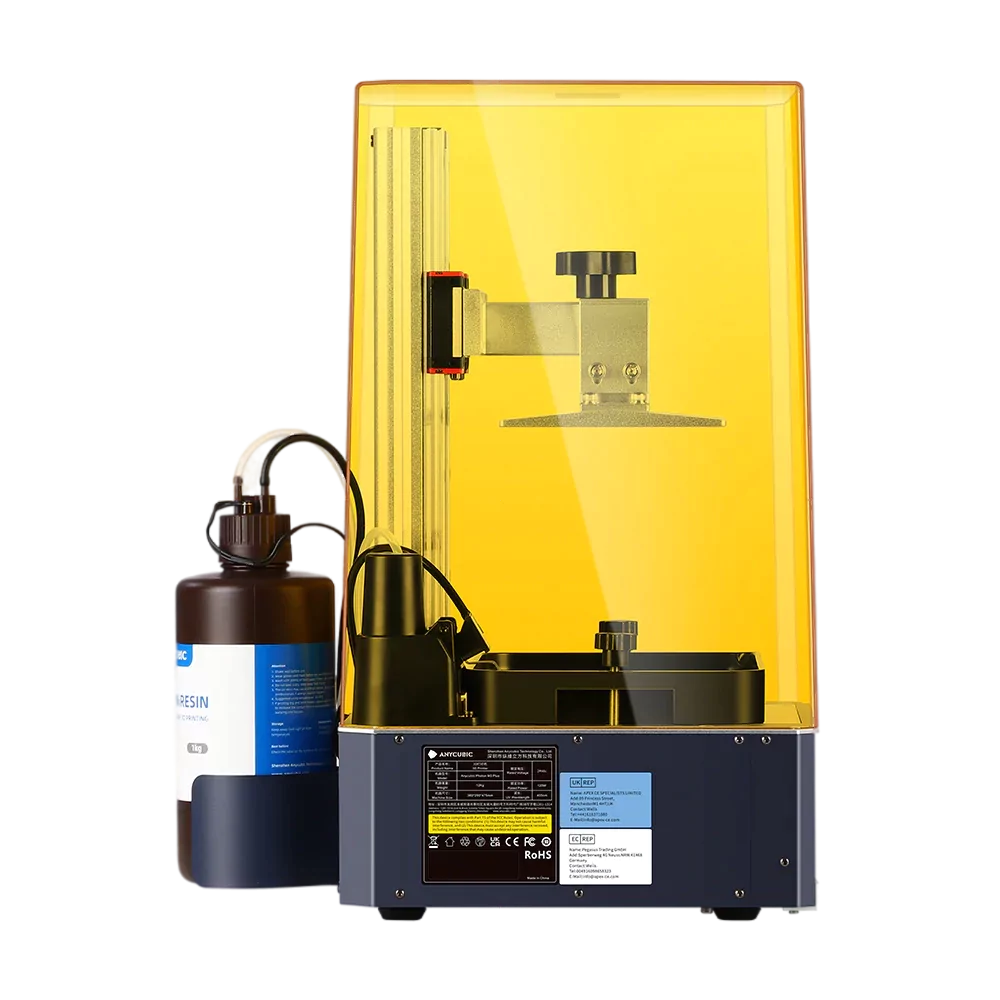

The new automatic feeding function automatically feeds the resin vat when there is insufficient resin and stops feeding when there is enough resin.
After multiple designs and tests, the laser engraving pattern considerably increases the adhesion at the bottom of the platform and improves the printing success rate.
The self-developed Anycubic LighTurbo has matrix-arranged LCD beads that produce powerful light power, allowing for high-speed printing.
The screen contrast ratio may reach 350:1, which is 75% greater than that of competing competitors (200:1), significantly increasing printing details.
The maximum printing speed is 100mm per hour. Printing a 120 mm high model takes only 1.2 hours, saving 1.8 hours compared to rival goods' 3 hours.
The printer includes an extra anti-scratch film to preserve the expensive 9.25-inch 6K screen and make printing more comfortable.
The printer has a 5-inch LCD touch screen that is very sensitive to response and brighter in color, providing a better user experience.
User manual
Funnel
Tool set
Scraper
Resin vat
Platform
Power cord
WIFI
Mask
Glove
Screws
USB memory
Screen protector
Levelling paper
Auto-feed unit
Exposure screen
9.25 inch monochrome screen
Printing volume
5.9 liters / 199.1 ounces
Print size
245 x 197 x 122 mm
Printing platform
Laser engraved aluminum alloy platform
Light source
Parallel matrix light source (40 LED beads)
Machine leveling
4-point manual leveling
Printing accuracy
6K (5,760 x 3,600 pixels)
Printing speed
≤100 mm/hour
Control panel
5-inch resistive touch screen
Data input
USB-A 2.0 & 3.0 interface
Power supply
On/Off switch
Rated power
144W
Machine dimensions
475 x 360 x 290 mm (HW)
Machine weight
12 kg
