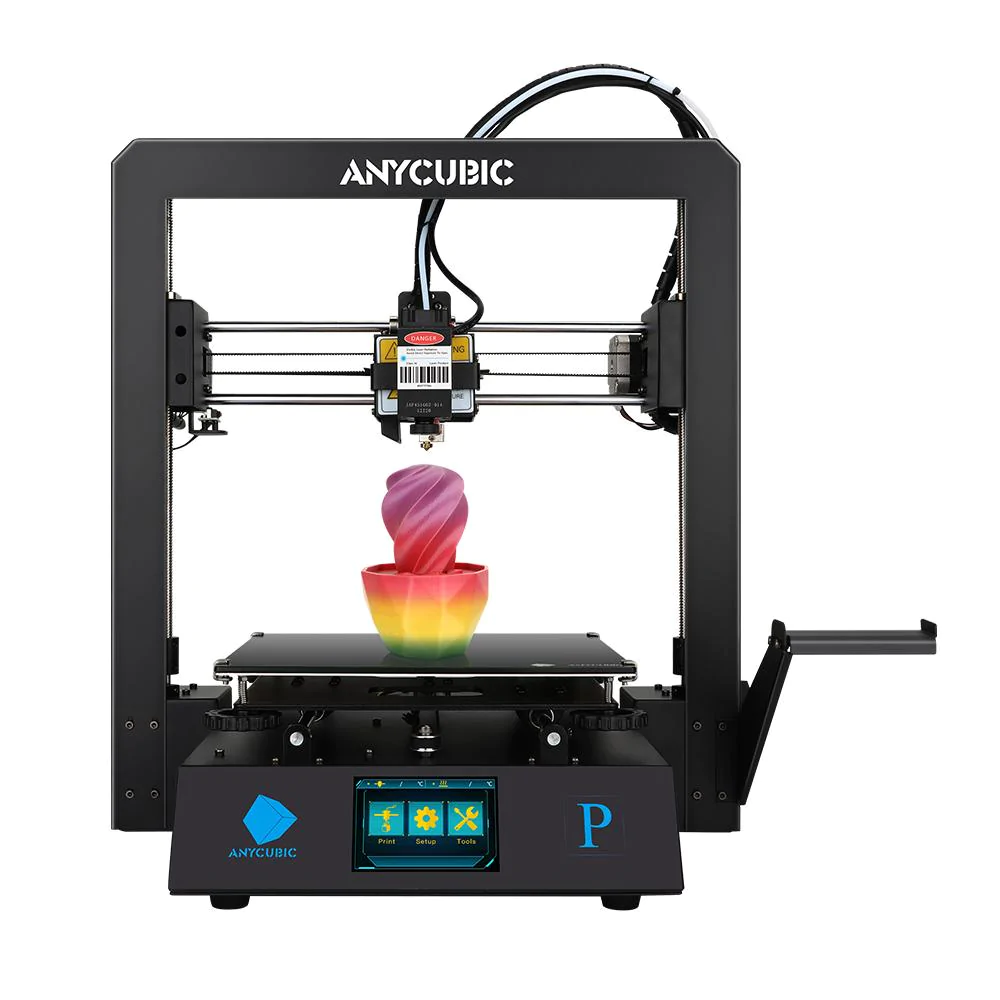

Anycubic Mega Pro 3D Printer
Maximize Your Imagination
Maximize Your Imagination
Anycubic Mega Pro 3D Printer comes with 3D Printing and Laser engraving, Auto resume function, Smart auxilary leveling, Large Printing size 220 x 220 x 205 mm and engraving size 220×140 mm². Detection of Material Interruptions & Continuous Printing , the 3D Stereo Printer will automatically pause Printing and activate the smart reminder when the filament runs out. With just one tap, the filament may be reloaded. Anycubic FDM 3D Printer will still display a whole model to you if there is a power outage while it is in use, all you have to do is decide to continue Printing when the power comes back on.

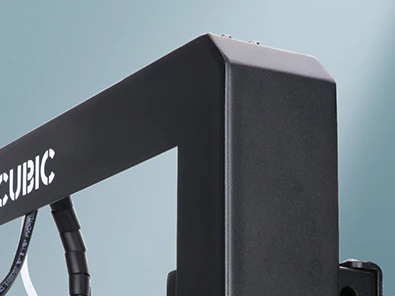

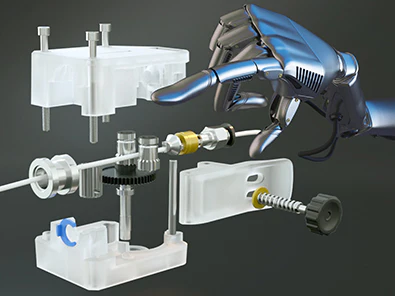

Independent, expert research and development of a high-strength extruder prevents uneven output, drastically lowers the risk of nozzle clogging, and can perform continuous, high-intensity flexible Printing. The entire machine body's metal construction efficiently stabilises the apparatus and enhances Printing precision and quality.
With a modular design, assembly may be completed quickly and easily.

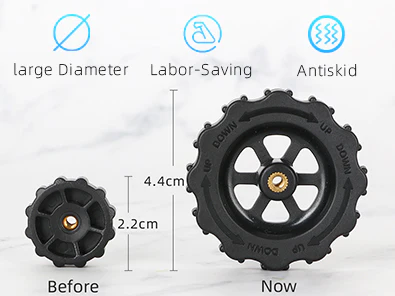

60% less effort than usual leveling
2X times larger than usual diameter

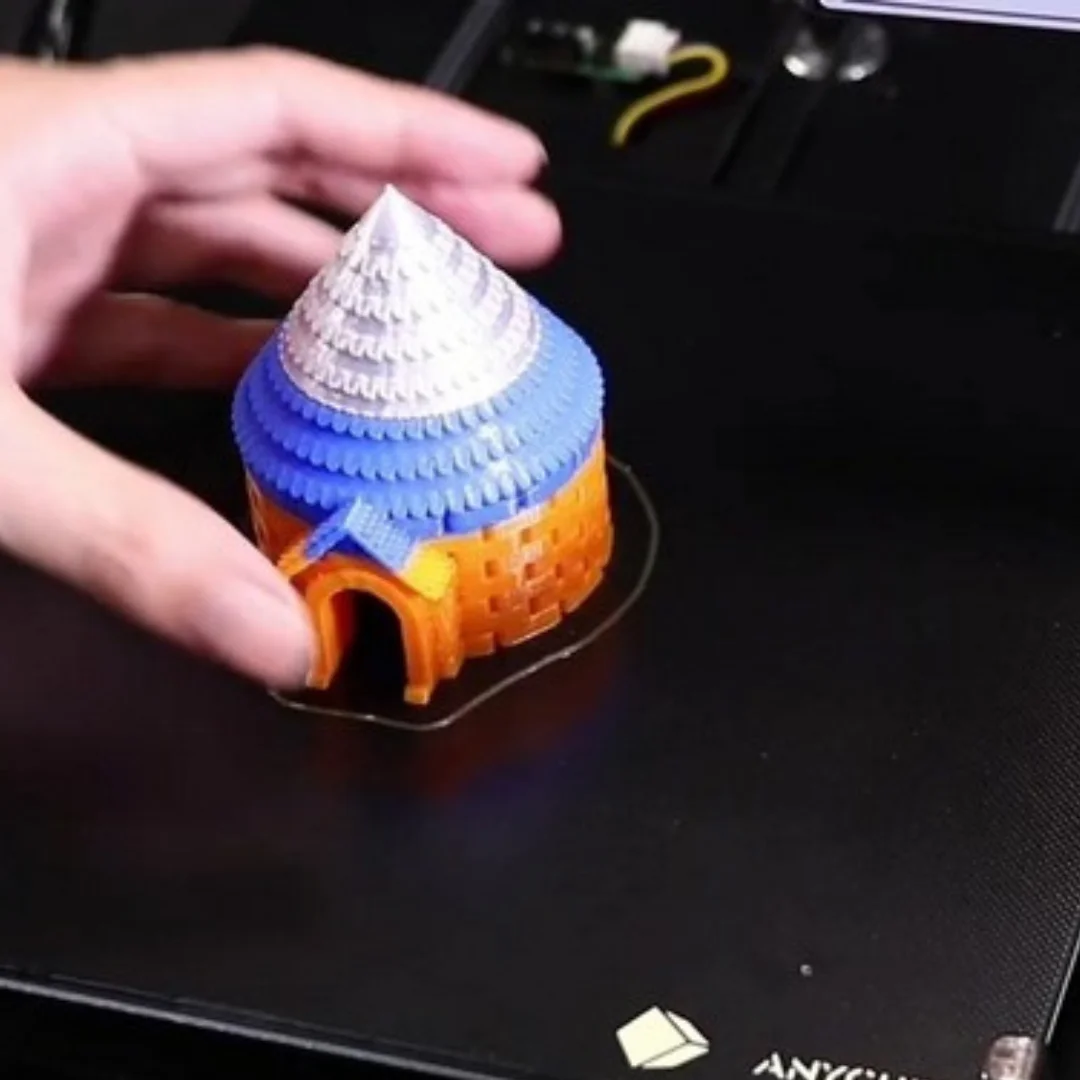

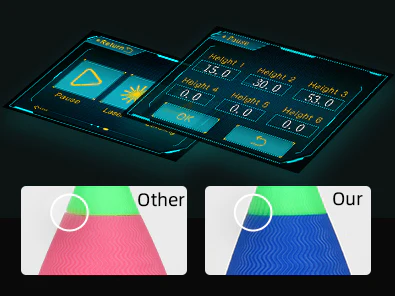

The 3D Printer uses a new generation of clever algorithms that enable multi-color Printing and the pausing of a defined layer.

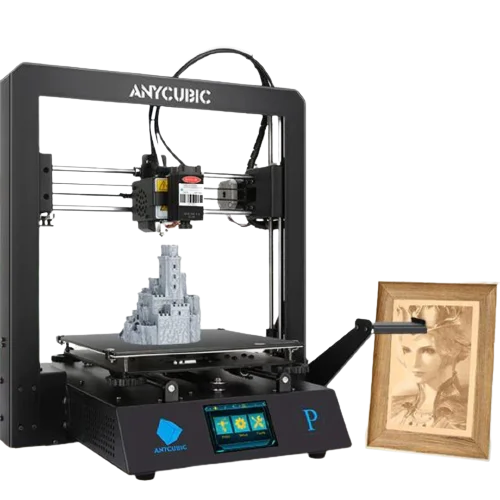

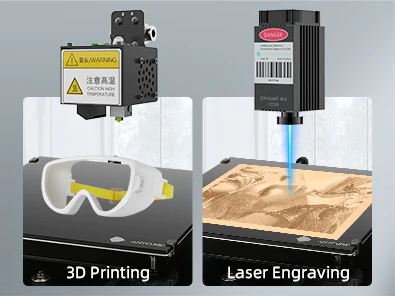

The Anycubic MEGA PRO 3D Printer now includes a newly added laser engraving feature that can be used to engrave wood, paper, leather, and other materials. This feature allows you to meet a variety of creative needs by both 3D Printing and high-precision engraving.

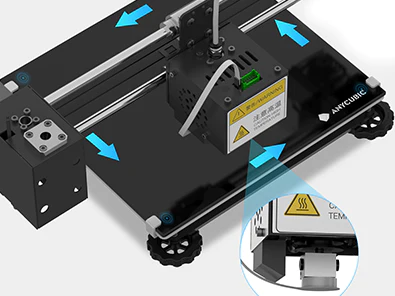

To accurately change the height of the Print head, level the Printing platform automatically and sound an alarm as it does so.
Plier
Screw(M5)*8
Scraper
Tool set
Card reader
Laser head
SD card
User manual
Protective glasses
Power cord
USB cable
Power adapter
Leveling module
Service card

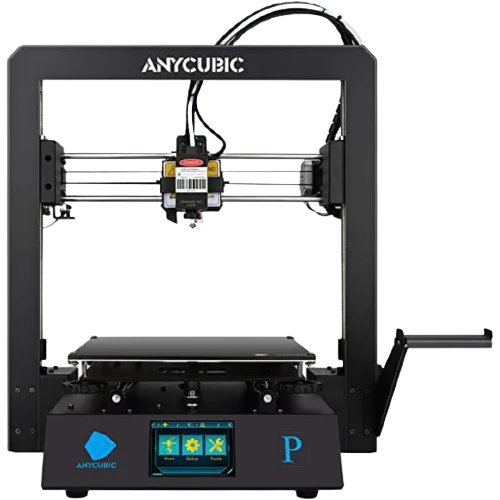

Printing Technology
FDM (Fused Deposition Modeling)
Build Volume
220 x 220 x 205 mm
Layer Resolution
0.05-0.3 mm; Travel Speed: 100mm/s
Positioning Accuracy
X/Y- 0.0125mm；Z- 0.002mm
Extruder Quantity
Single; Nozzle Diameter: 0.4 mm
Print Speed
20~100mm/s (suggested 60mm/s)
Supported Materials
PLA, TPU, etc
Ambient Operating Temperature
8°C - 40°C
Operational Extruder Temperature
max 260°C
Input Formats
.STL, .OBJ,.DAE, .AMF
Connectivity
SD Card; USB cable(expert users only)
Filament Sensor
Yes; Input Rating: 110V-220V AC, 50/60Hz
Printer Dimensions
405X410X453mm³; Net Weight:~15kg;
Image Format
bmp
Engraving Size
220×140 mm²
Engraving Mode
Bitmap
Rated Power
1500mw
Pixel Size
0.05-0.4mm (suggested 0.1mm)
Recommended Laser Intensity
Brown paper - 15%, Wood - 25%
Laser Height
1-100mm（suggested 50mm）
Mirror Image
The default value is recommended
Supported Materials
Leather, Paper, Wood, etc..
